Rockfon® Mono Acoustic

Perfect for ceilings and walls, the innovative monolithic surface delivers outstanding acoustic comfort and fire protection
Order Sample
Back

Color

Color Group

All
All
Greys & Blacks
Yellows
Browns & Beige
Blues
Reds & Pinks
Greens
Whites

White - Elegant render

ColorWhite - Elegant render
Color GroupWhites
Light reflection87

Order Sample

Quantity:
1

Edge

Select an edge
Select an edge
TE Elegant Render
White - Elegant render

Stone wool tile

White - Elegant render

87 % Light reflection

More Info

Order Sample

Quantity:
1

Edge

Select an edge
Select an edge
TE Elegant Render
White - Elegant render
01
Stone
02
Plaster
03
Gravel
05
Zinc
06
Concrete
08
Anthracite
09
Charcoal
10
Moon
12
Mint
13
Sandalwood
17
Mastic
18
Iron
20
Stucco
21
Chalk
22
Linen
23
Hemp
24
Cork
25
Earth
26
Clay
28
Ebony
30
Sand
31
Sage
32
Eucalyptus
34
Seaweed
42
Fresh
47
Azure
48
Storm
49
Space
51
Mustard
71
Scarlet
74
Petal
75
Seashell
76
Coral

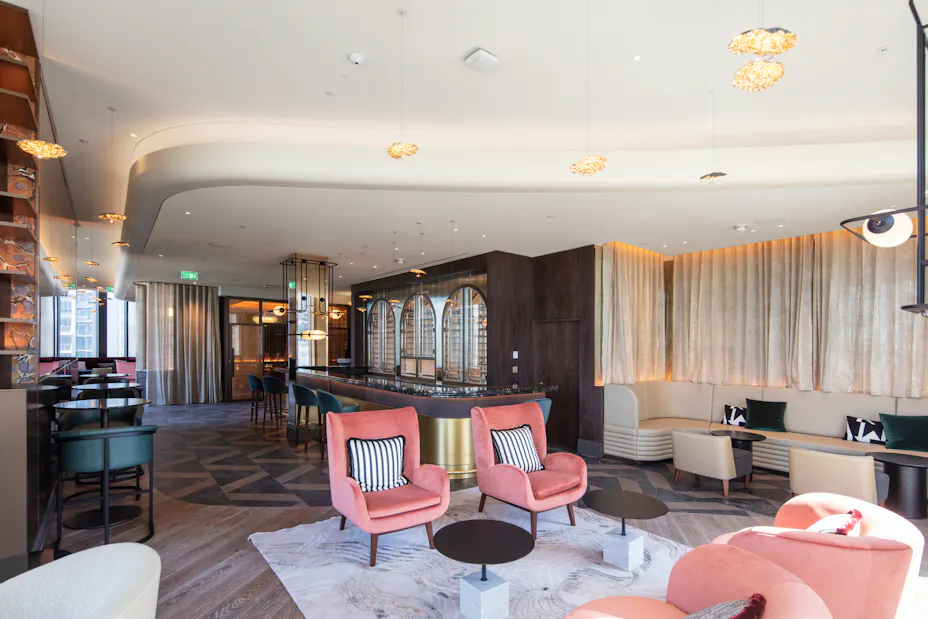

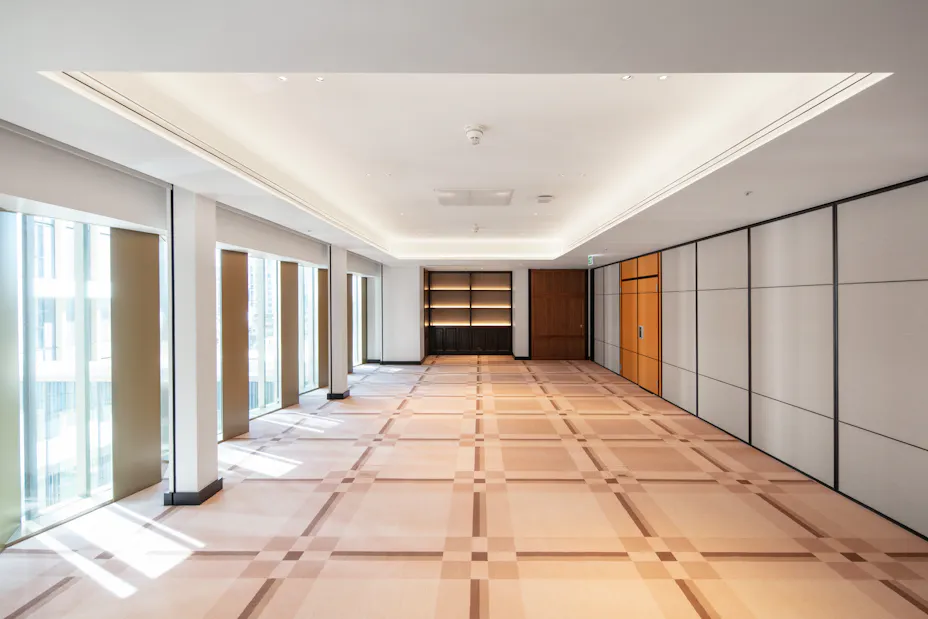

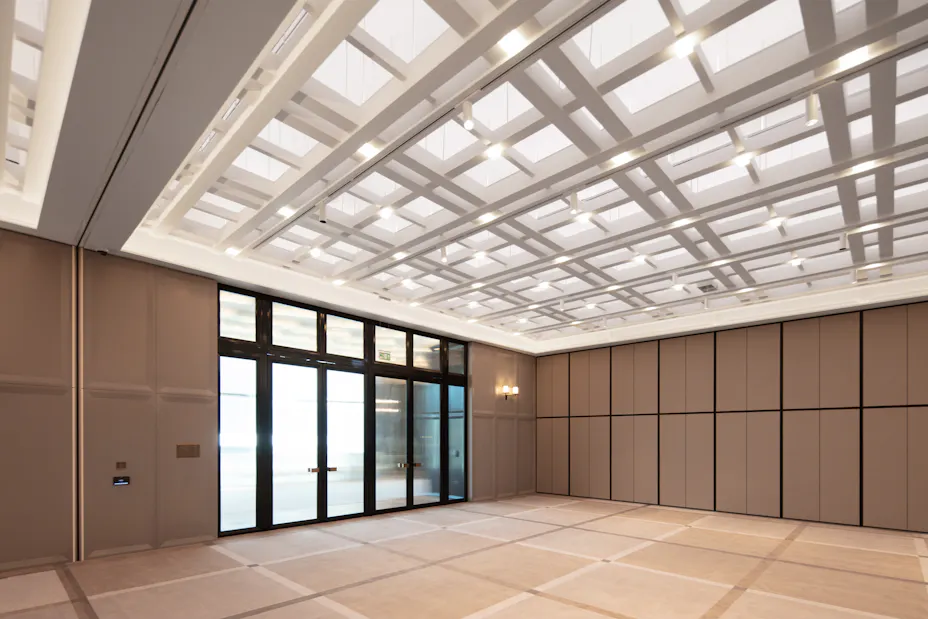

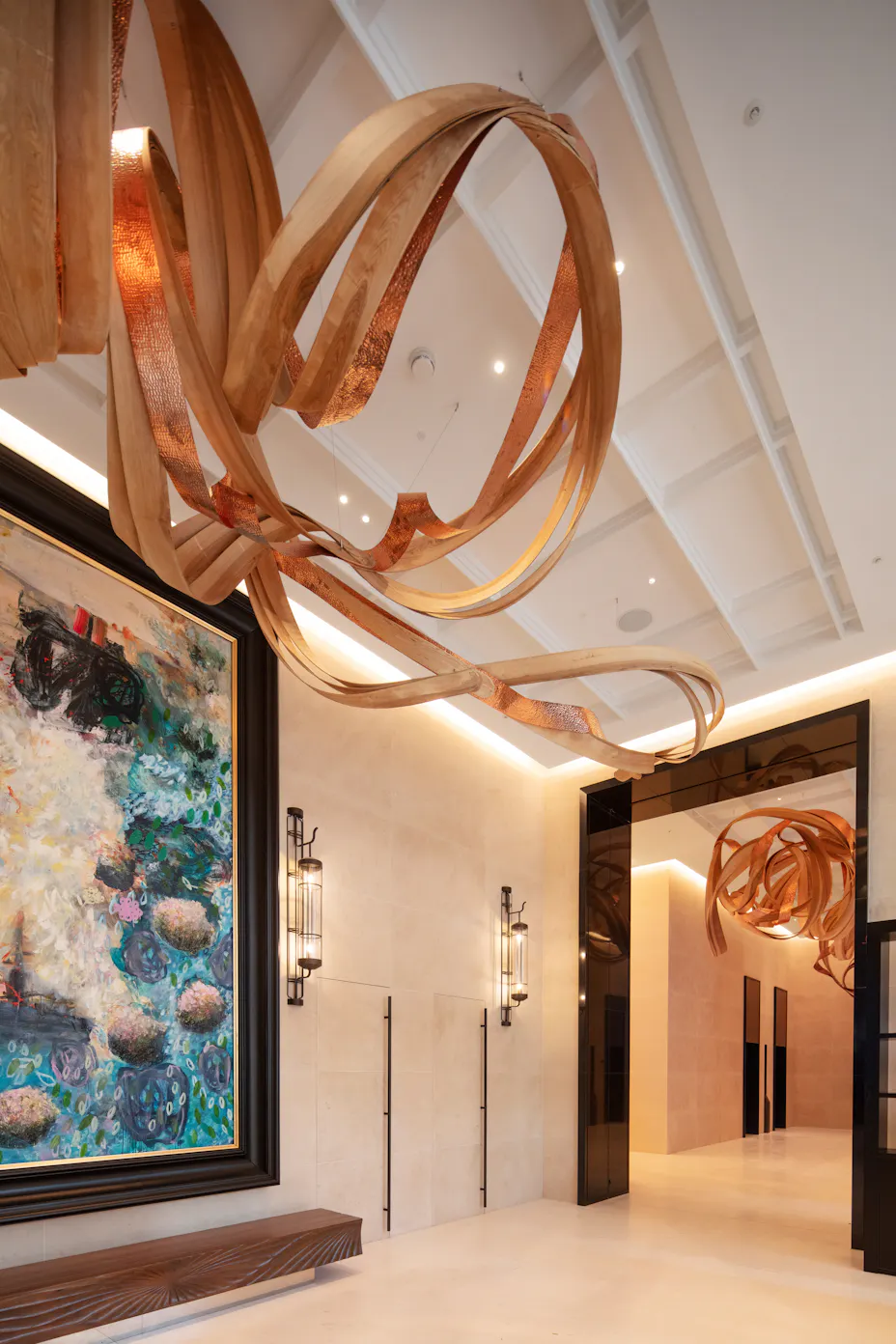

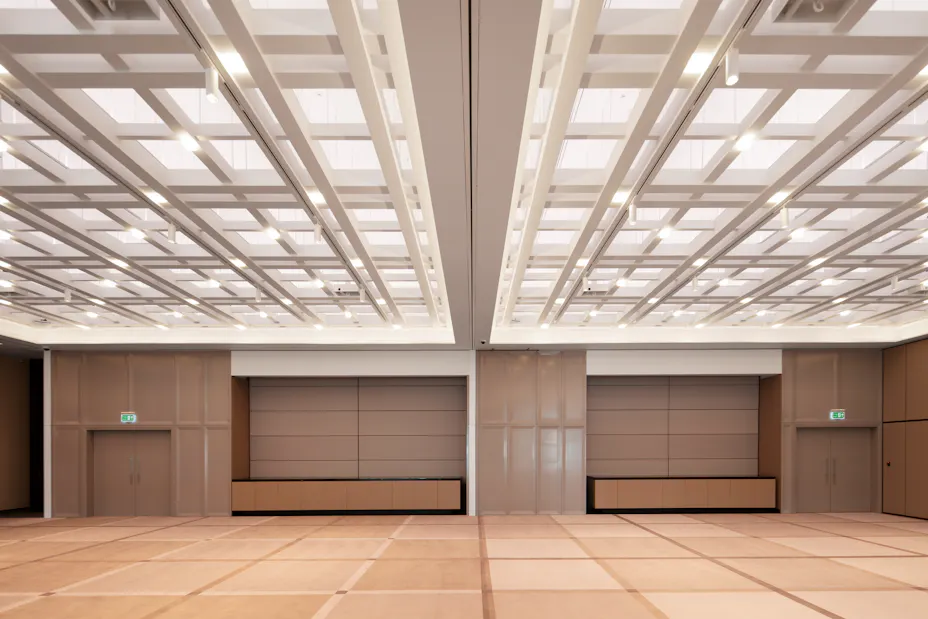

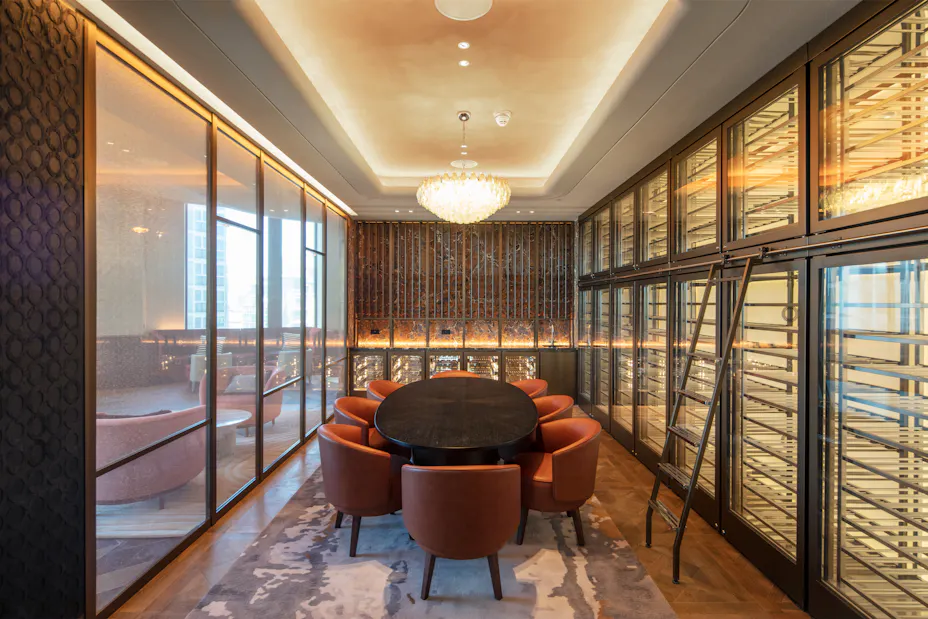

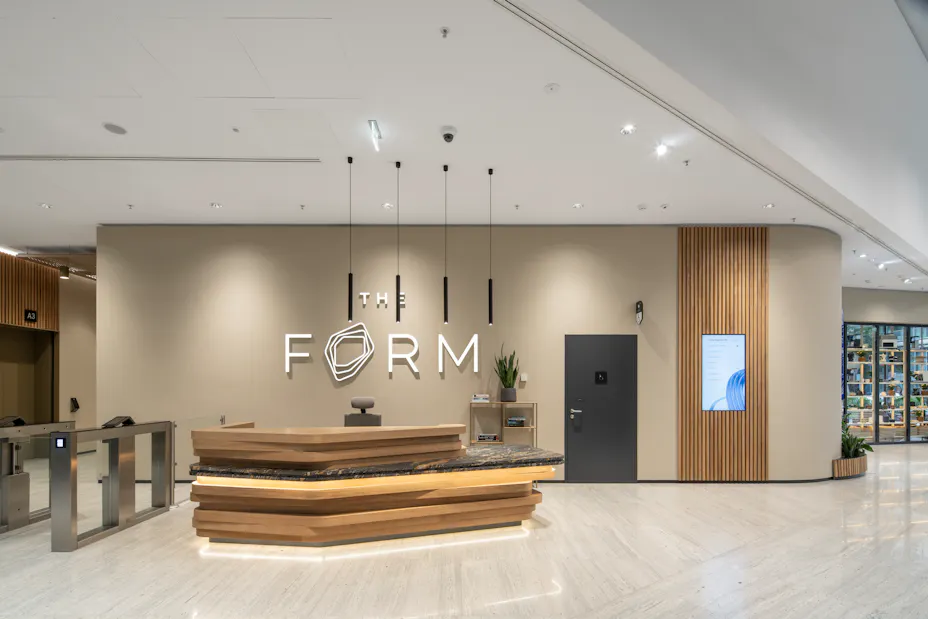

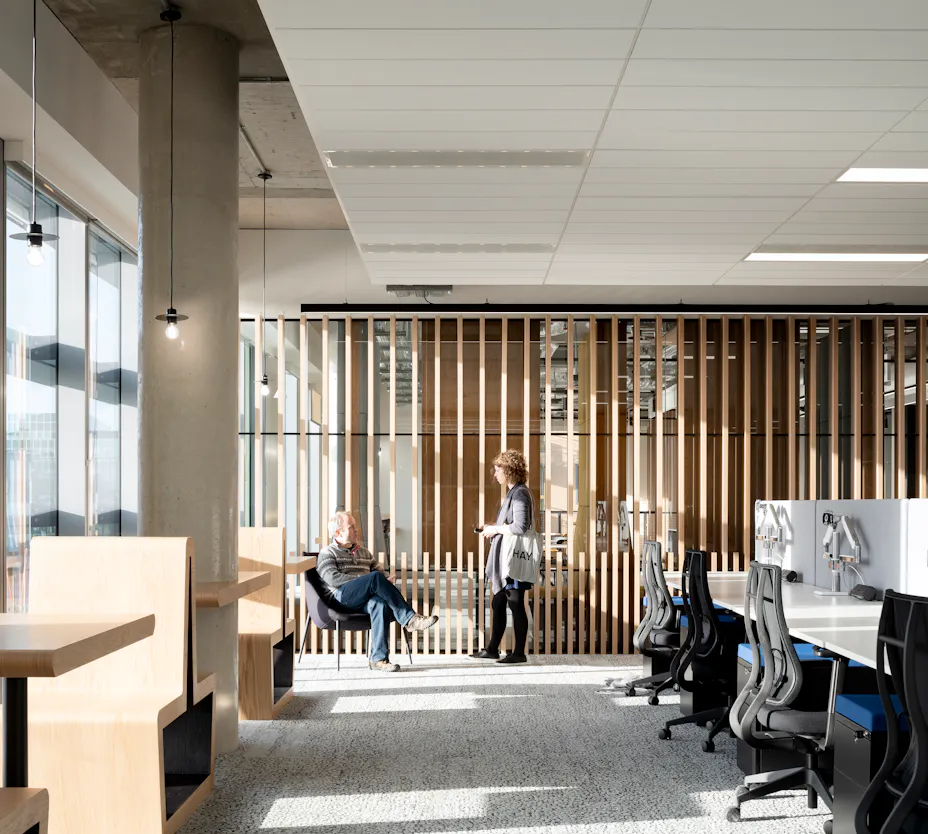

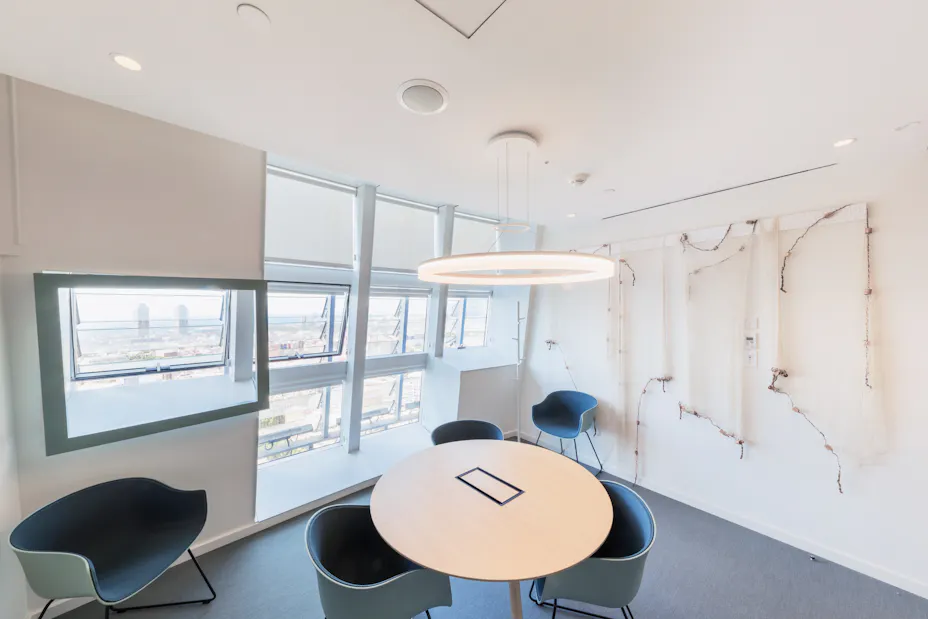

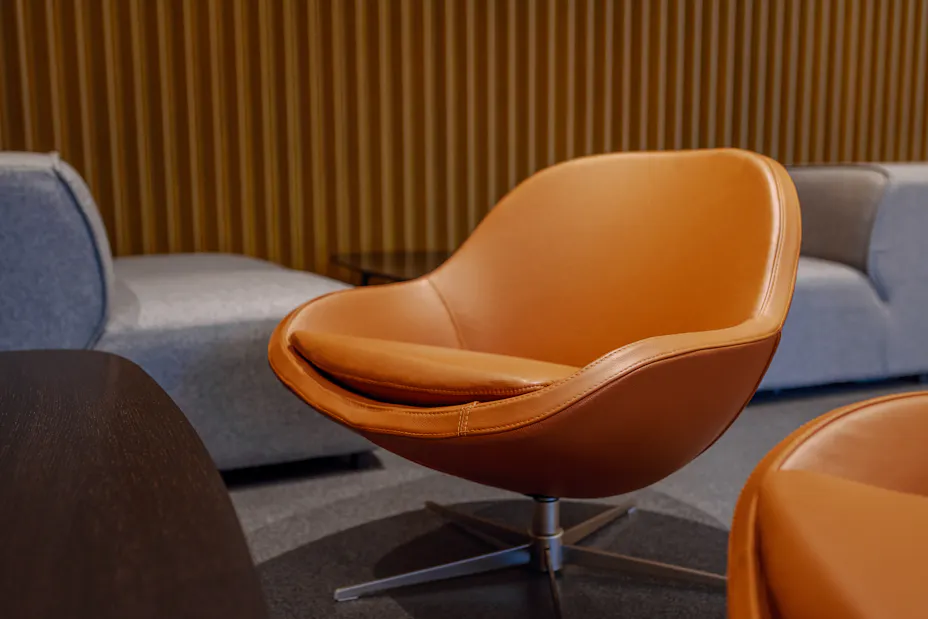

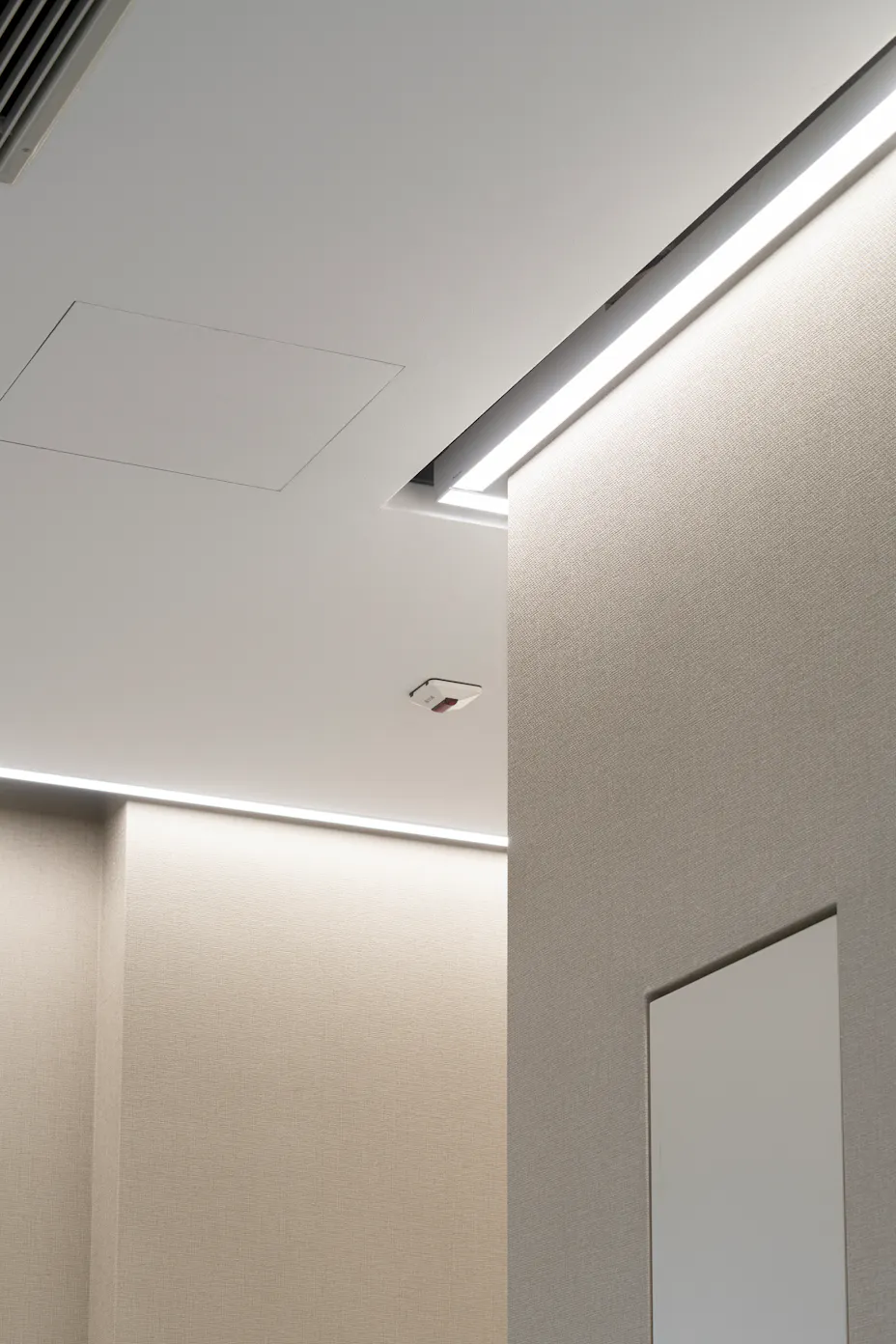

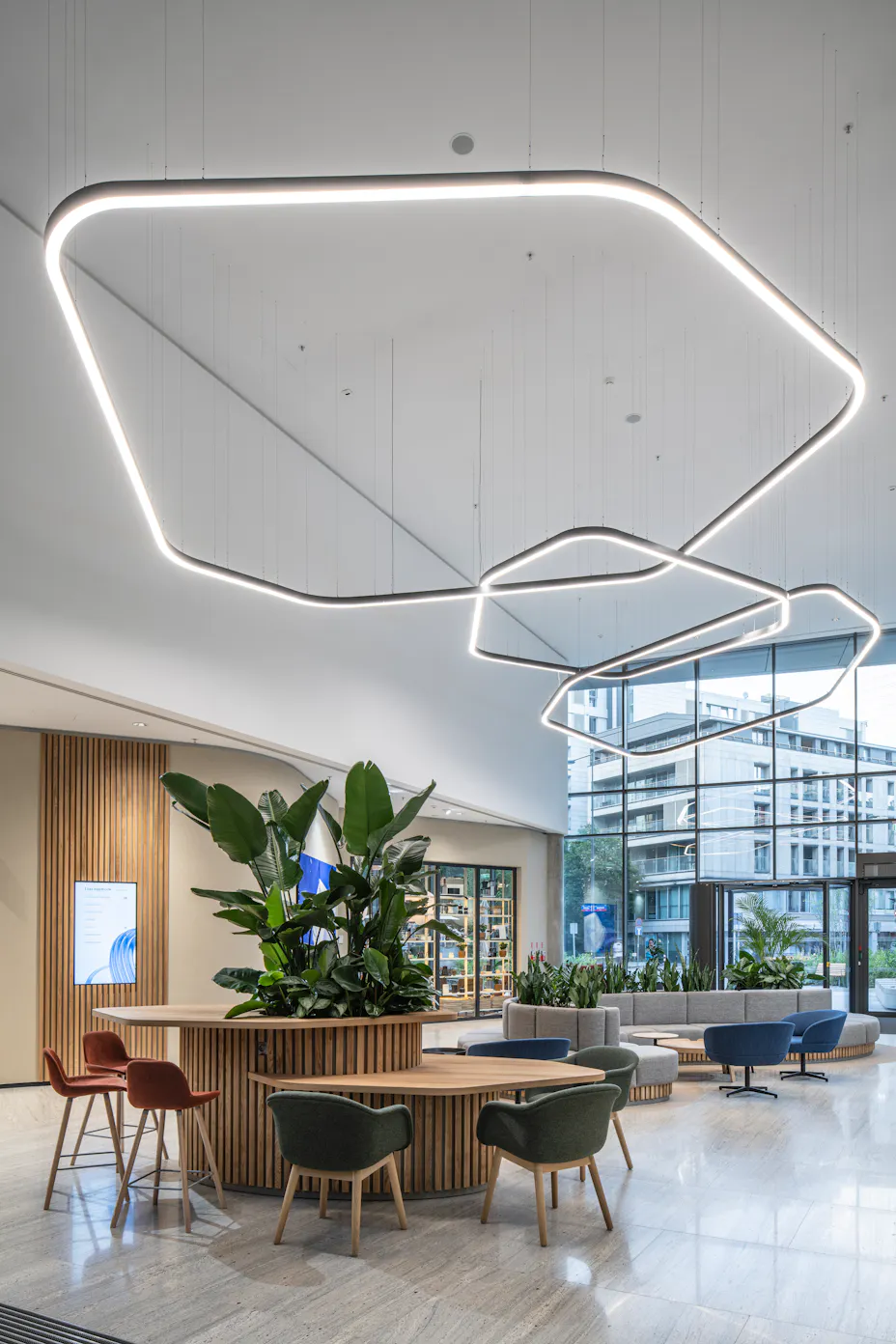

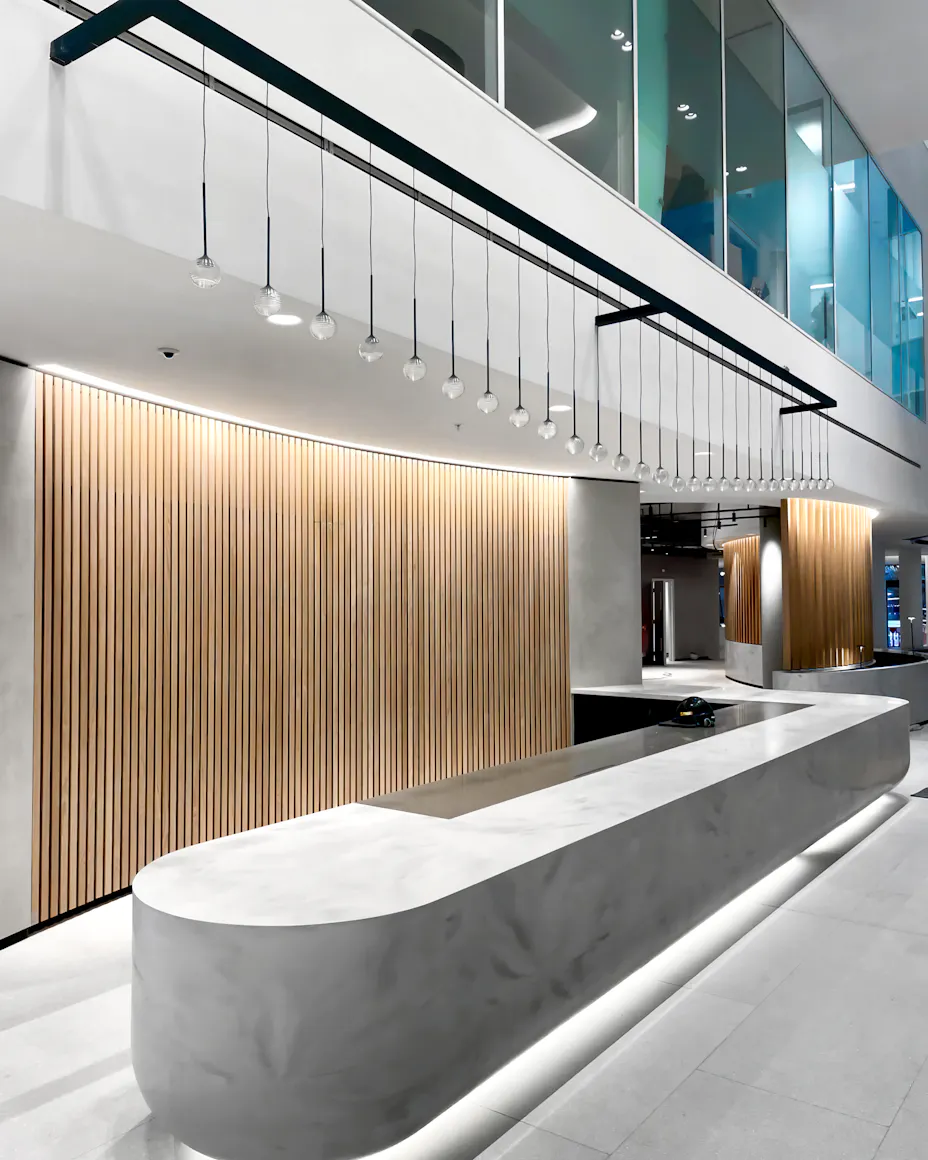

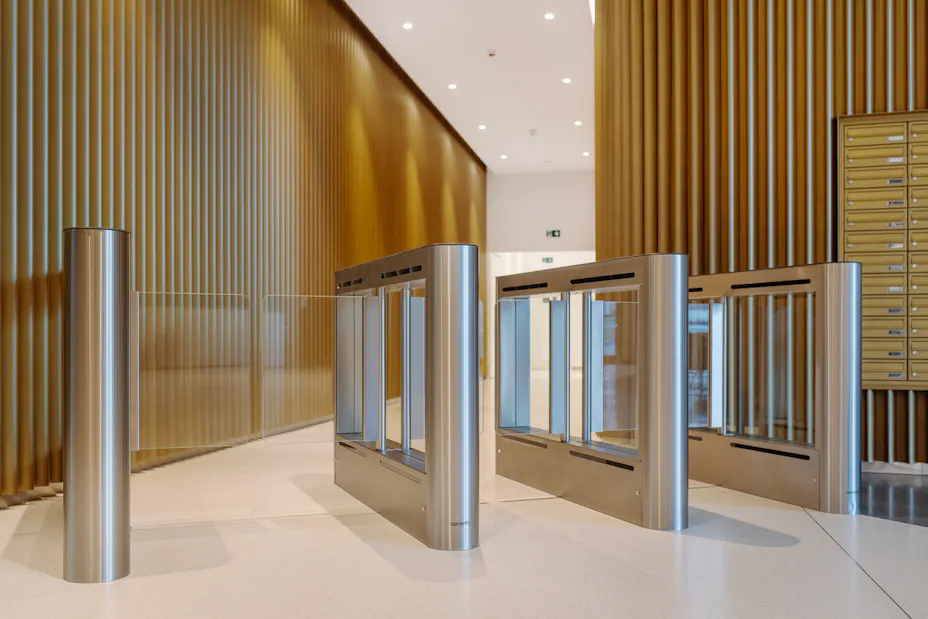

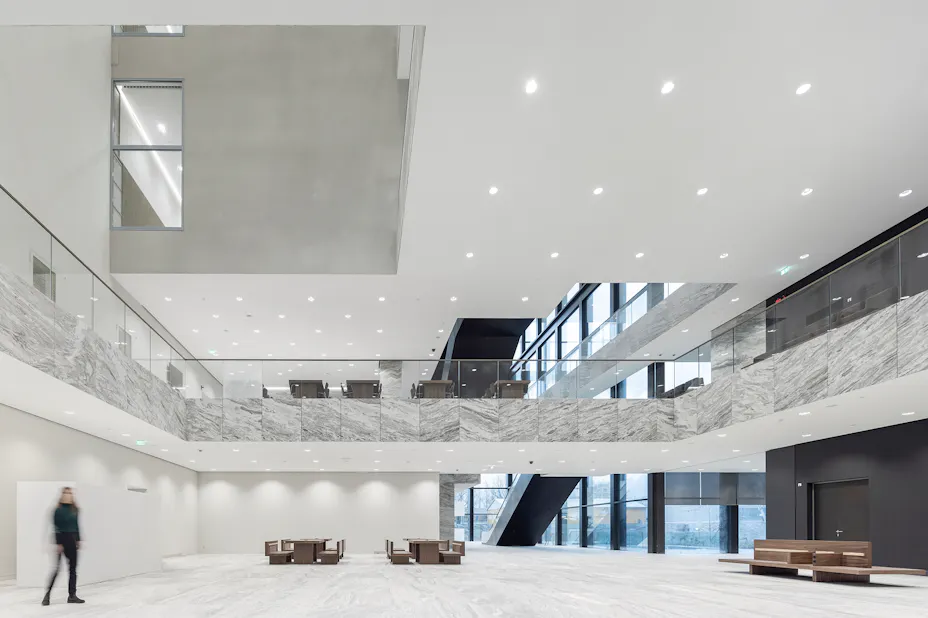

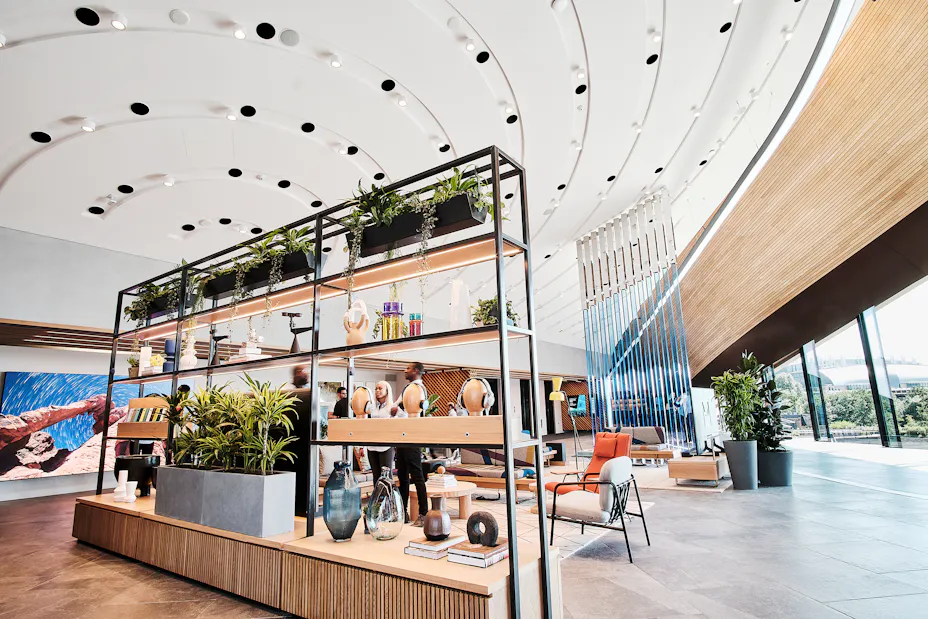

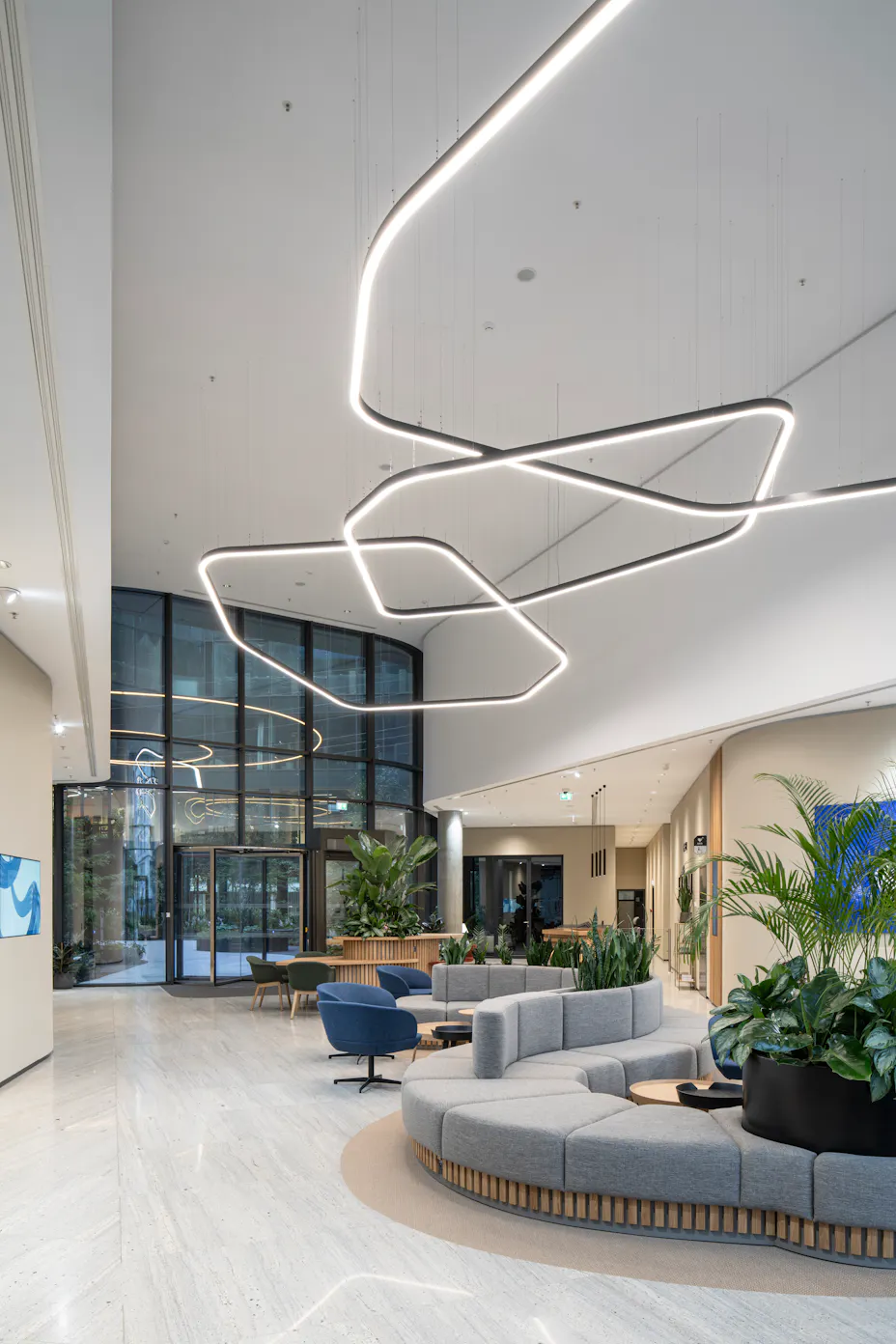

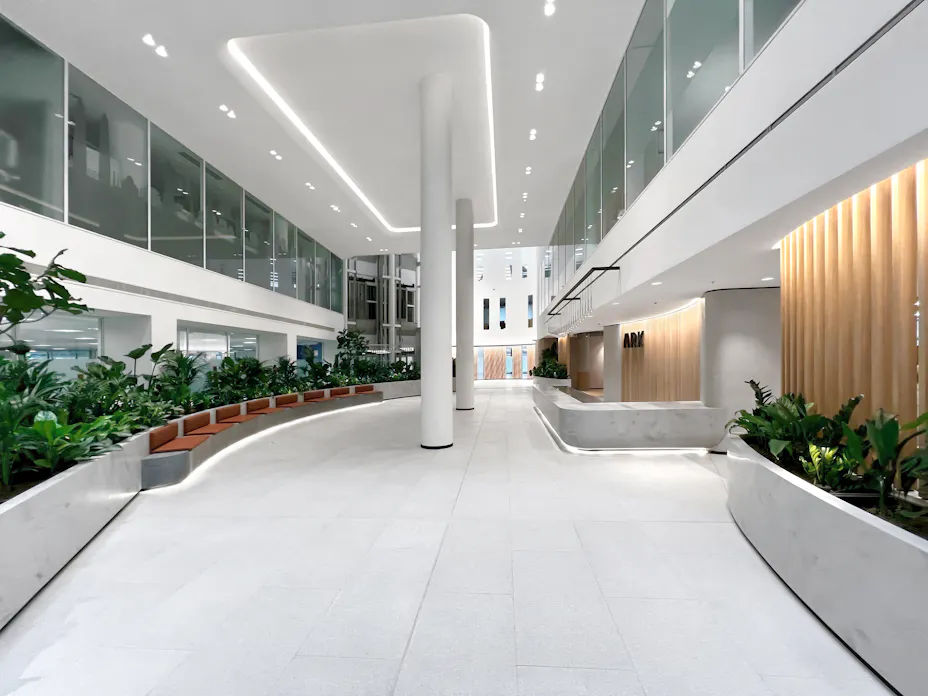

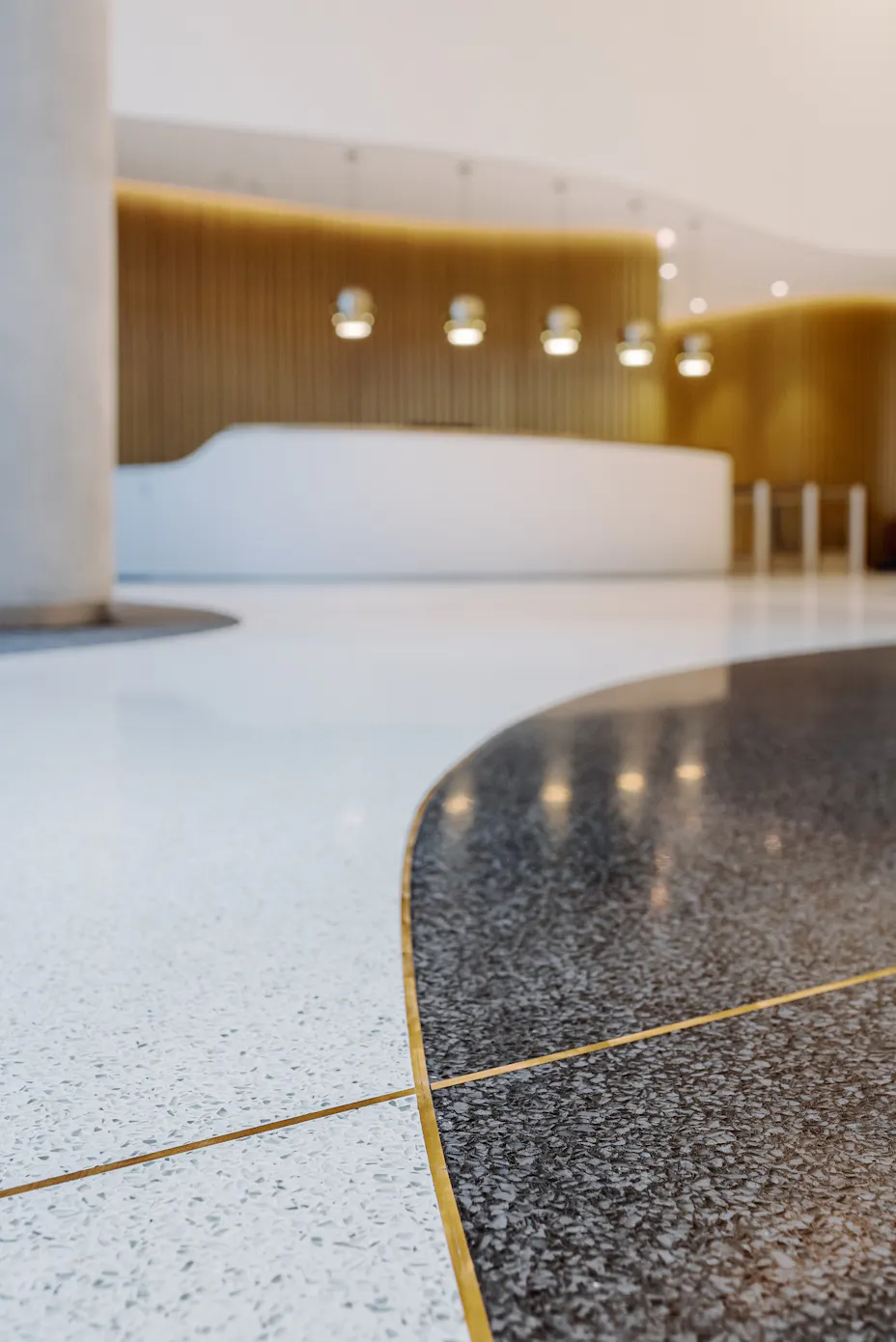

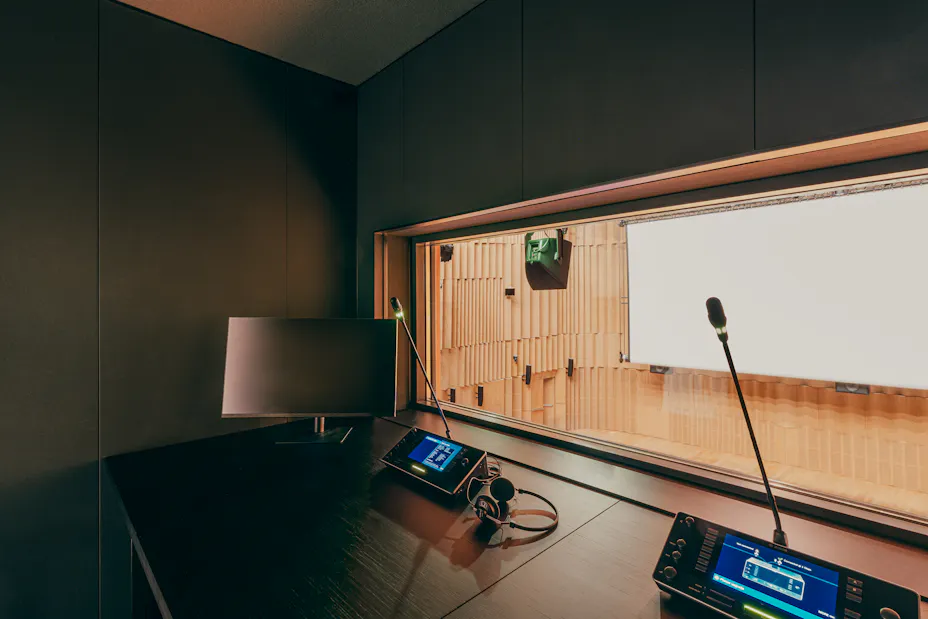

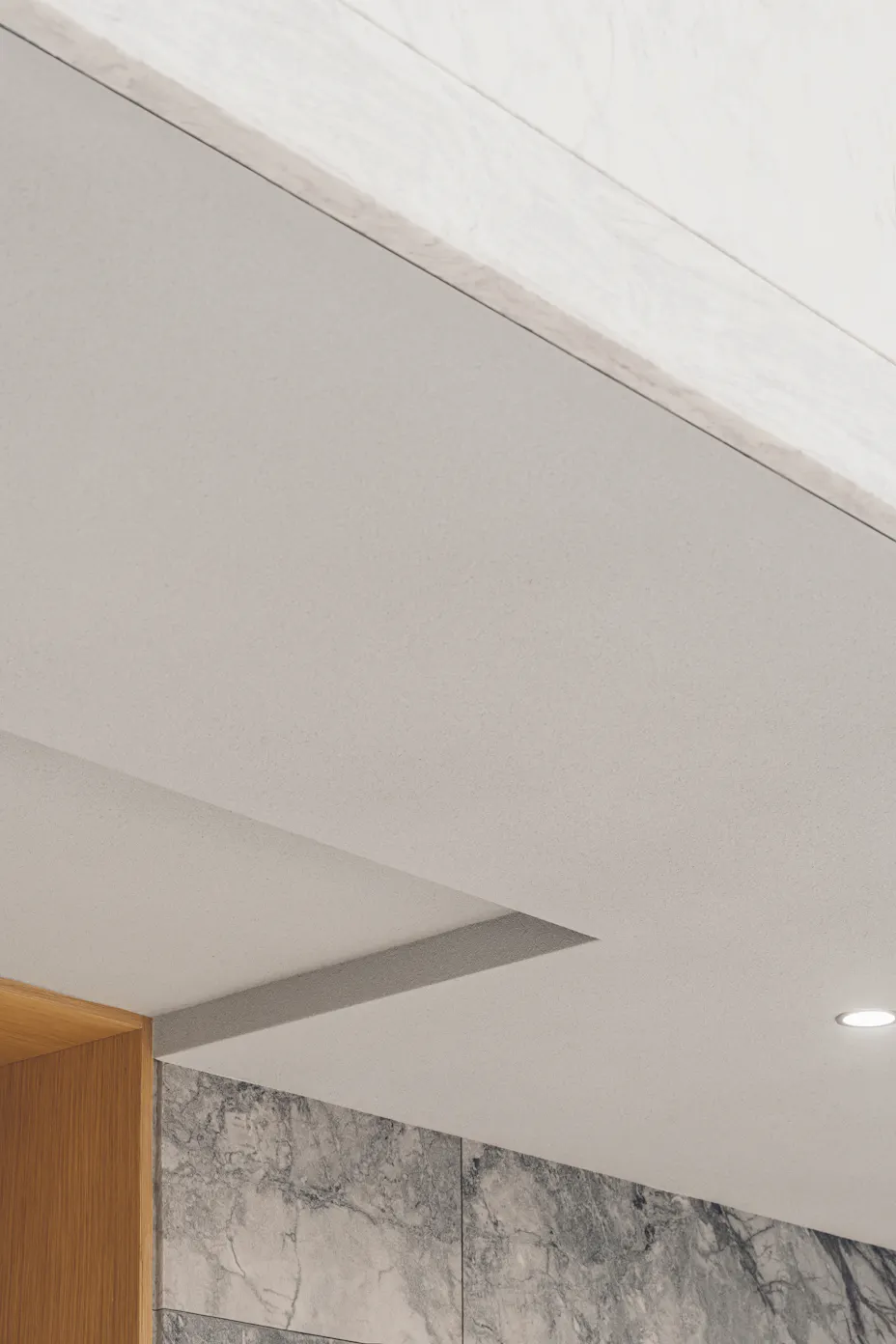

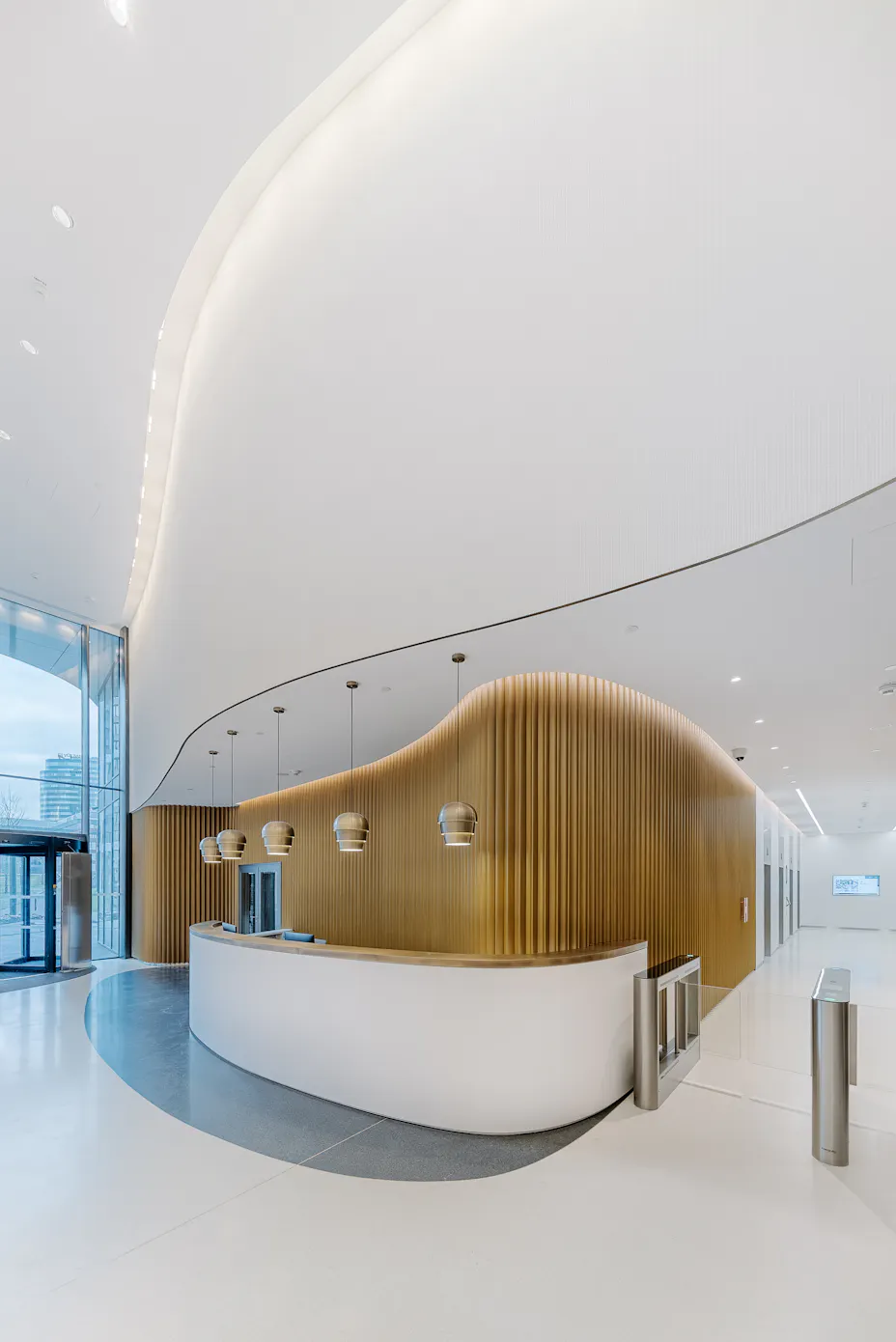

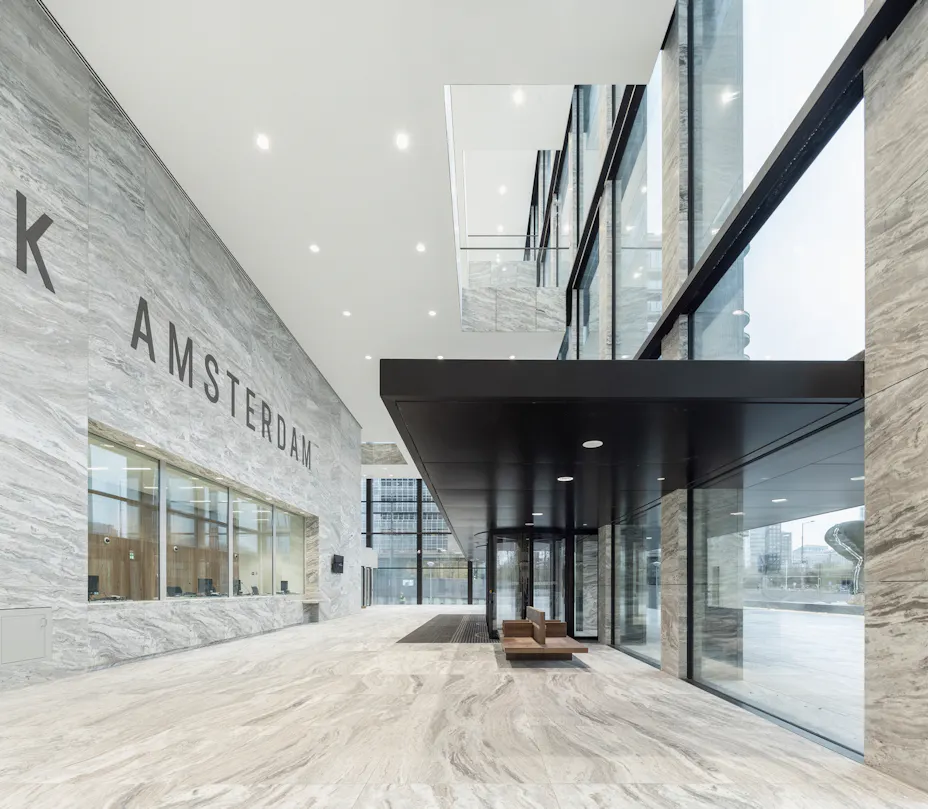

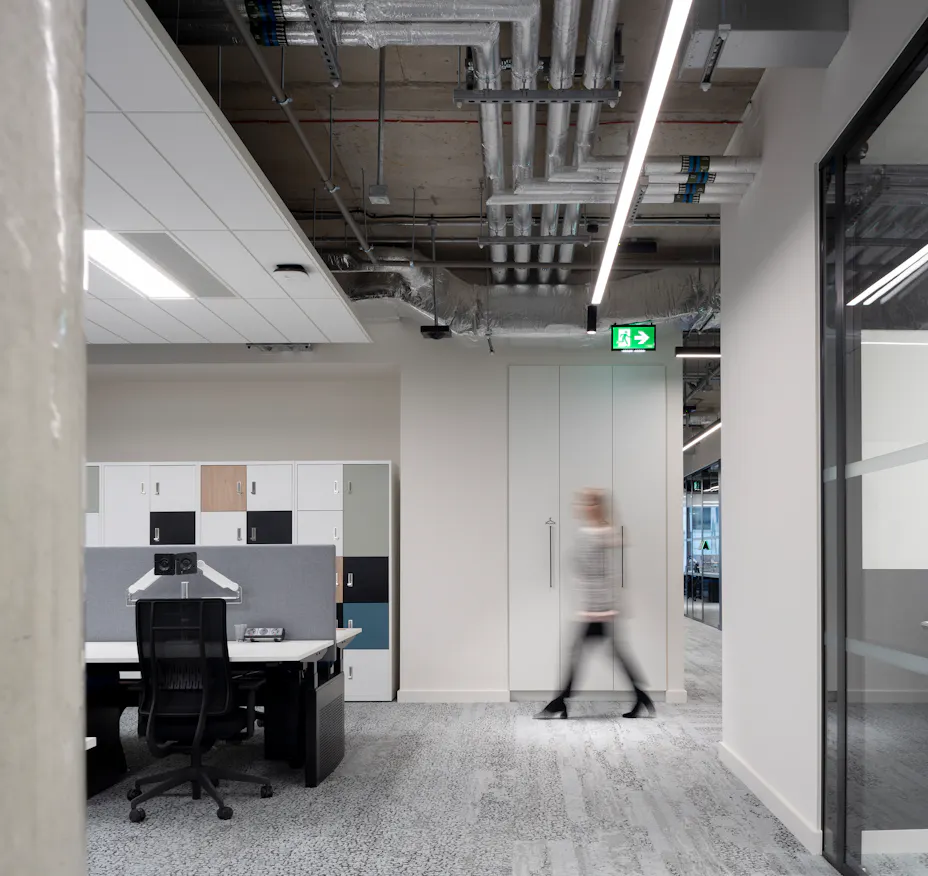

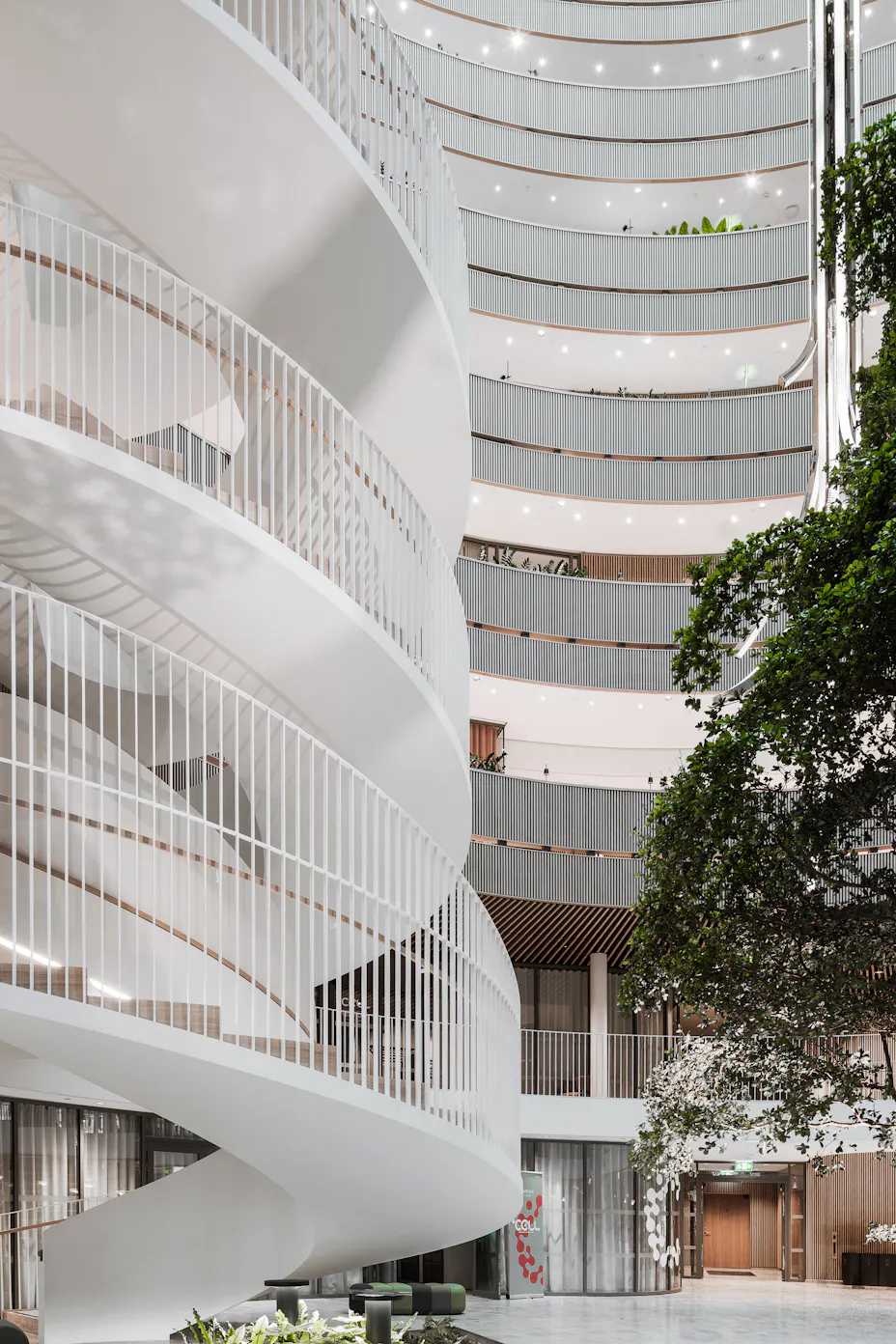

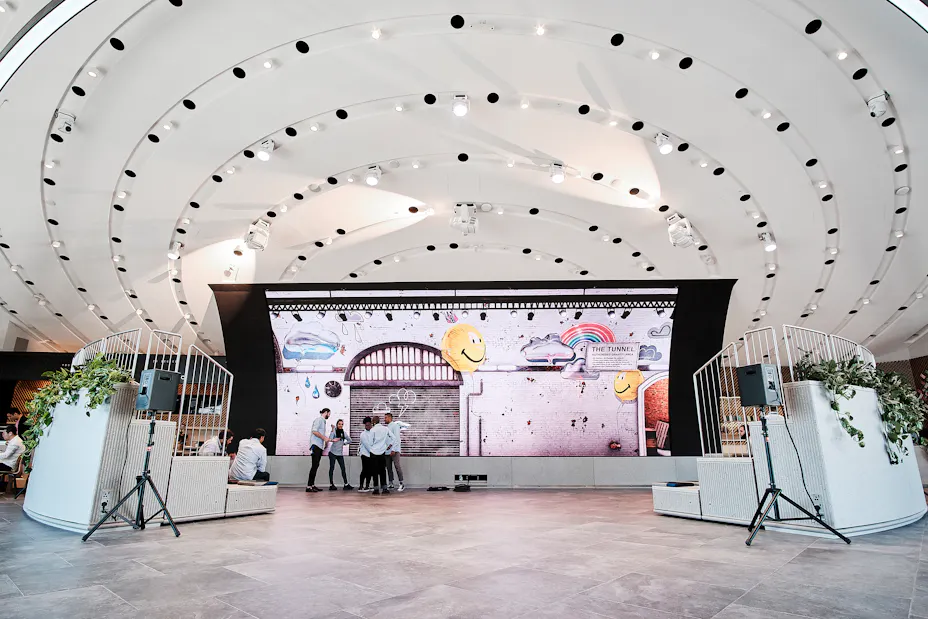

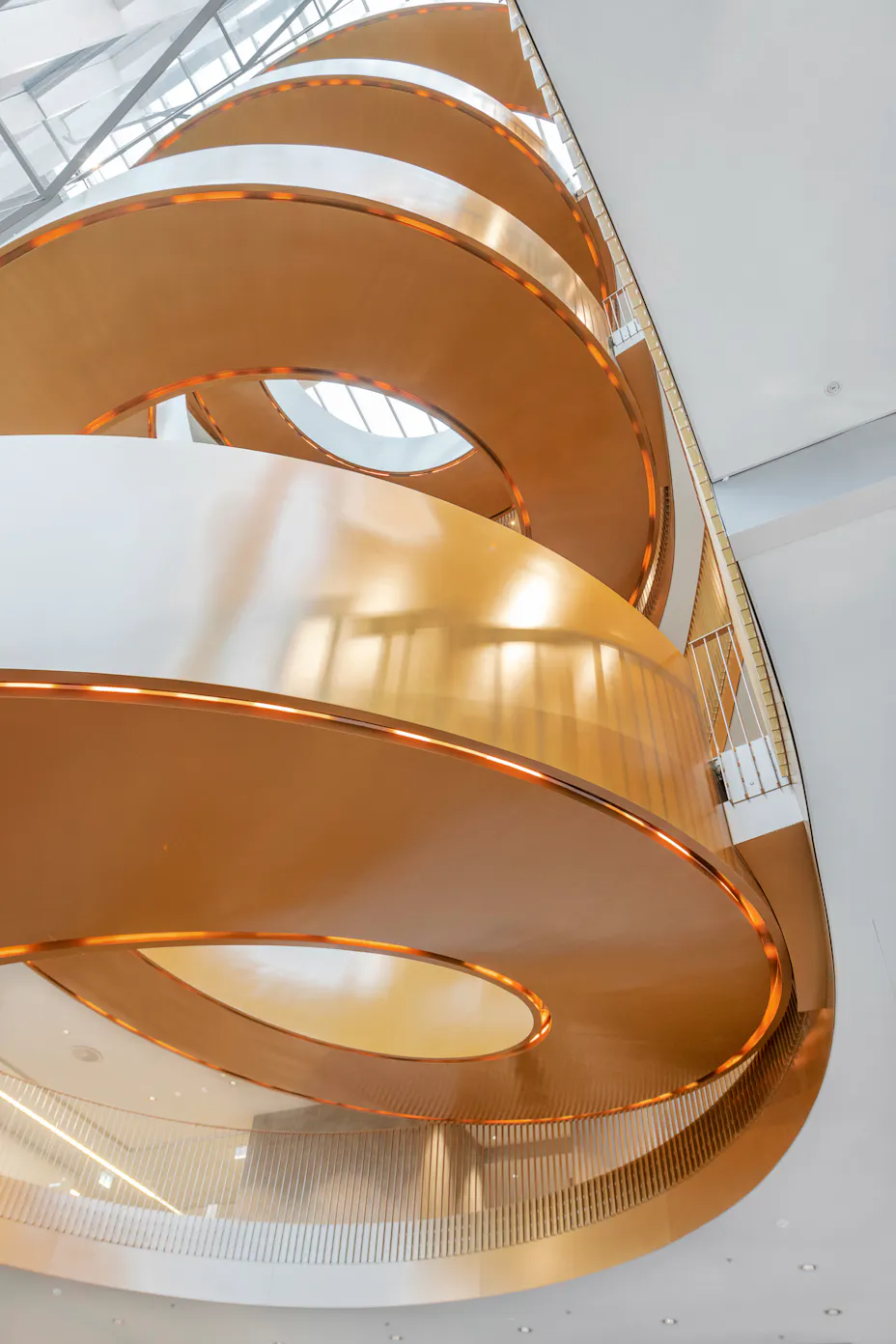

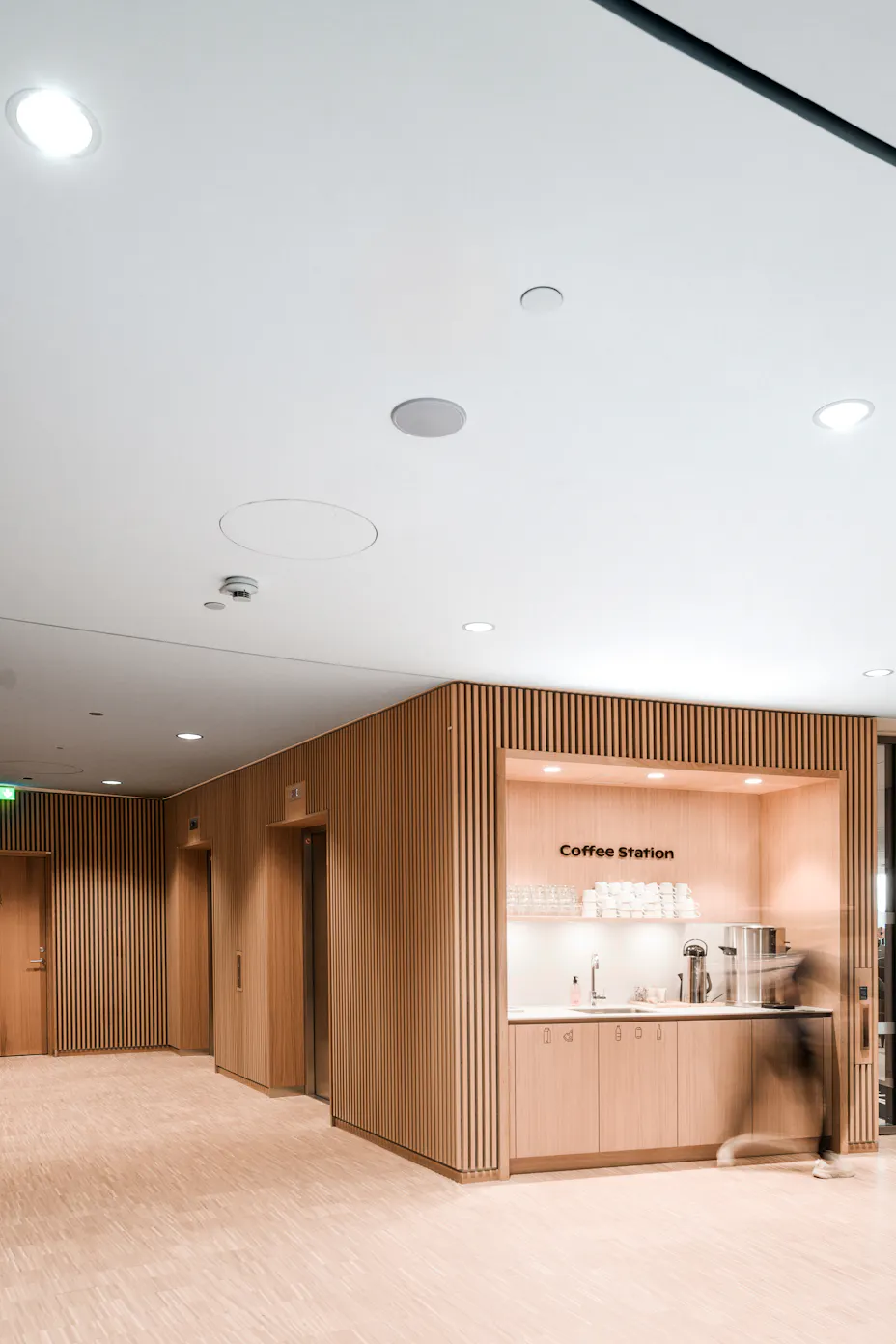

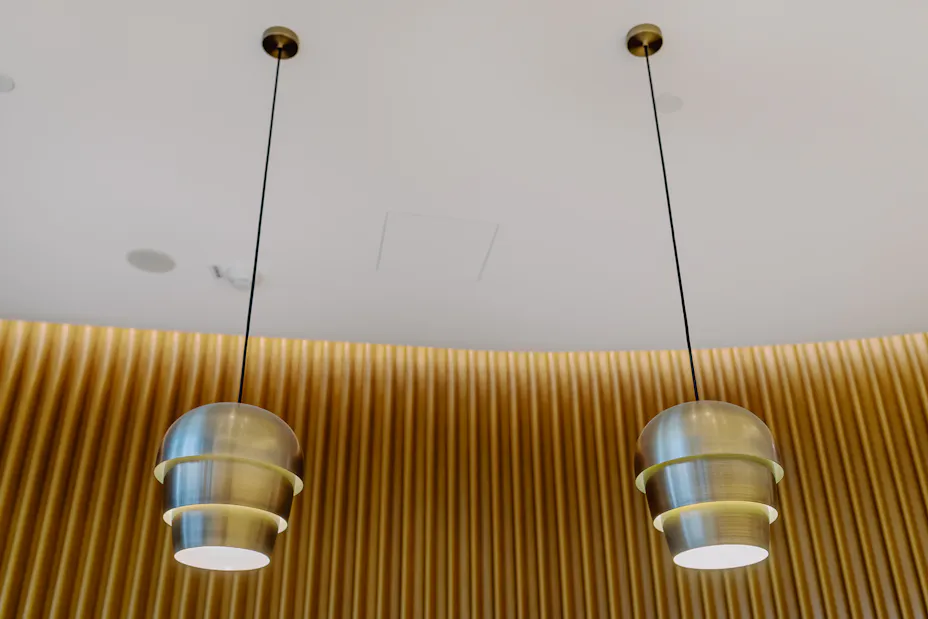

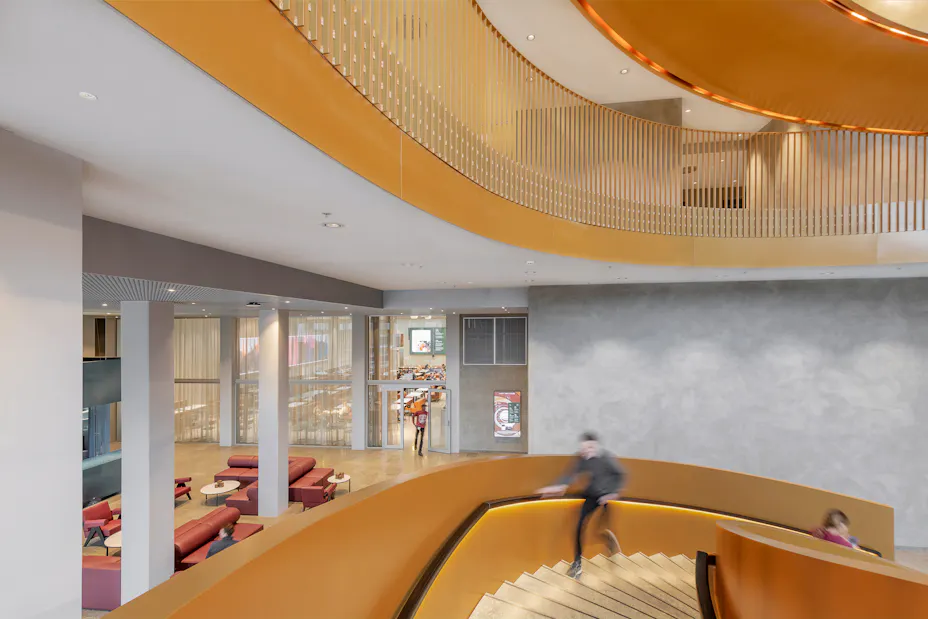

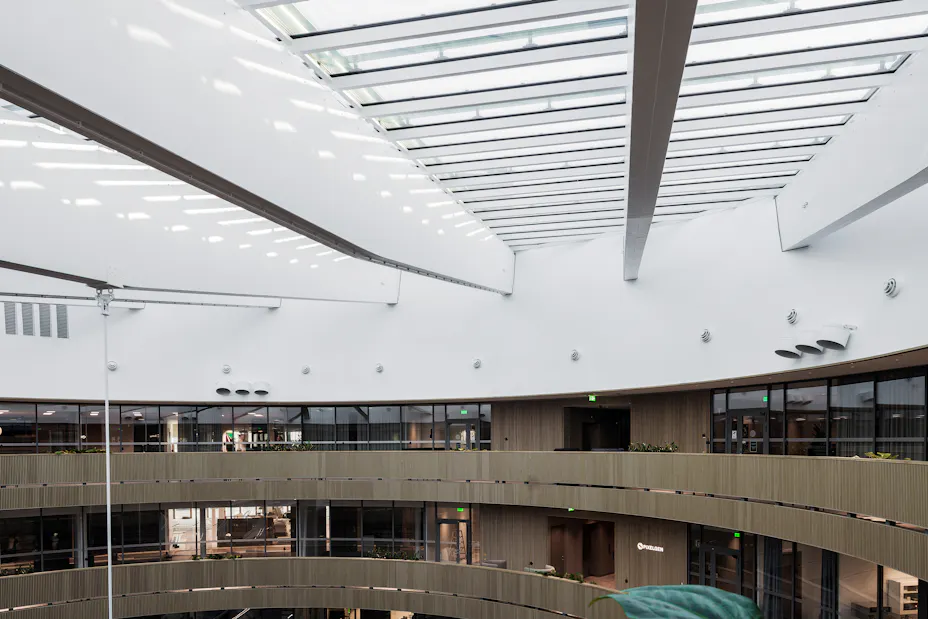

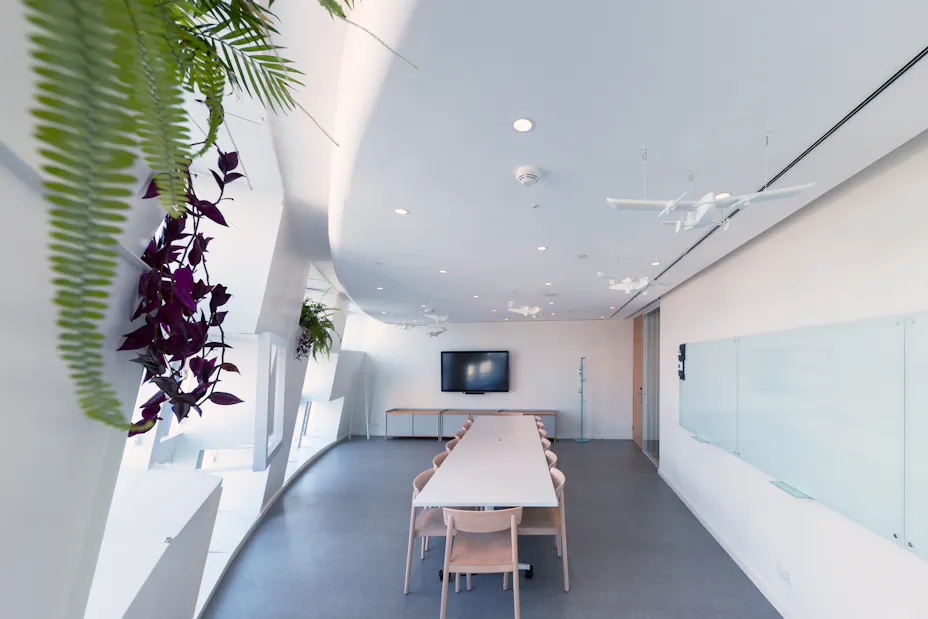

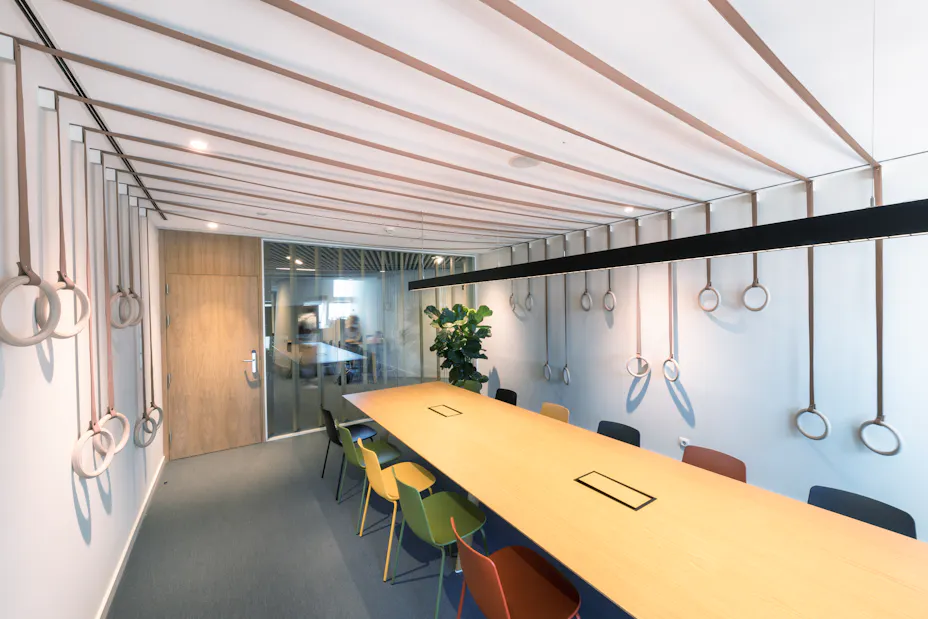

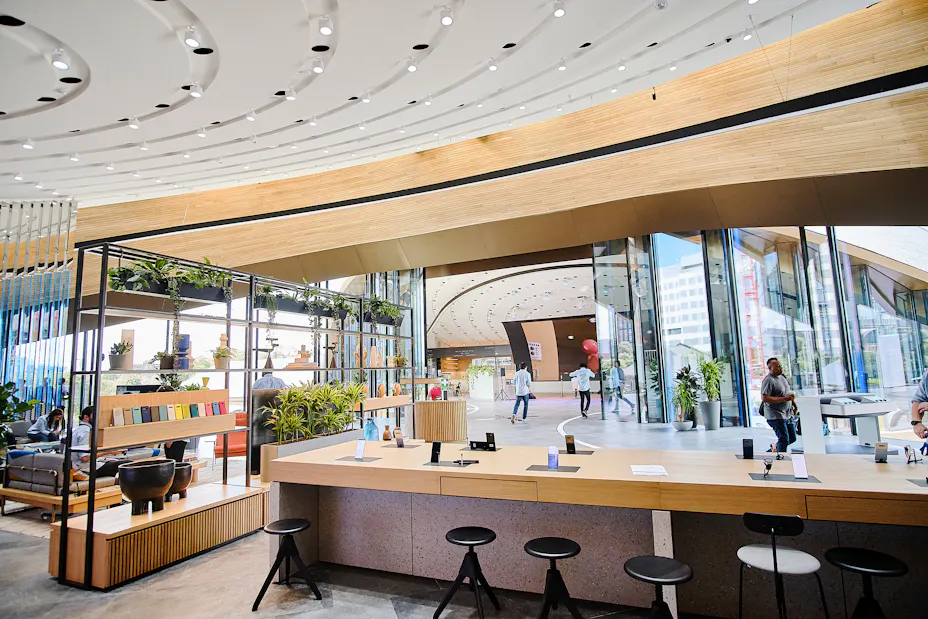

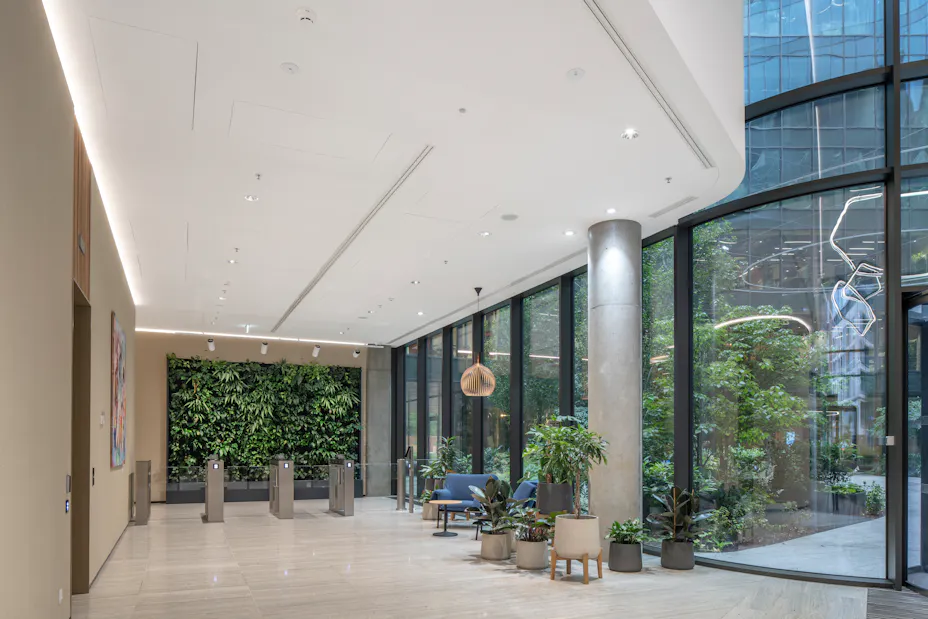

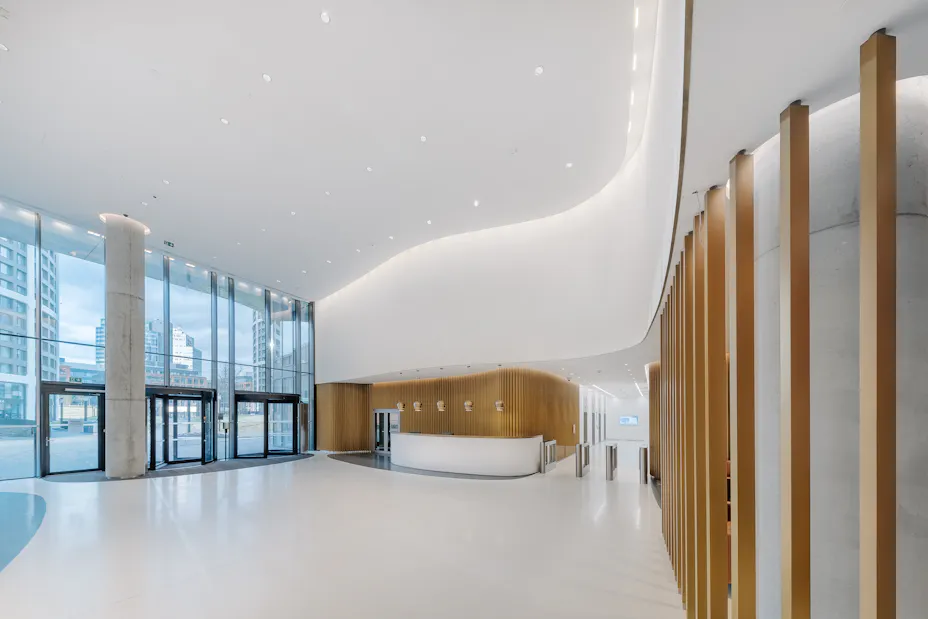

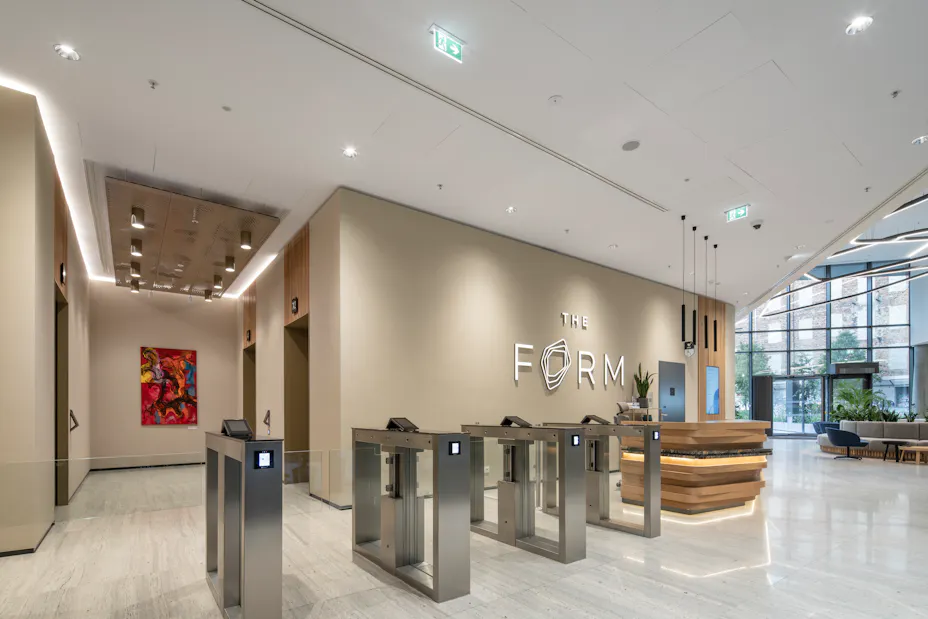

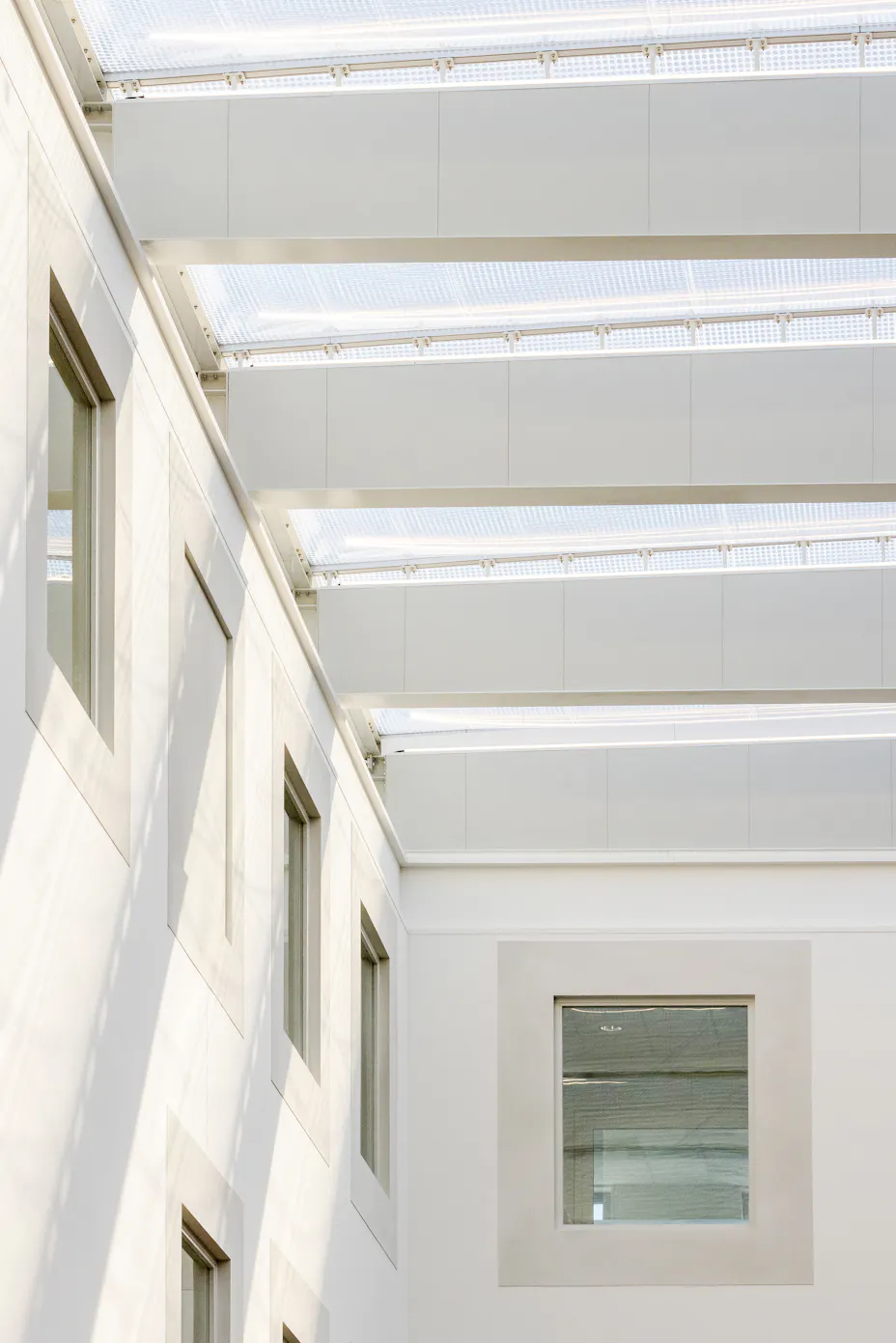

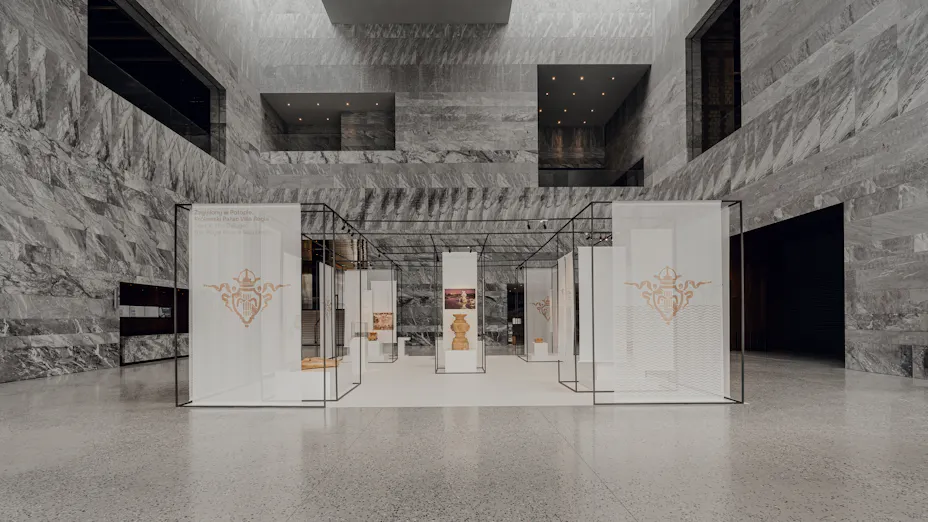

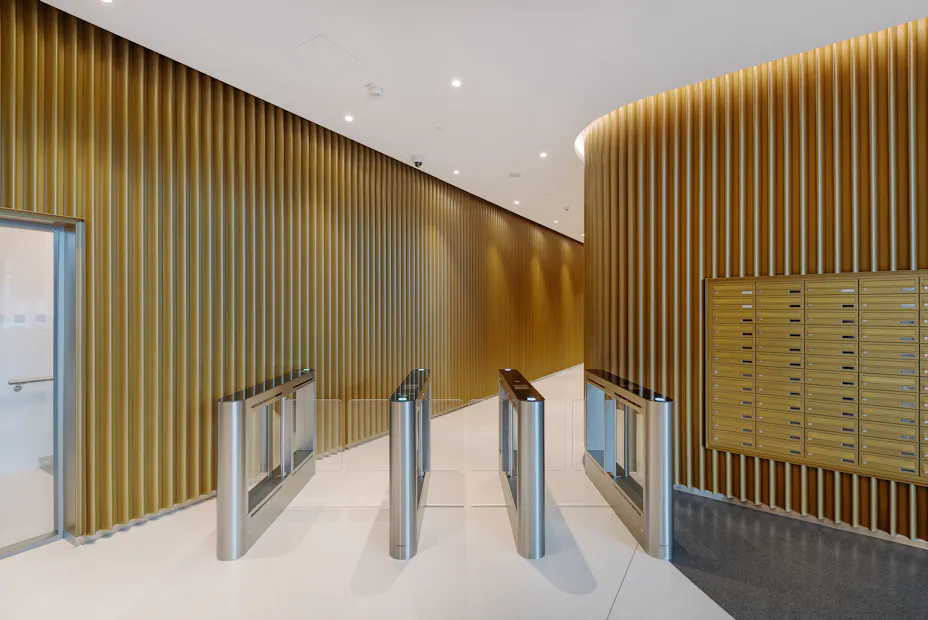

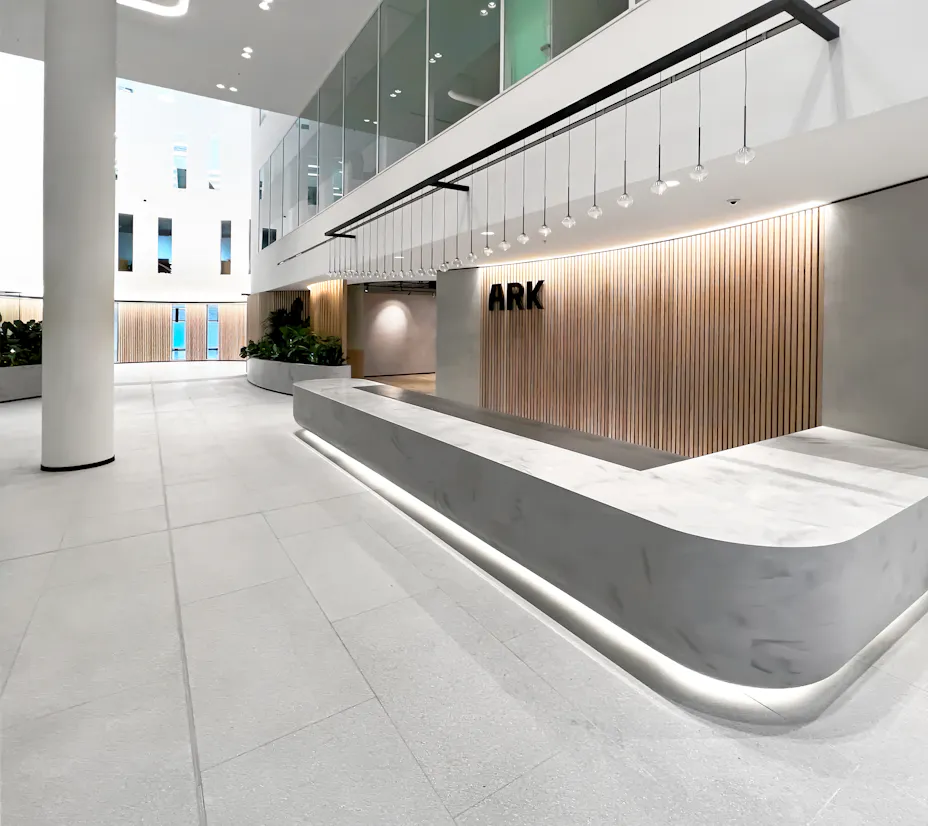

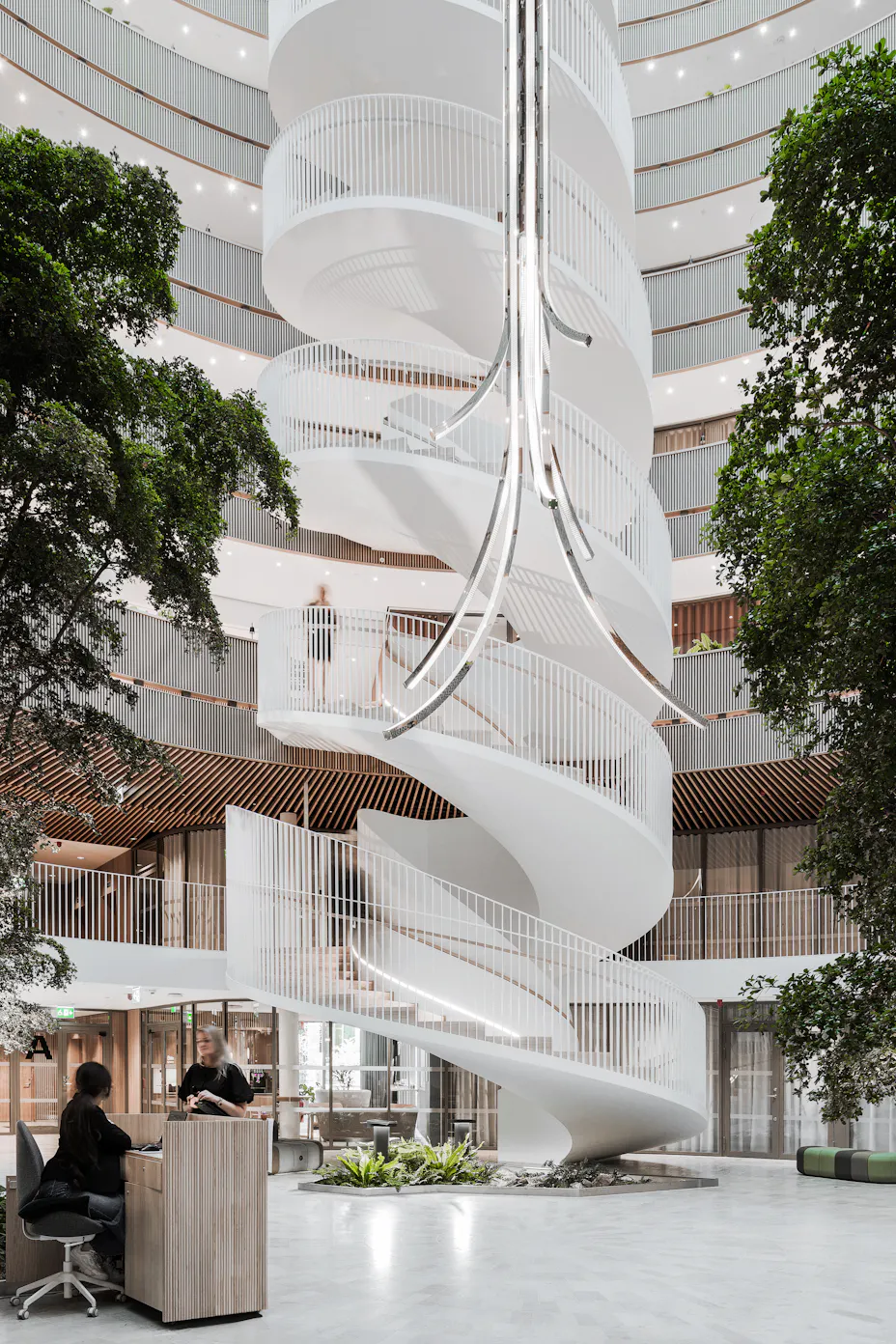

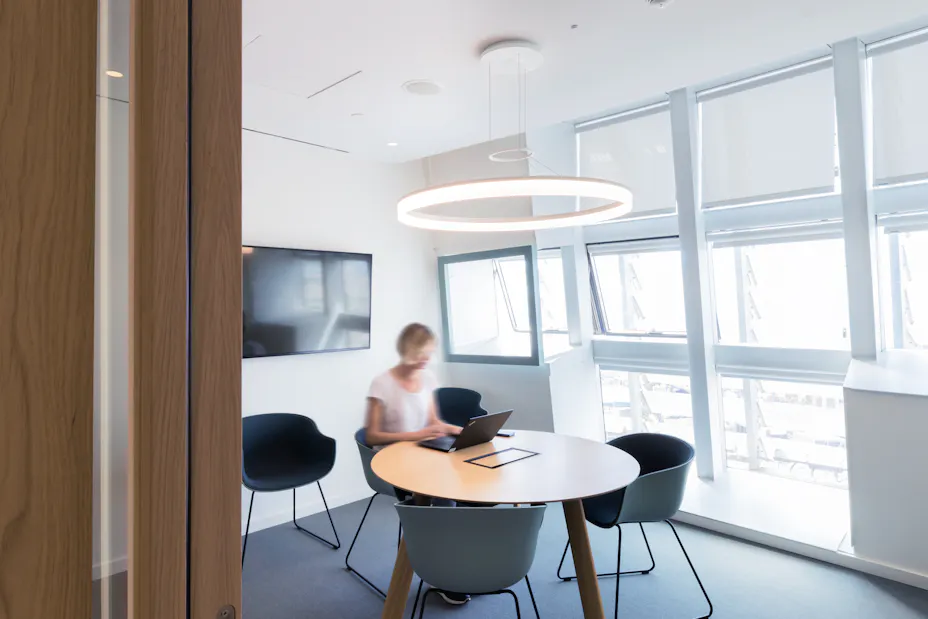

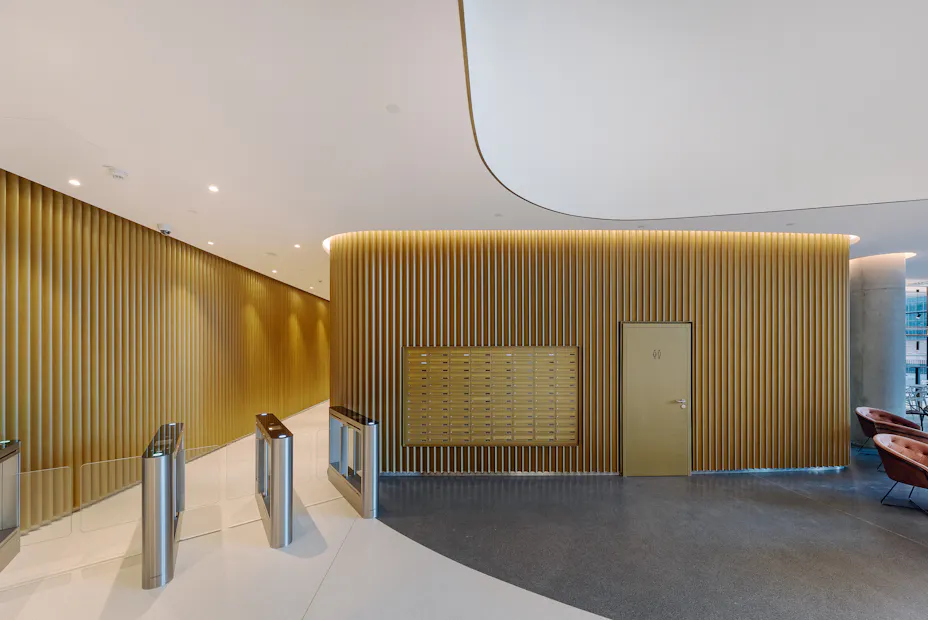

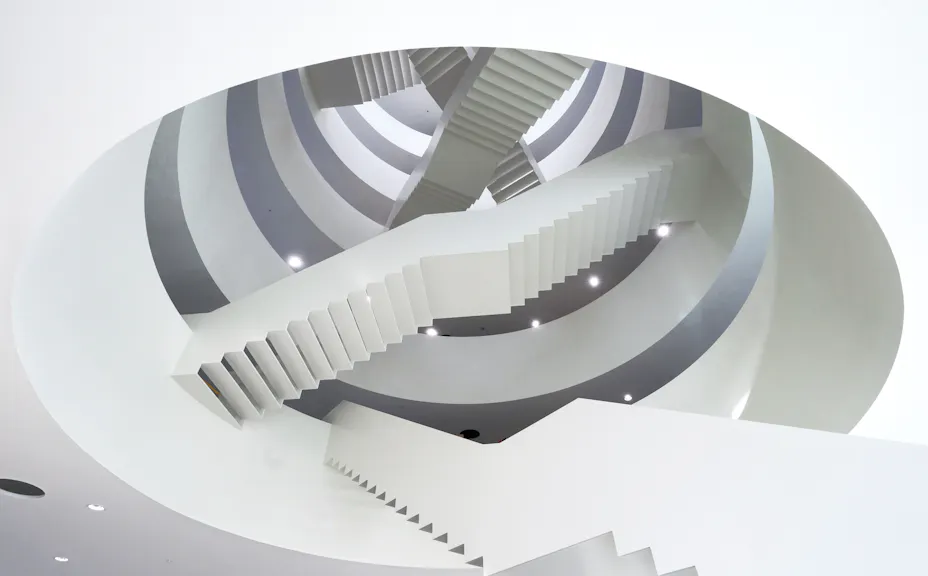

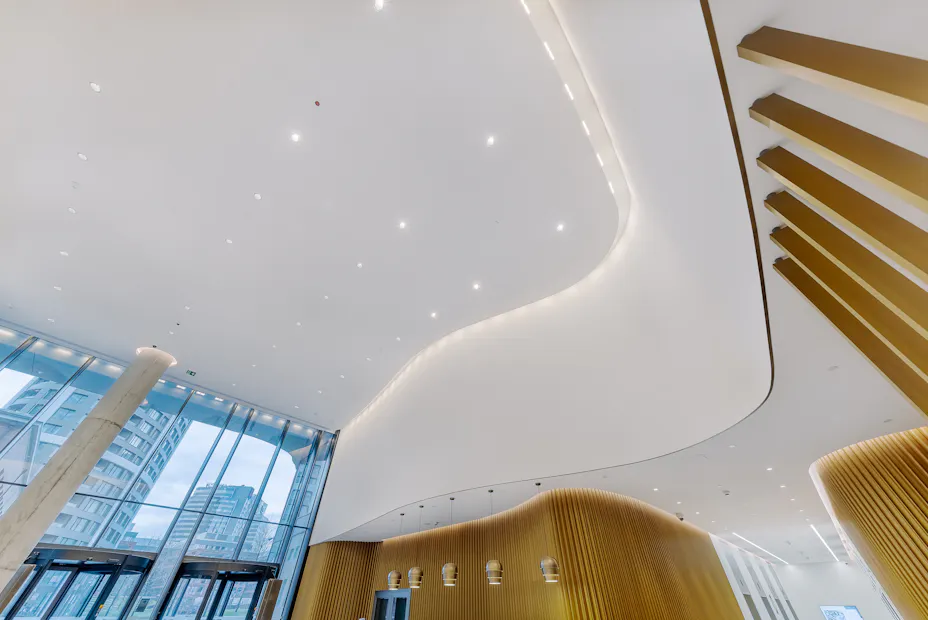

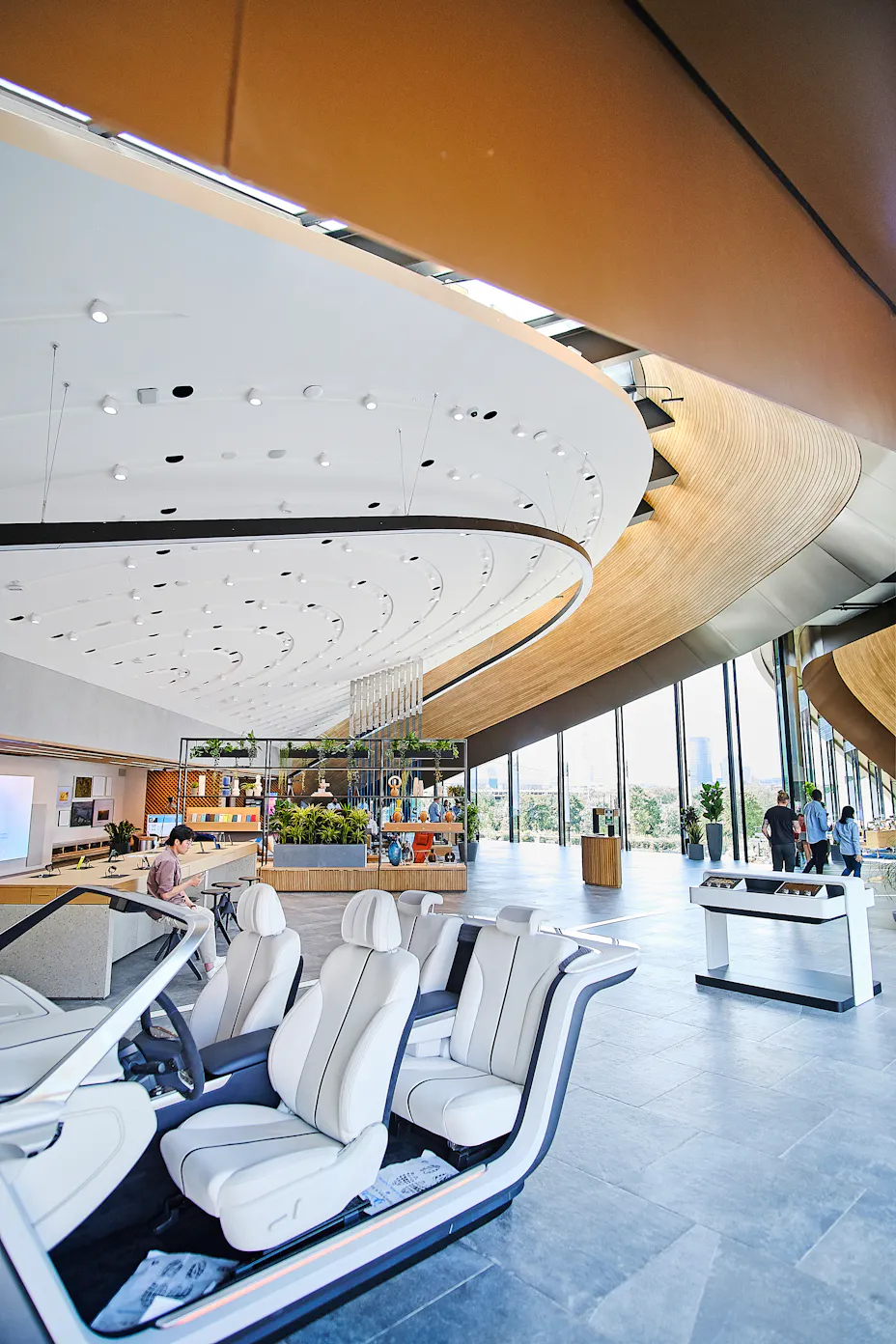

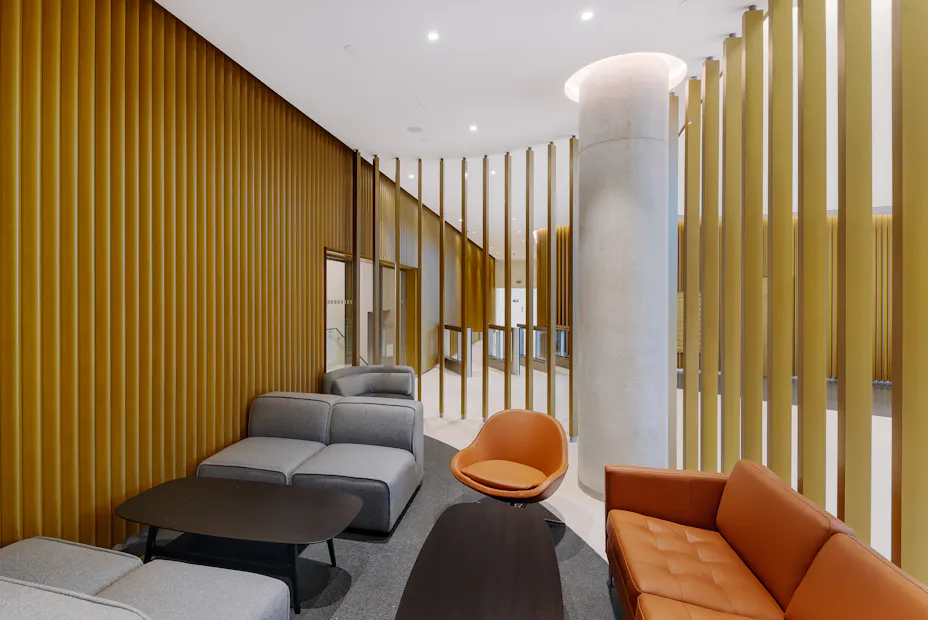

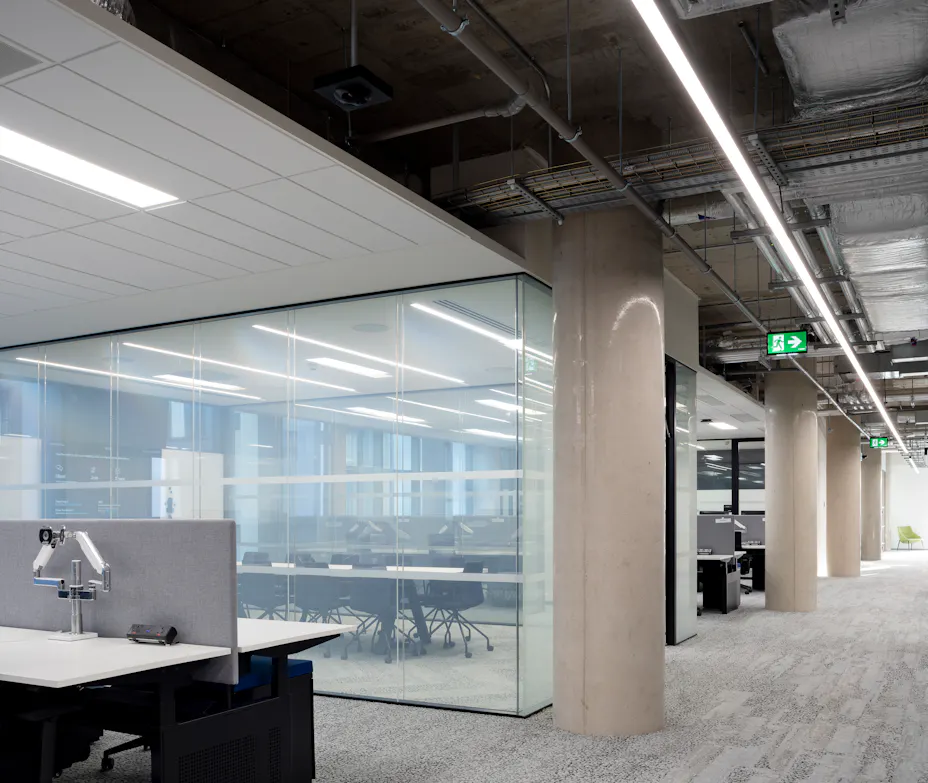

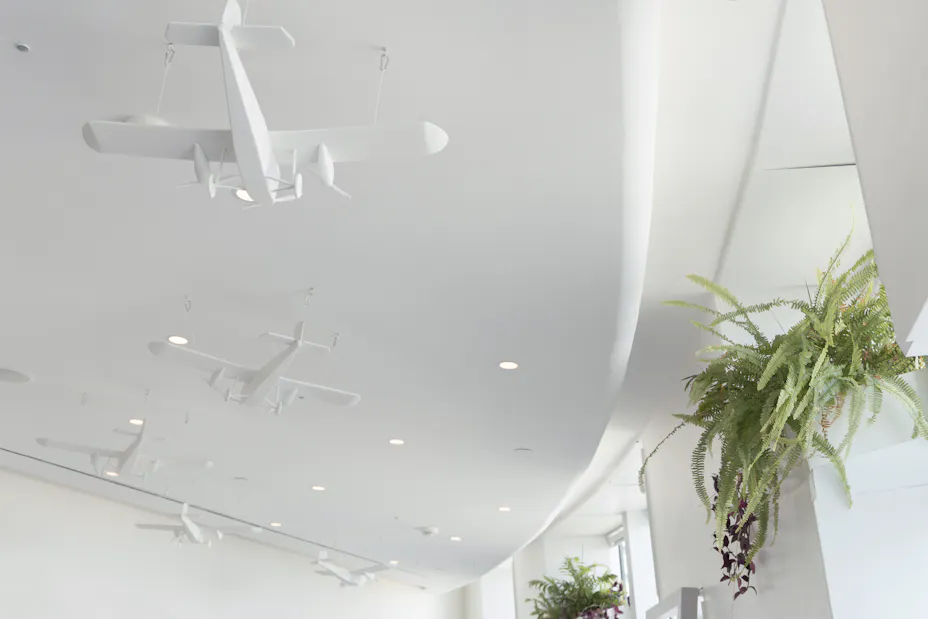

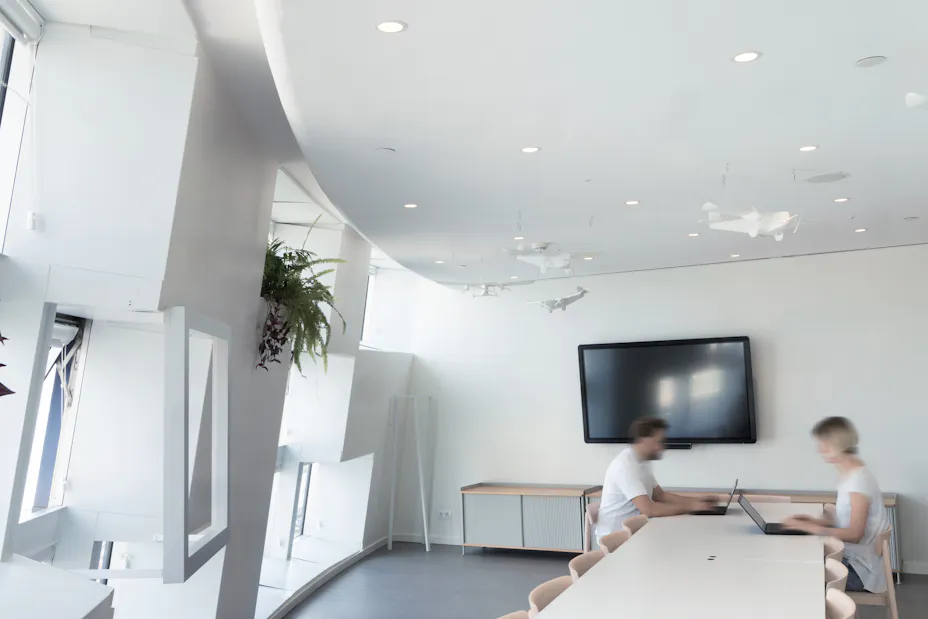

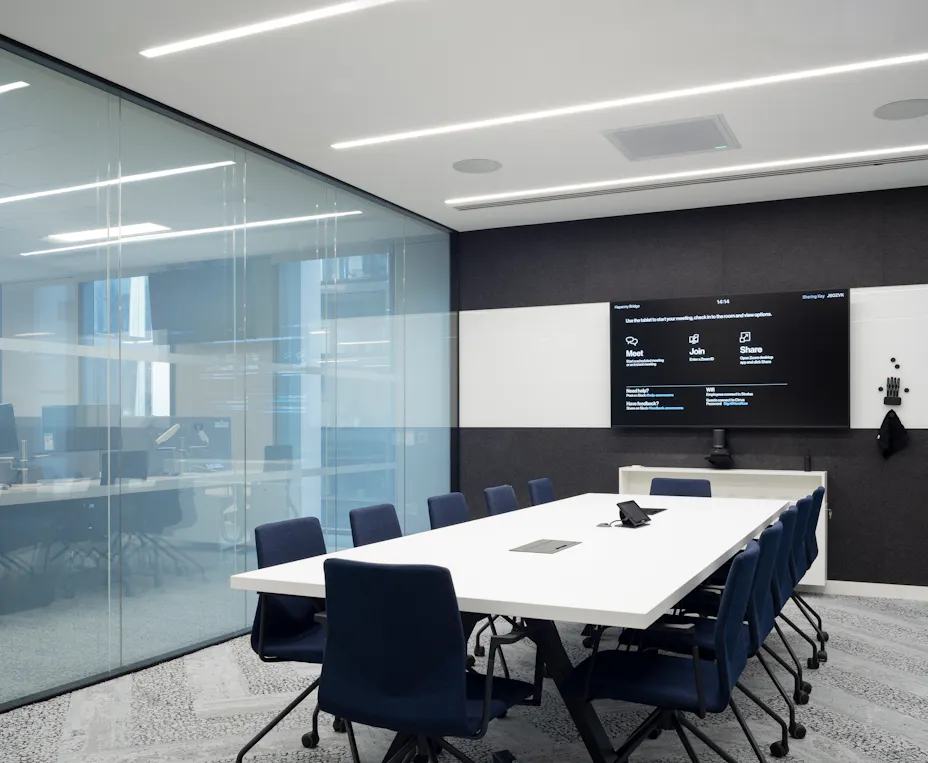

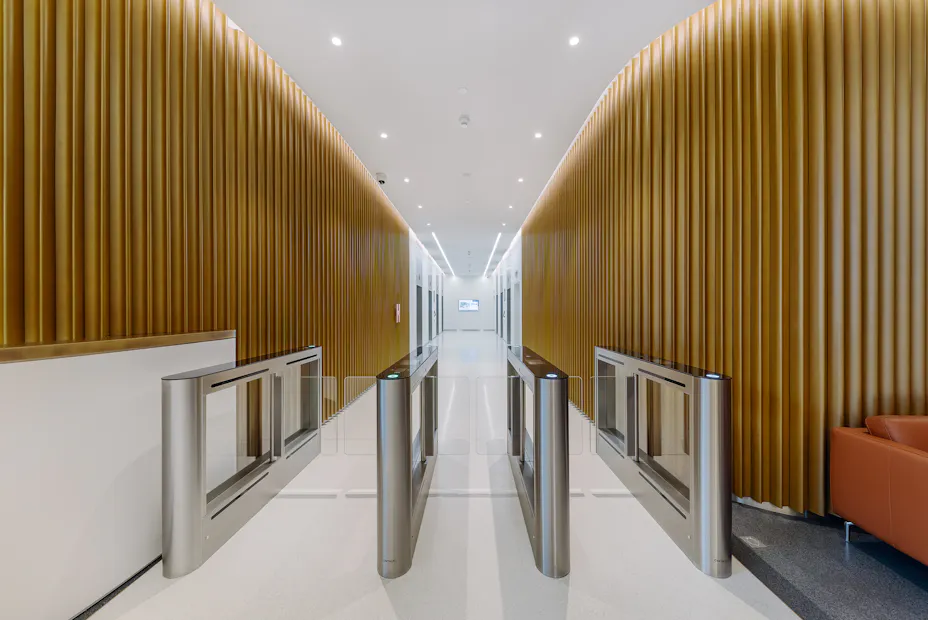

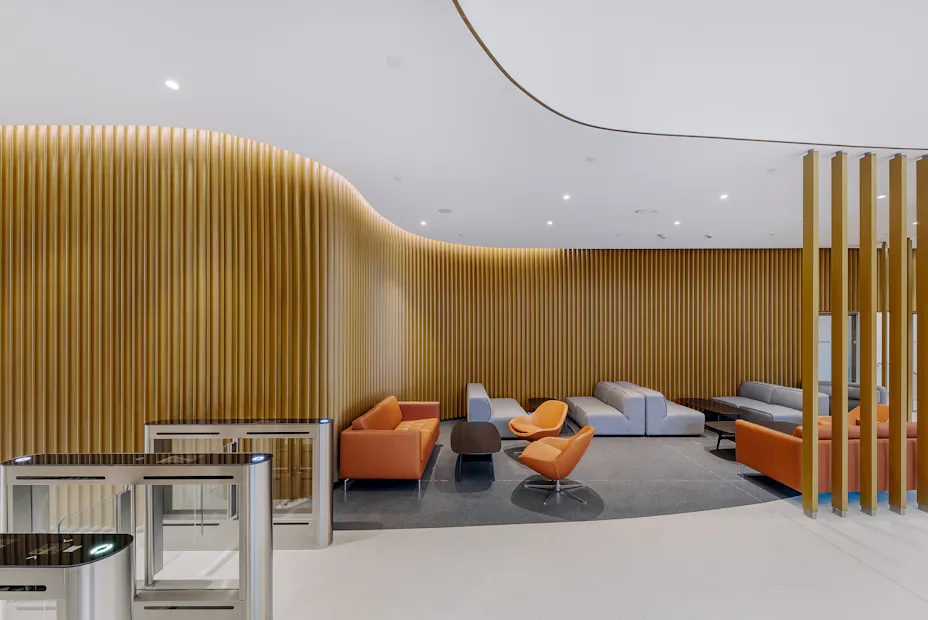

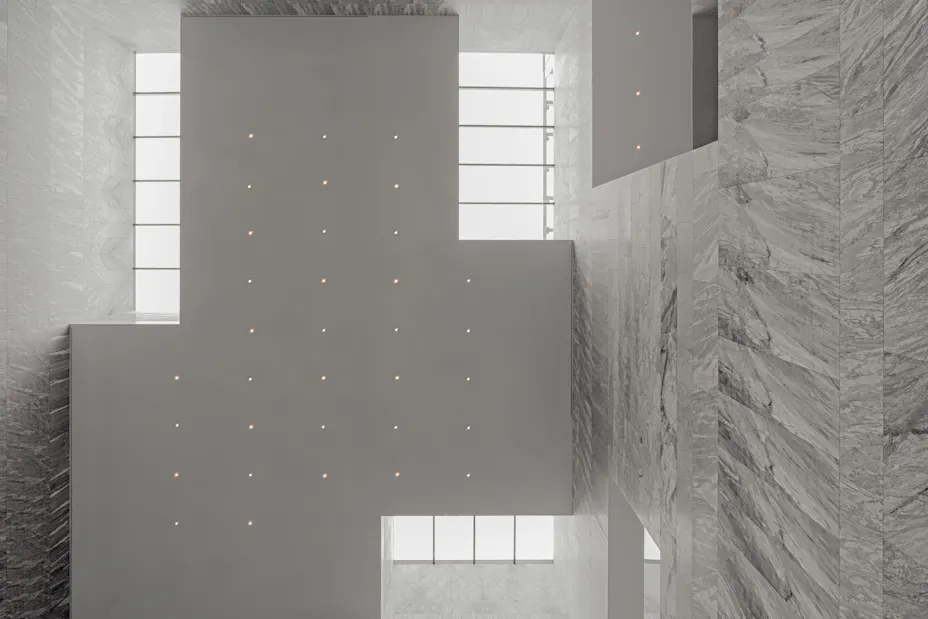

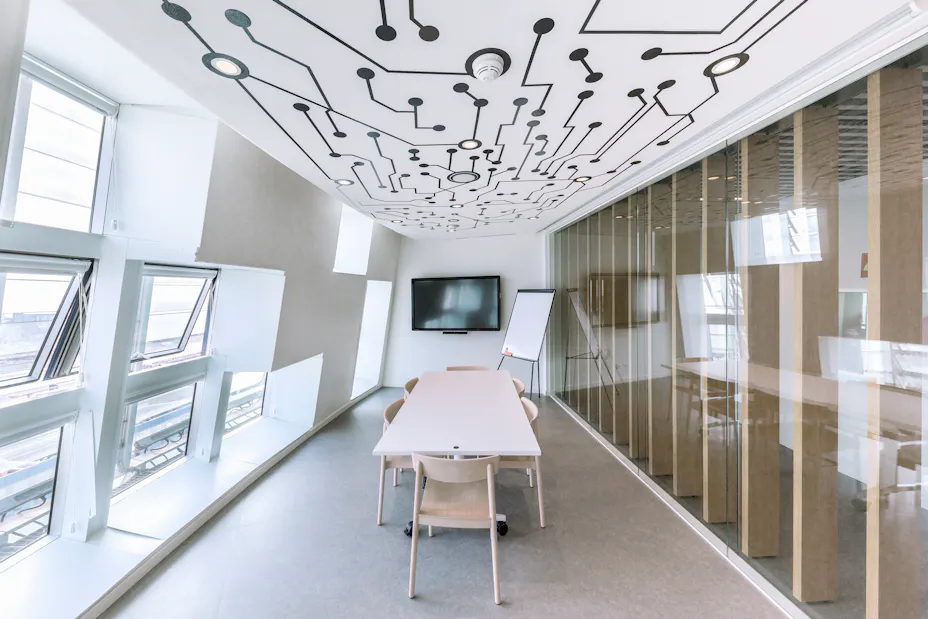

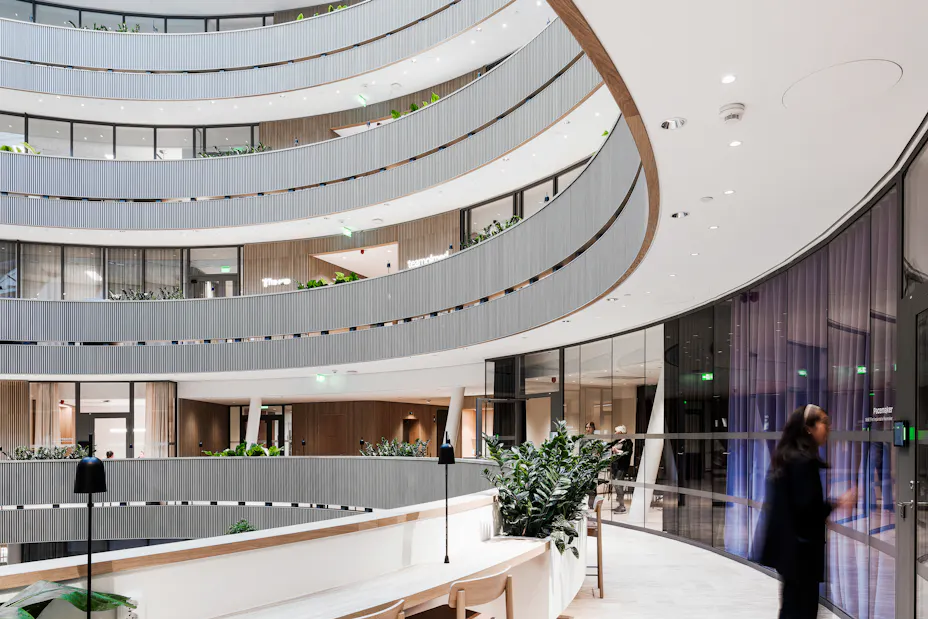

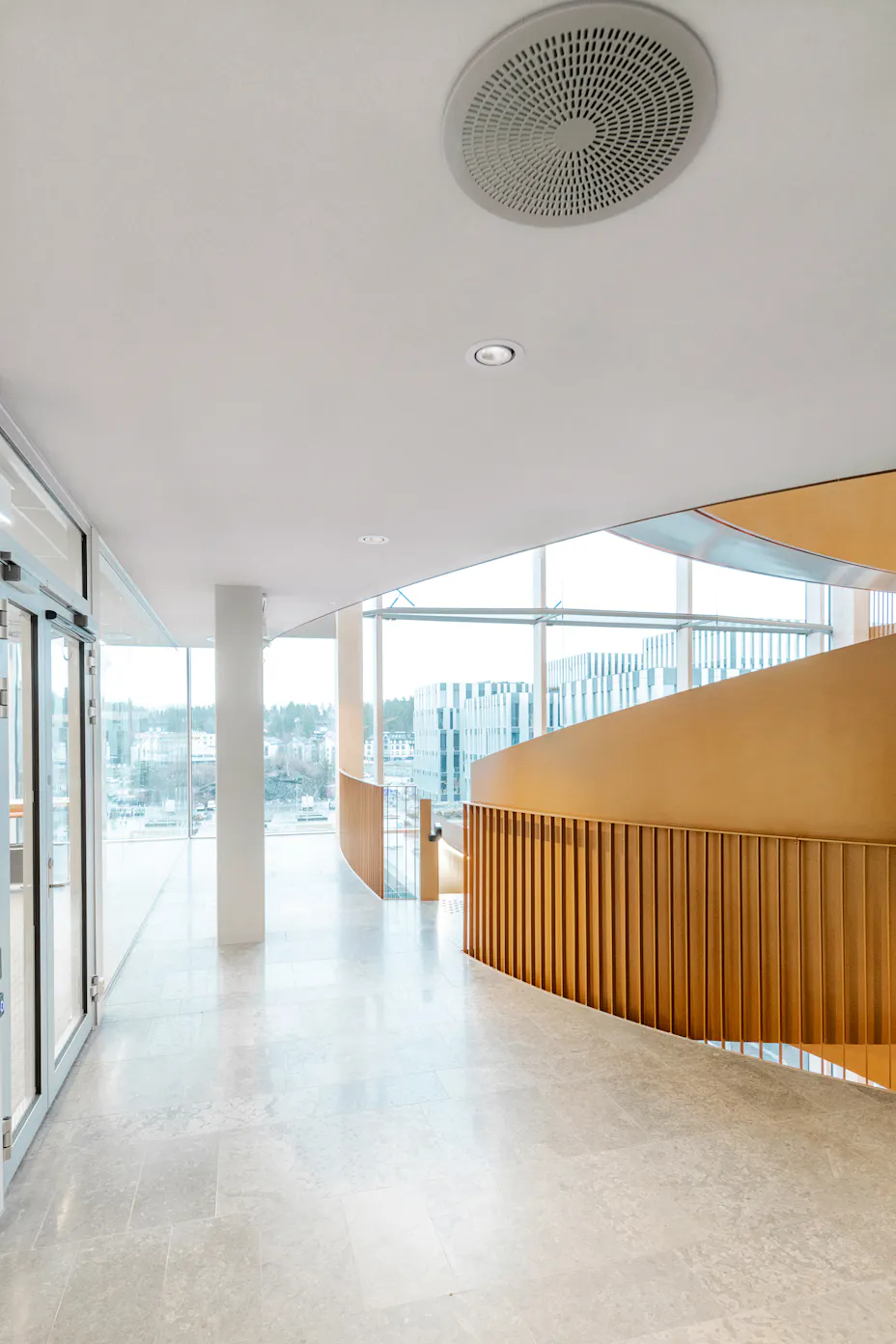

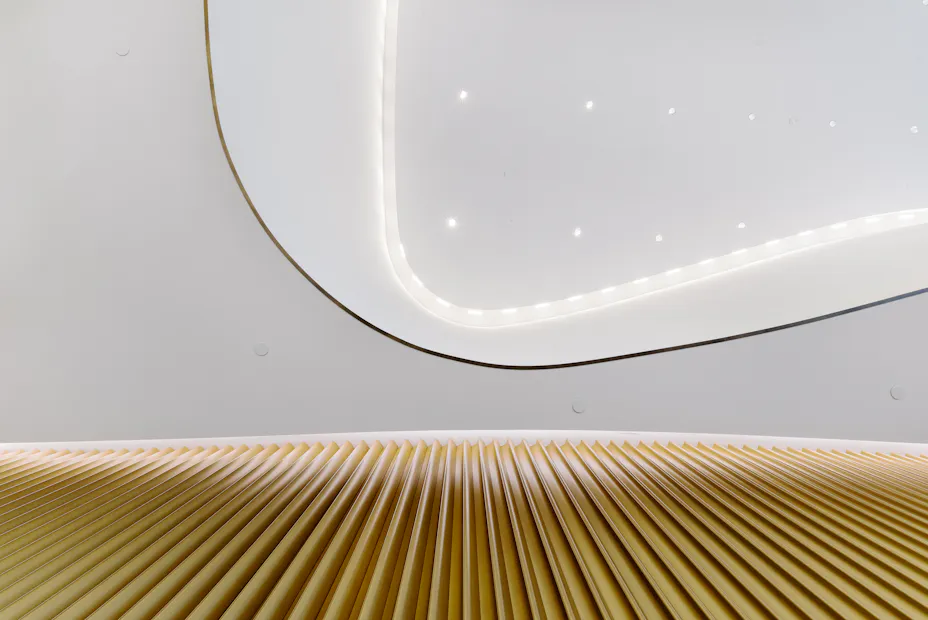

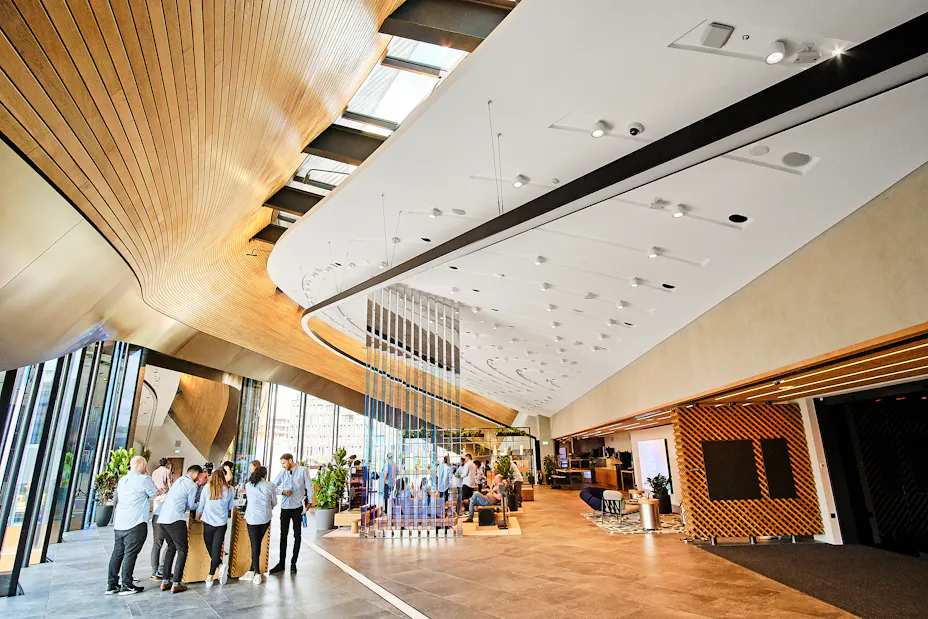

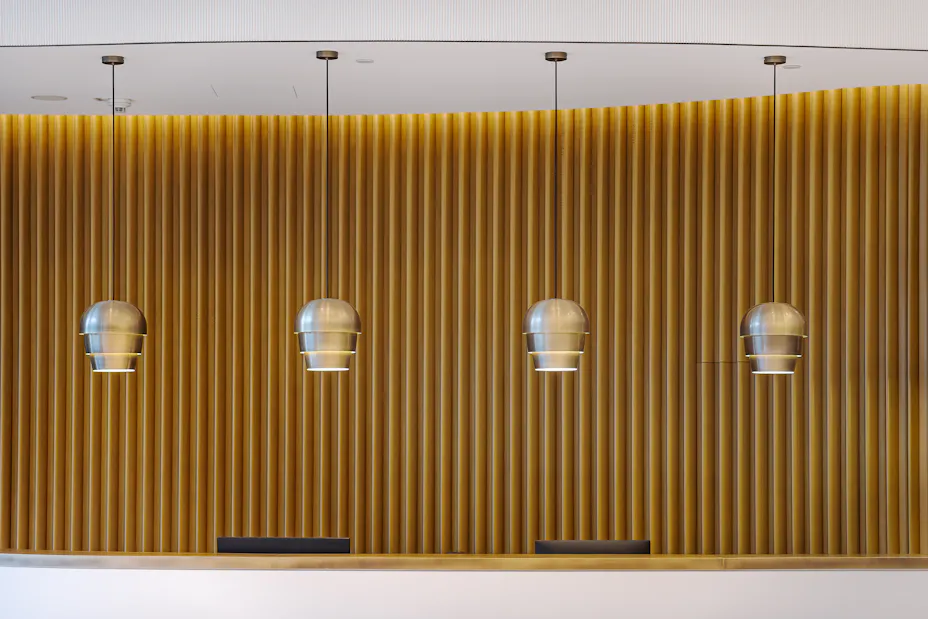

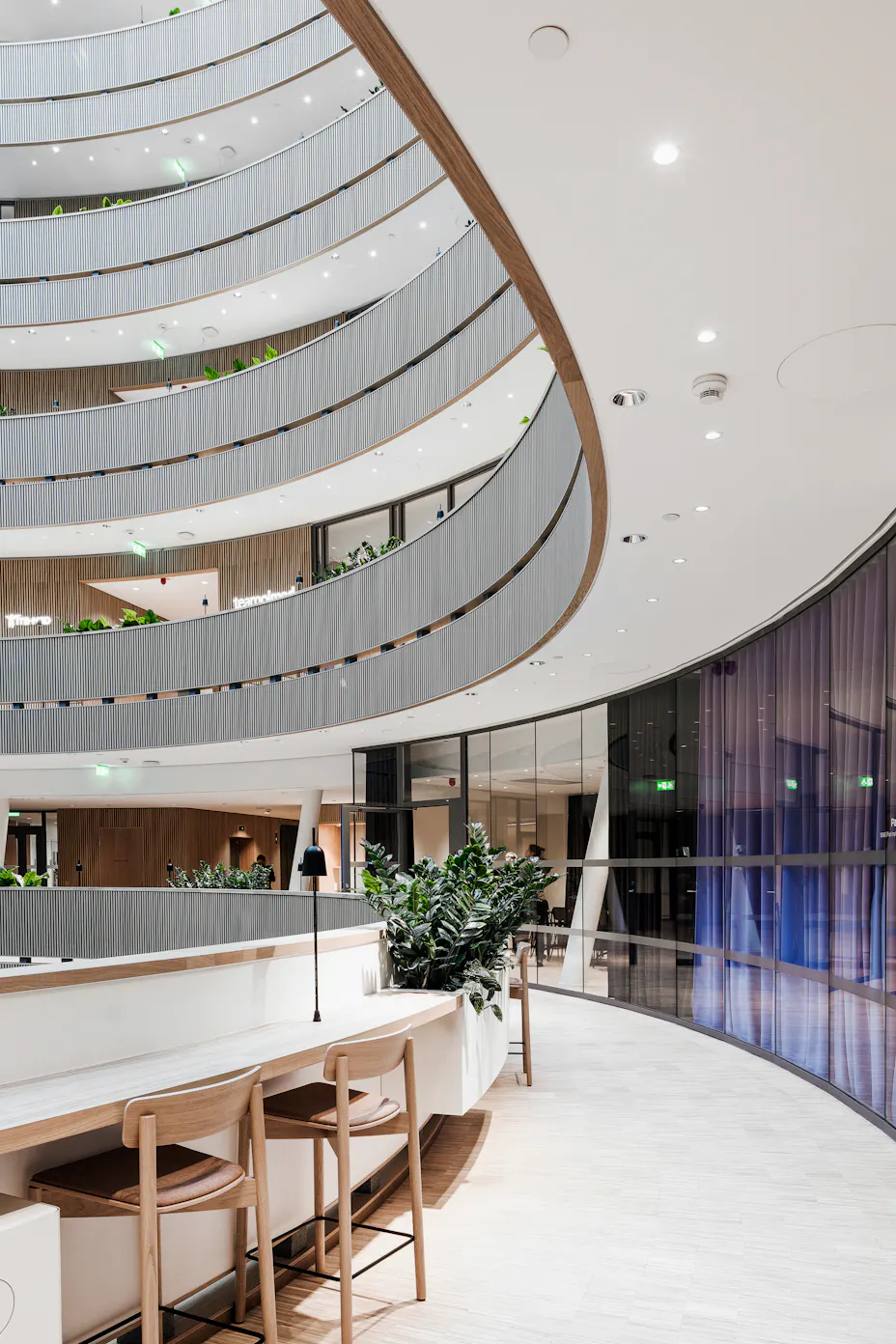

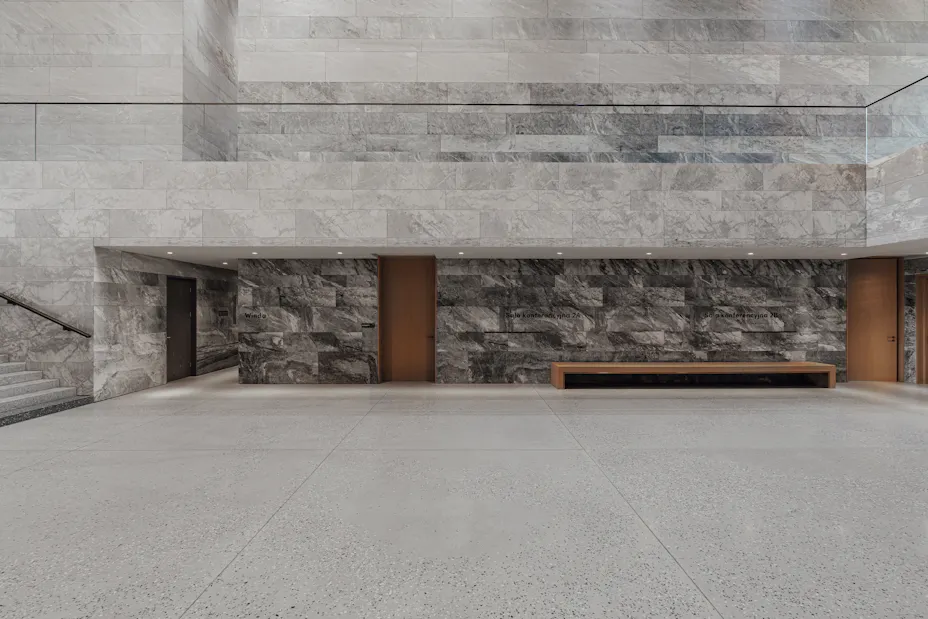

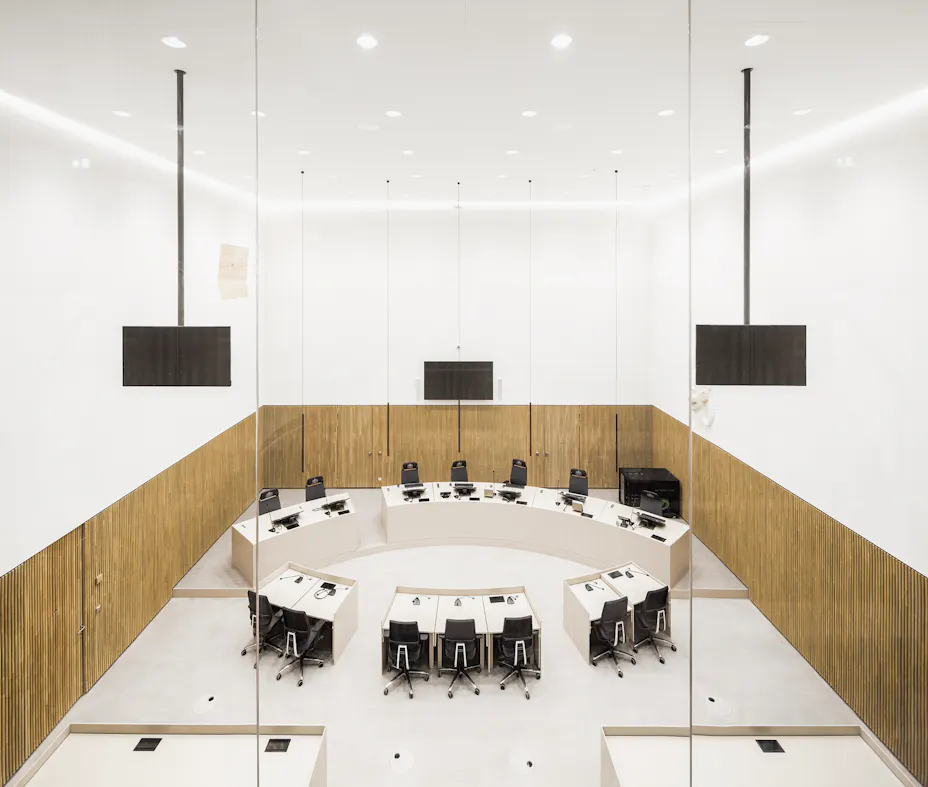

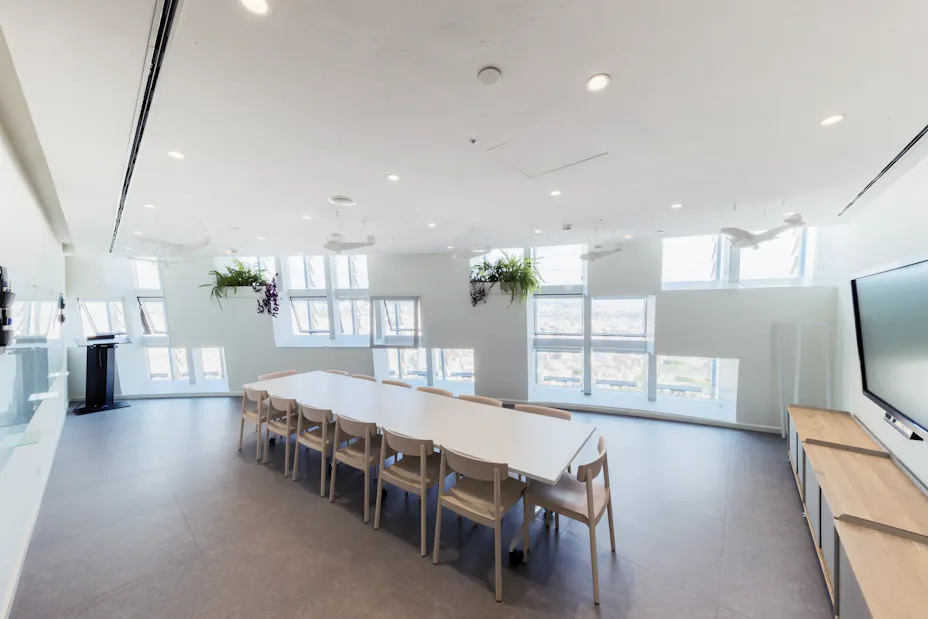

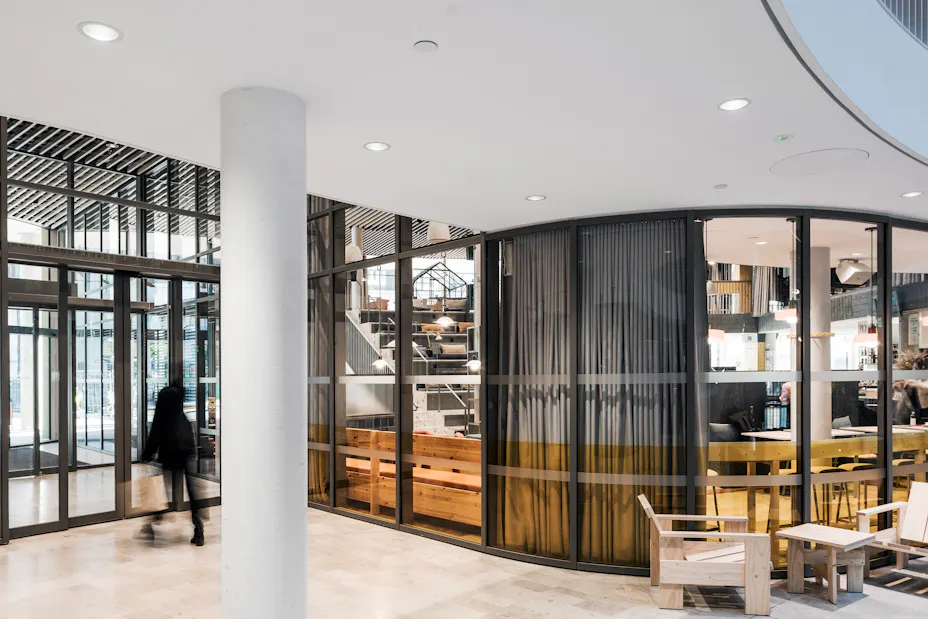

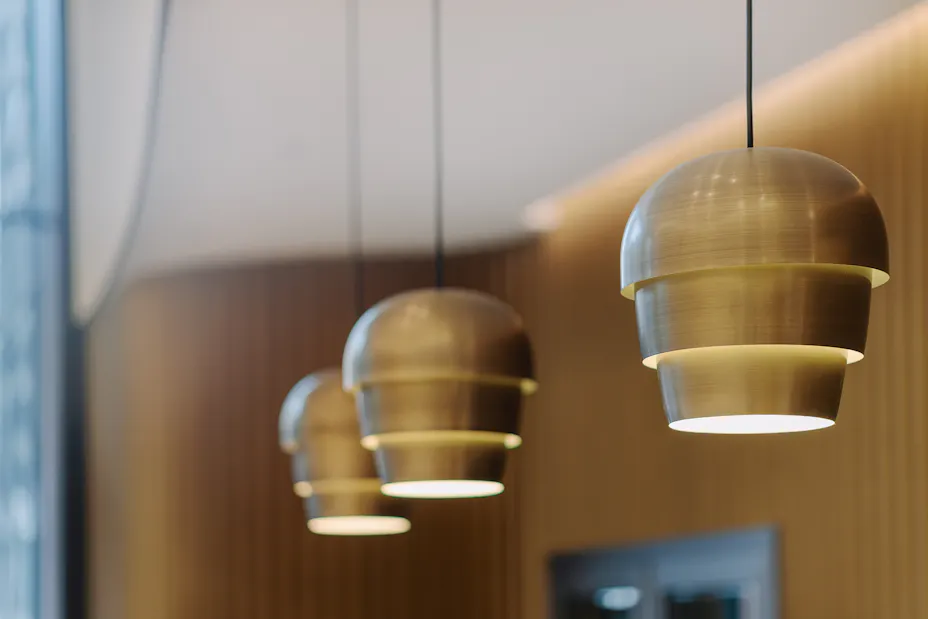

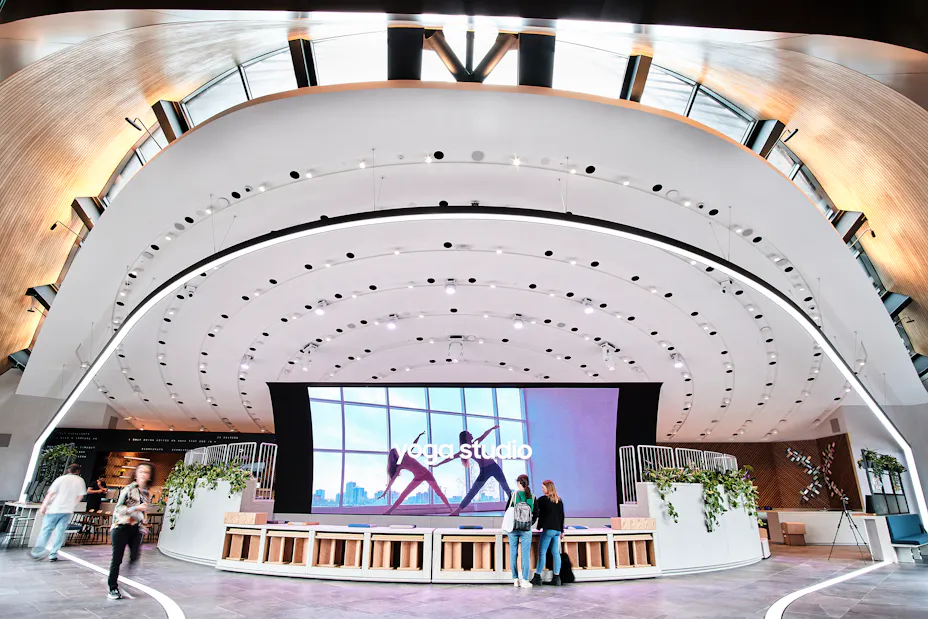

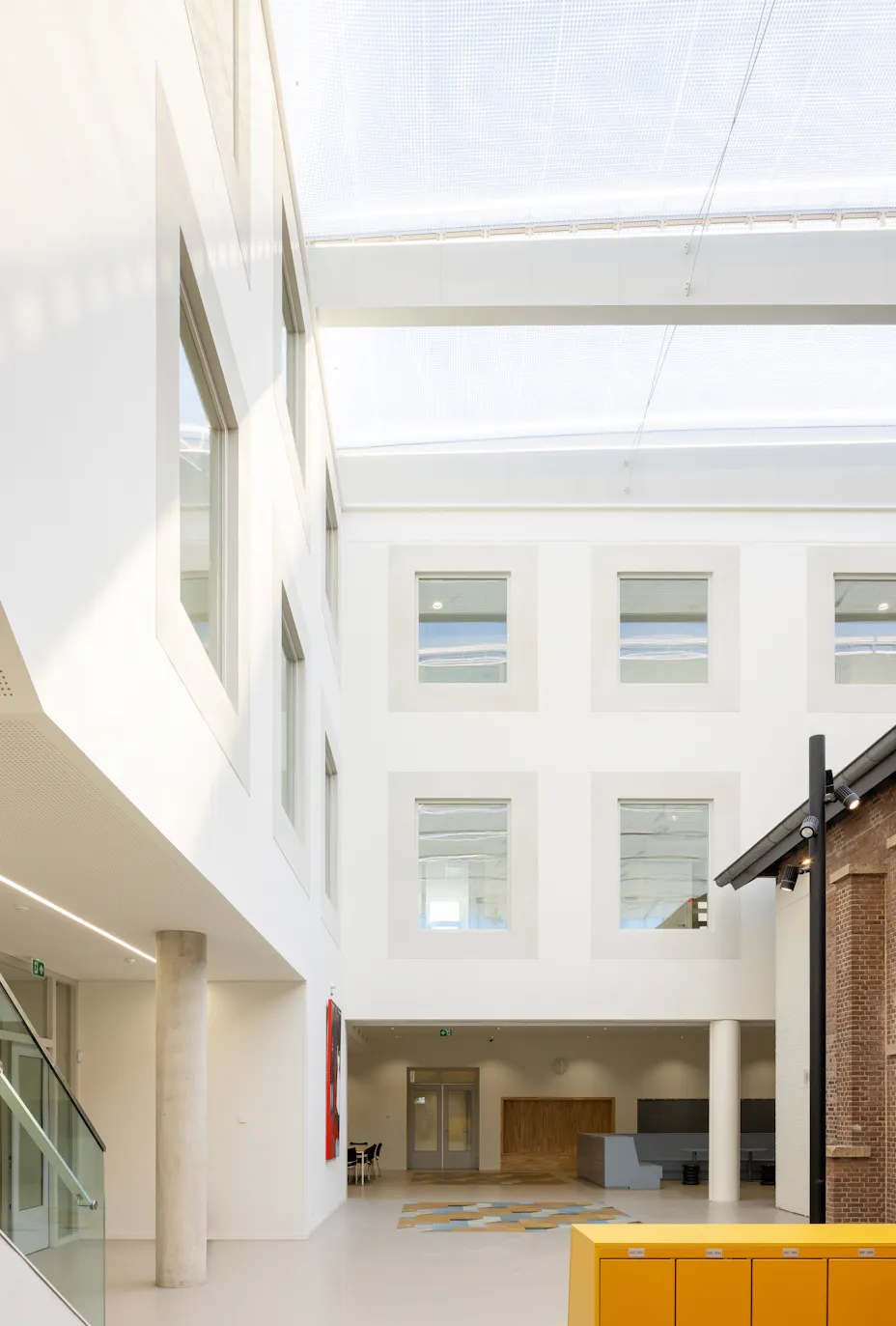

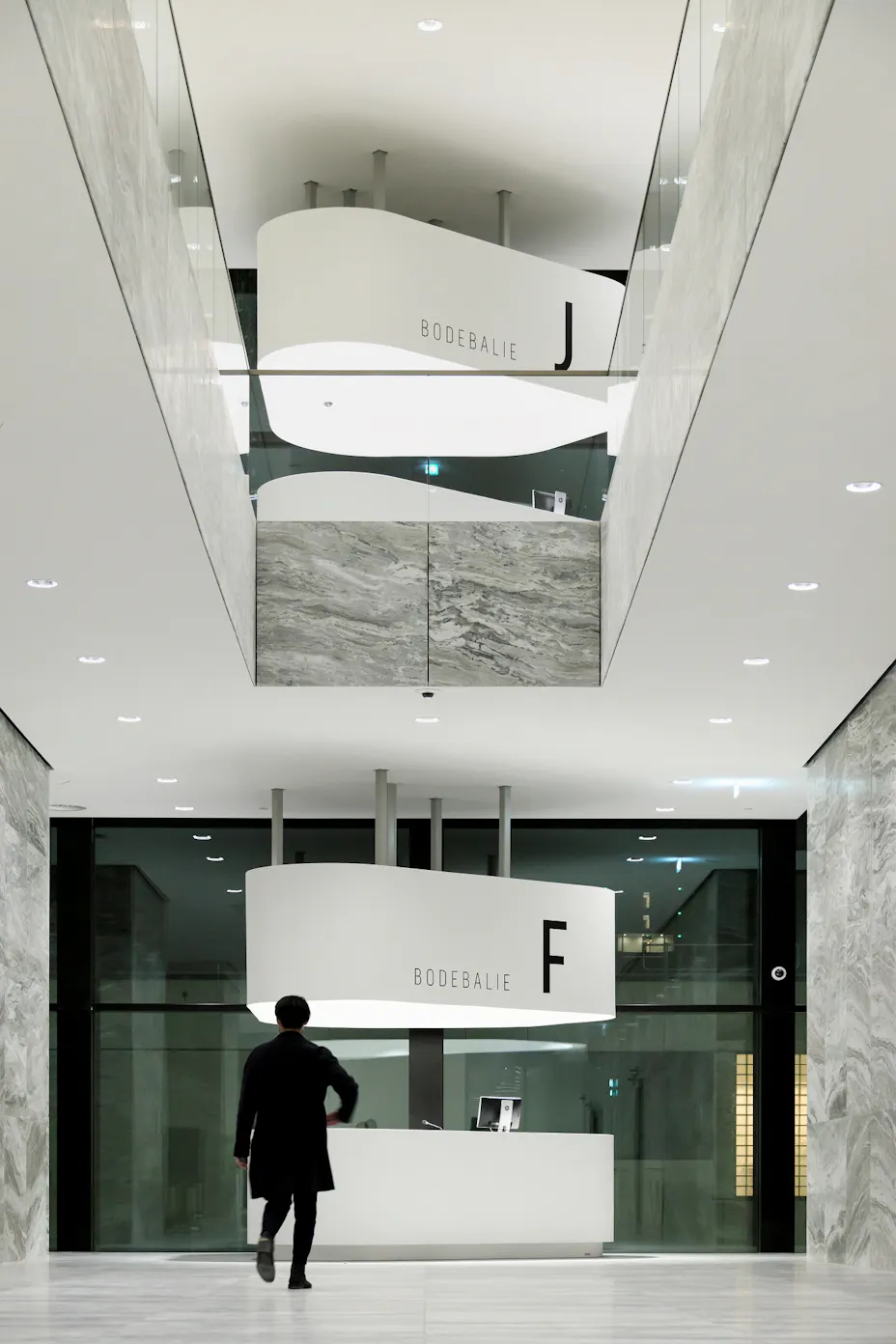

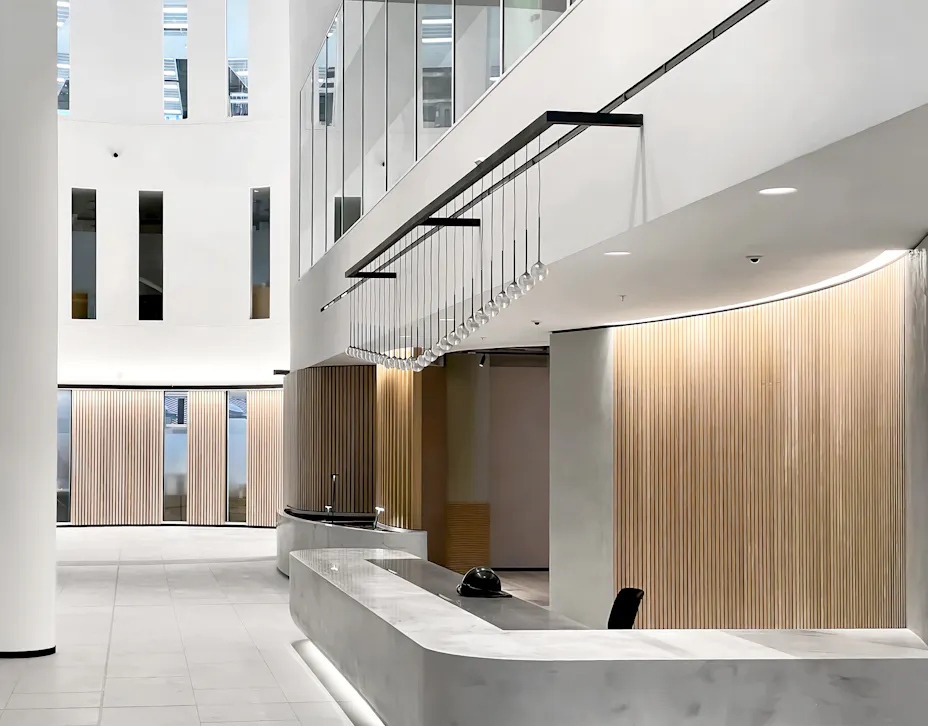

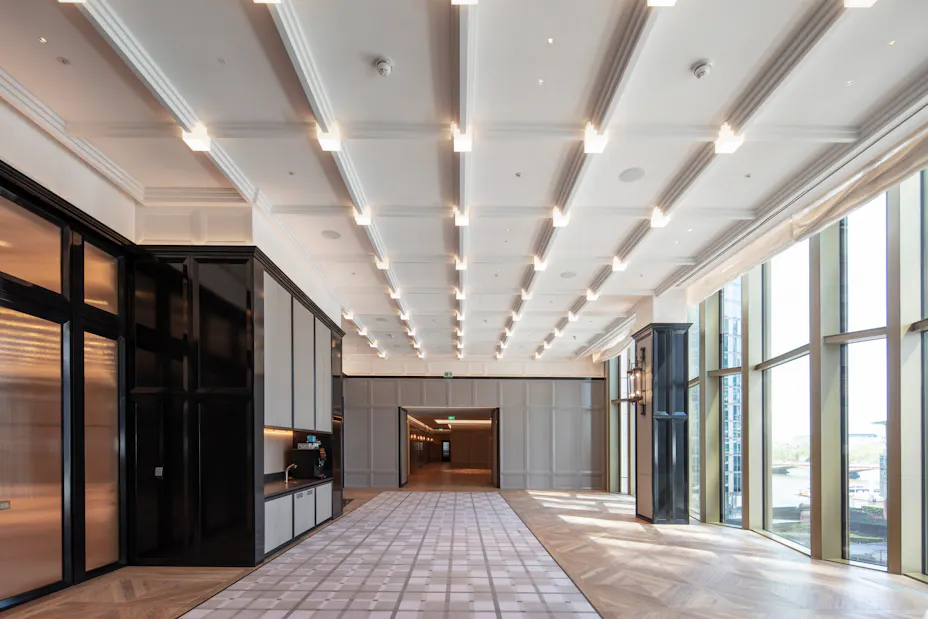

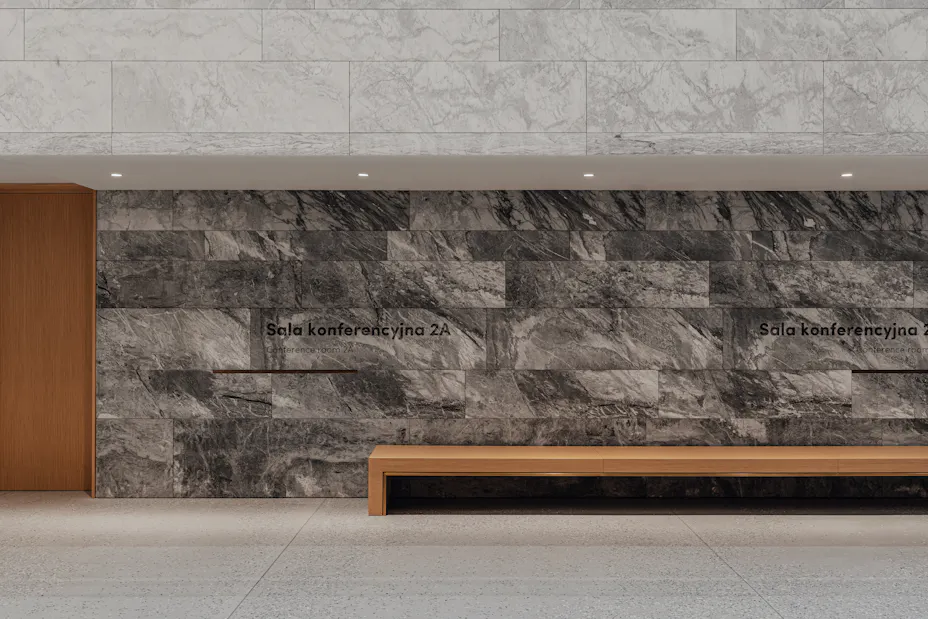

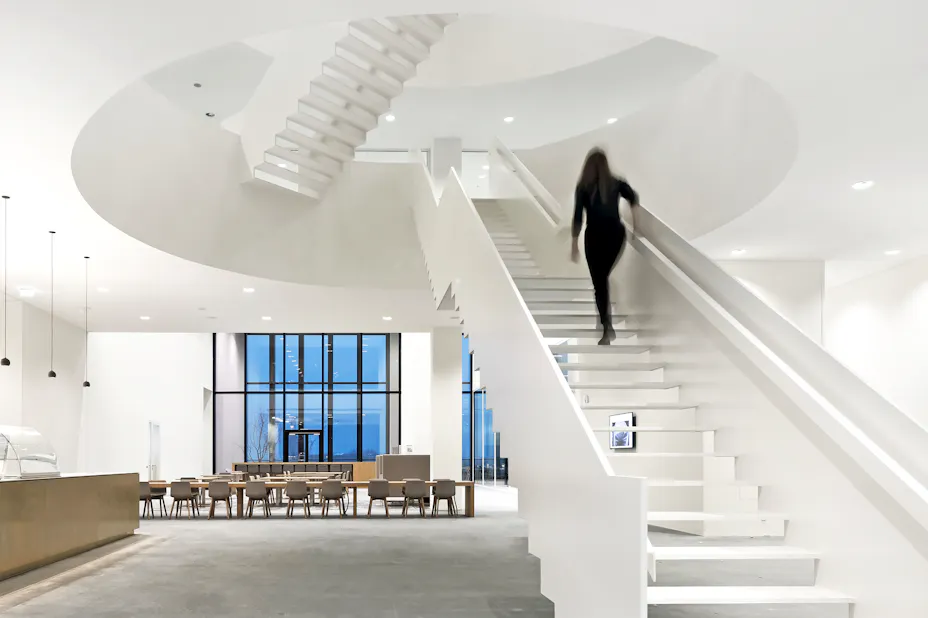

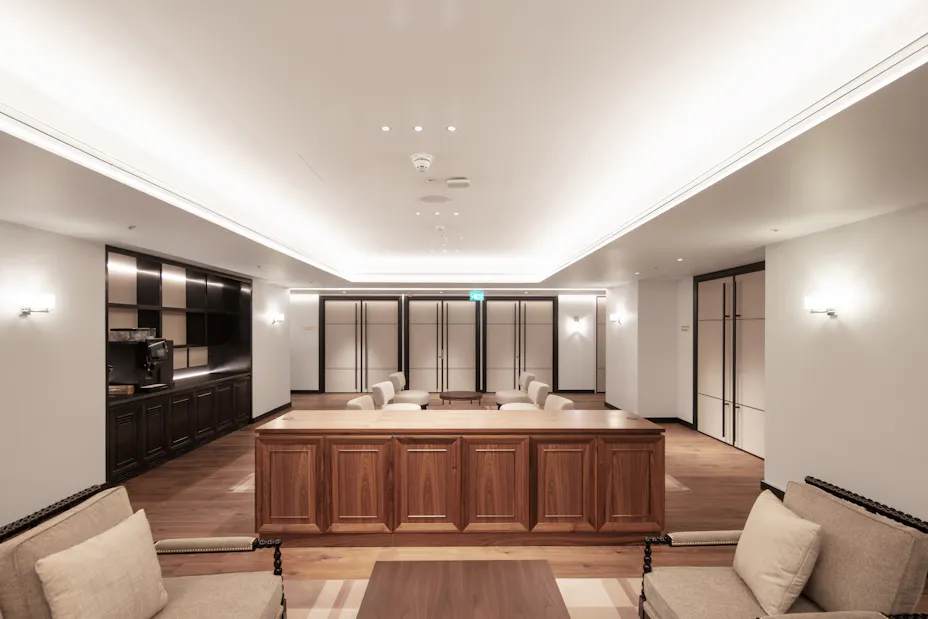

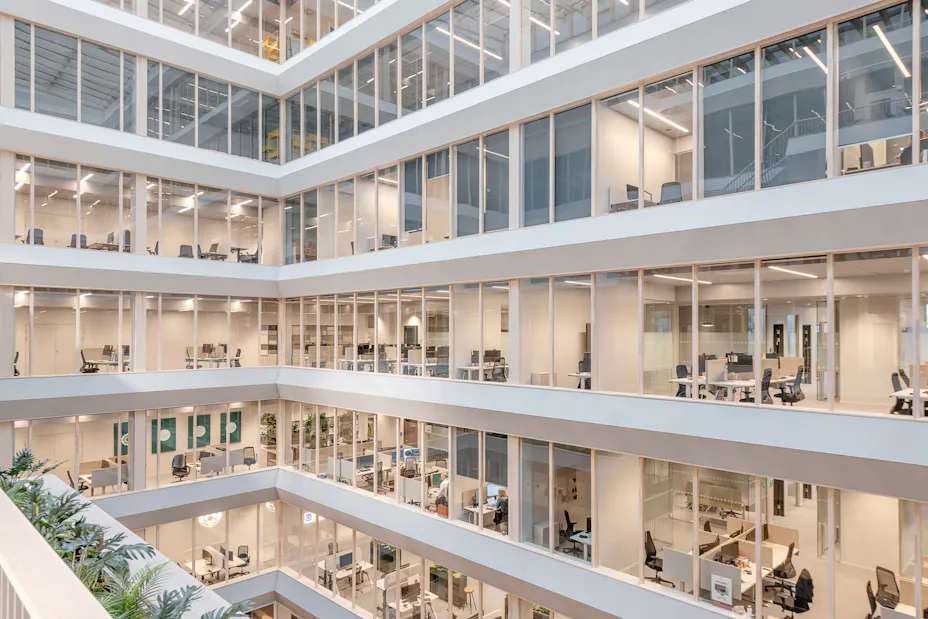

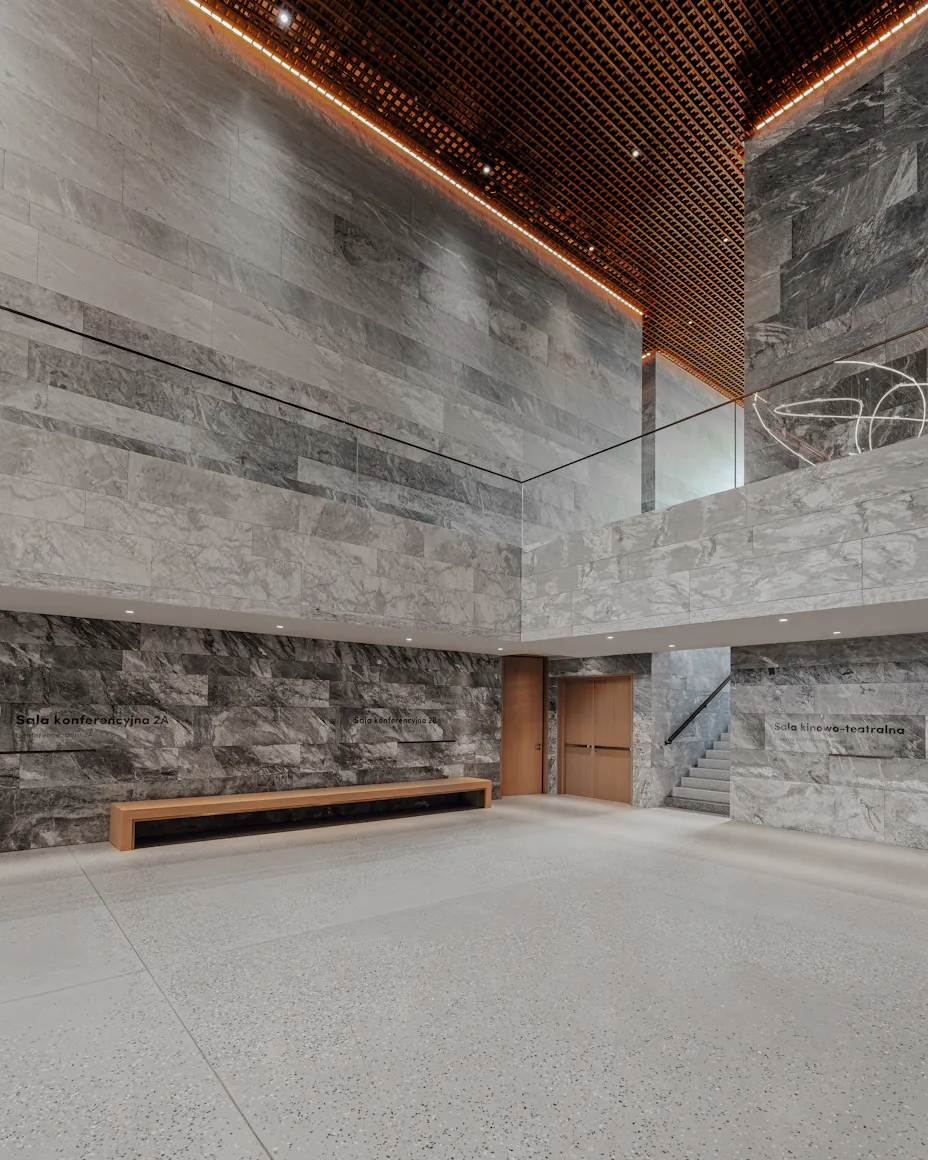

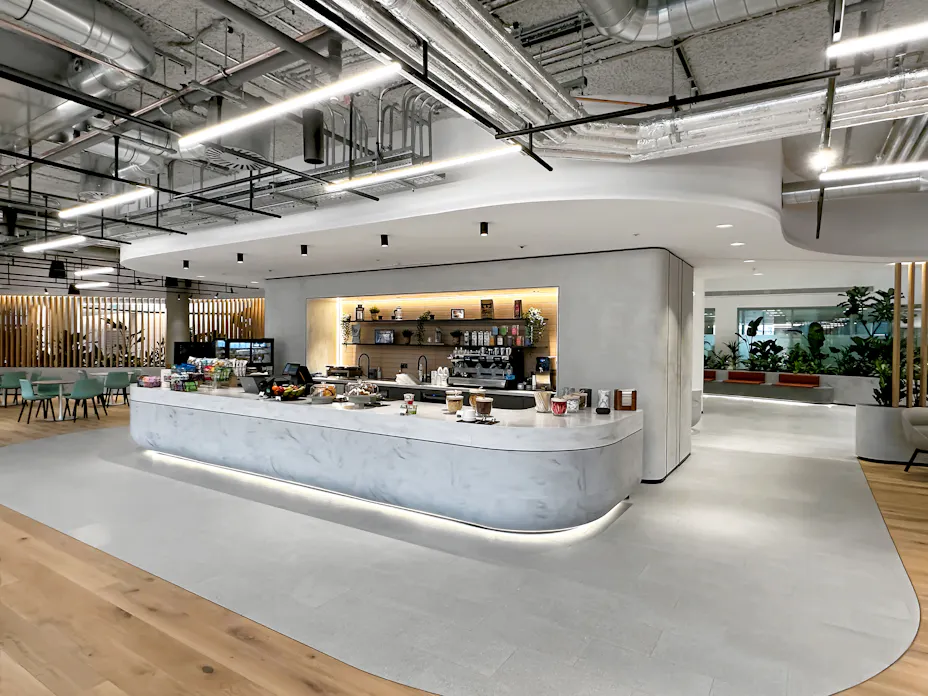

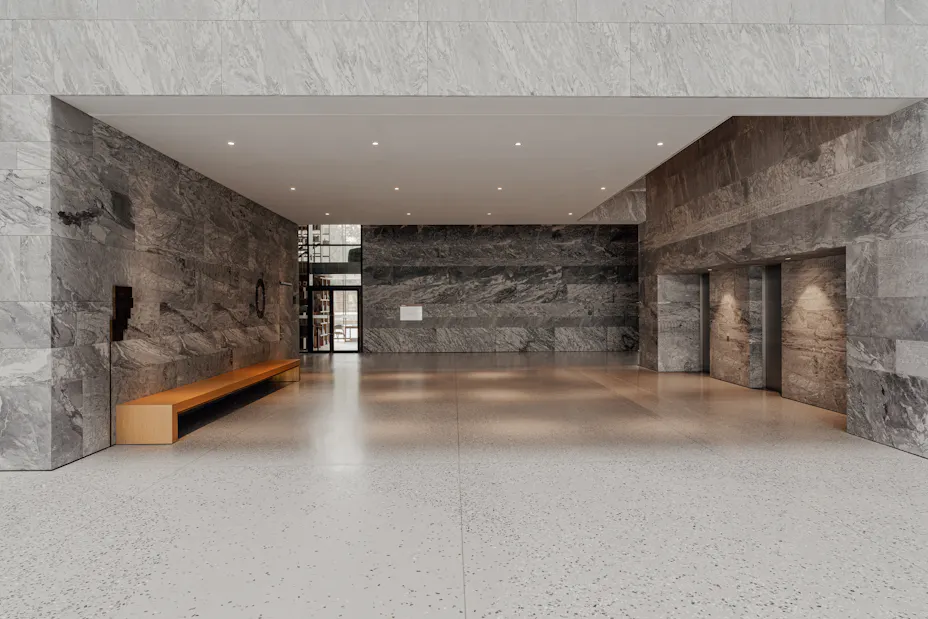

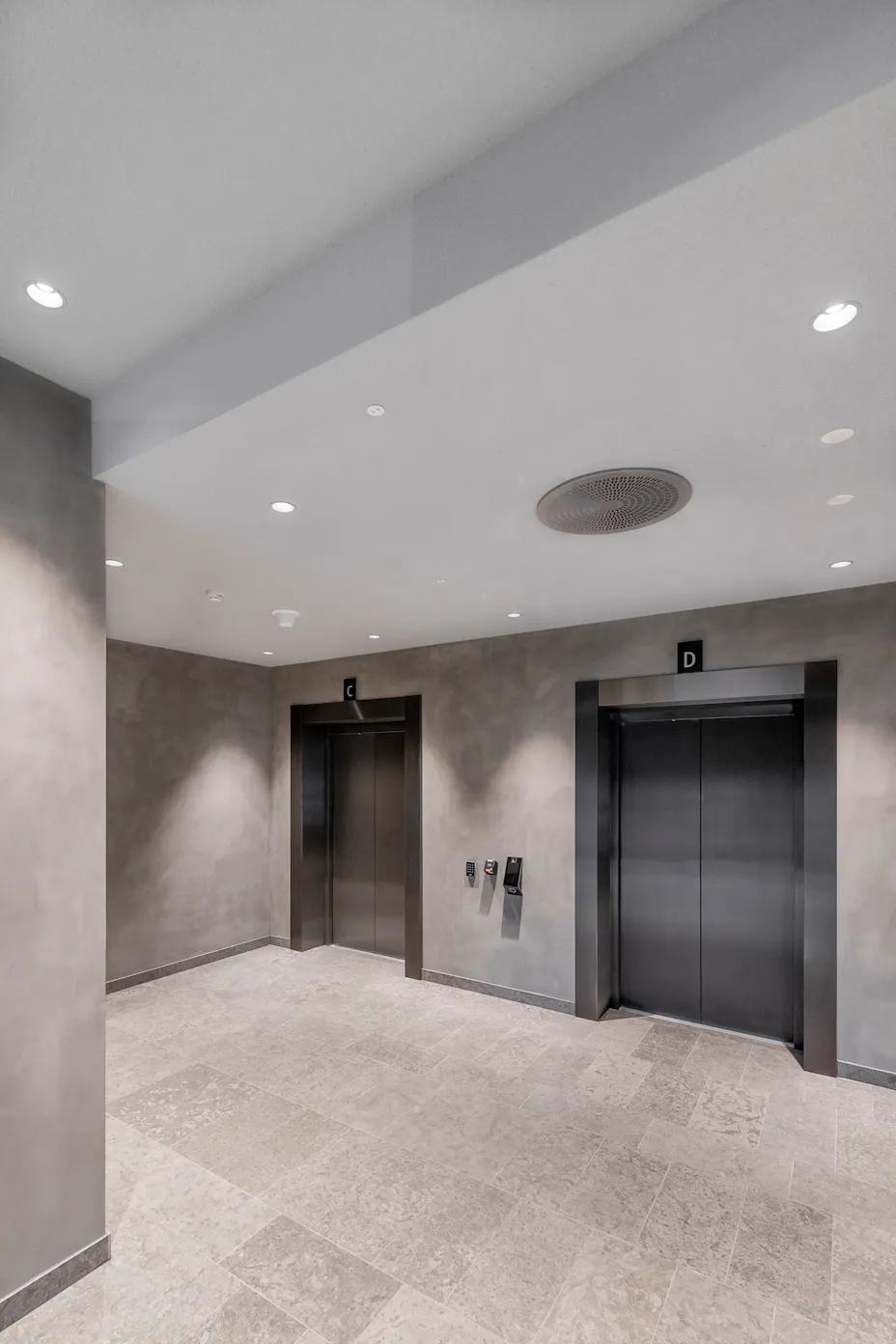

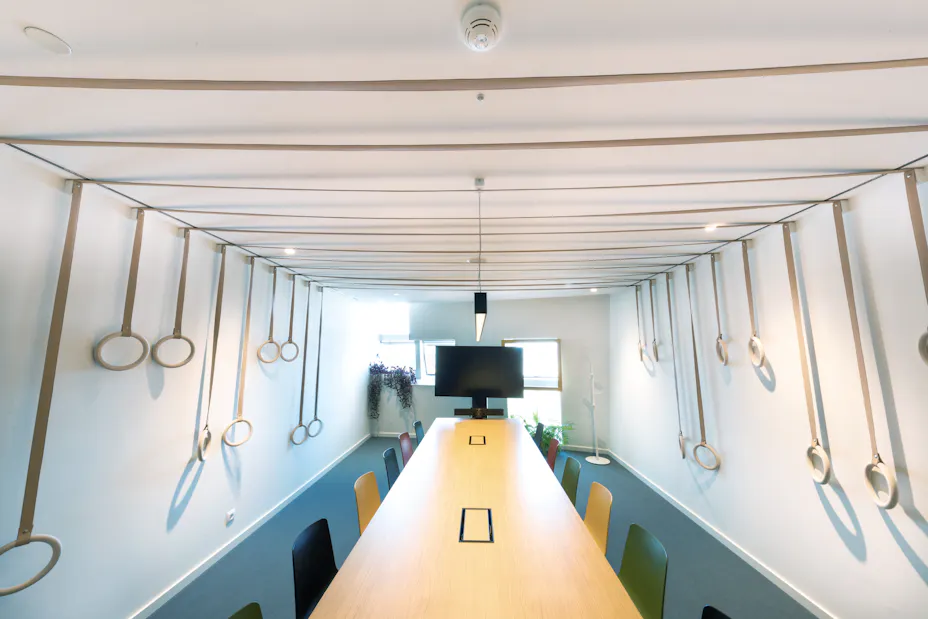

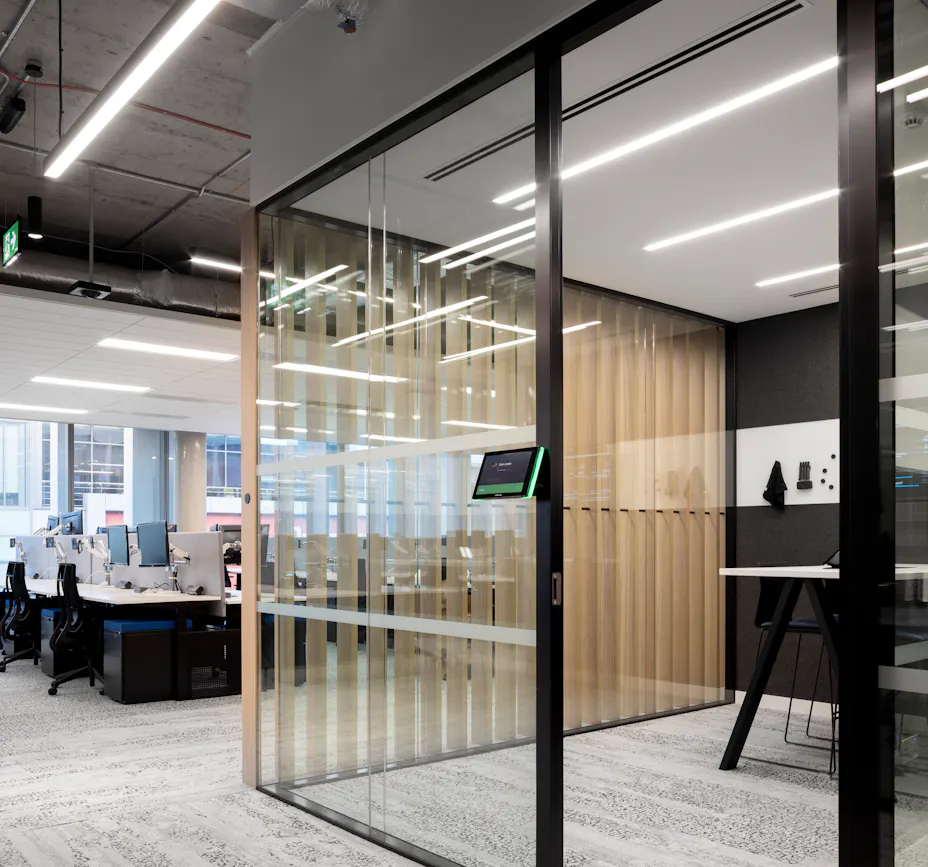

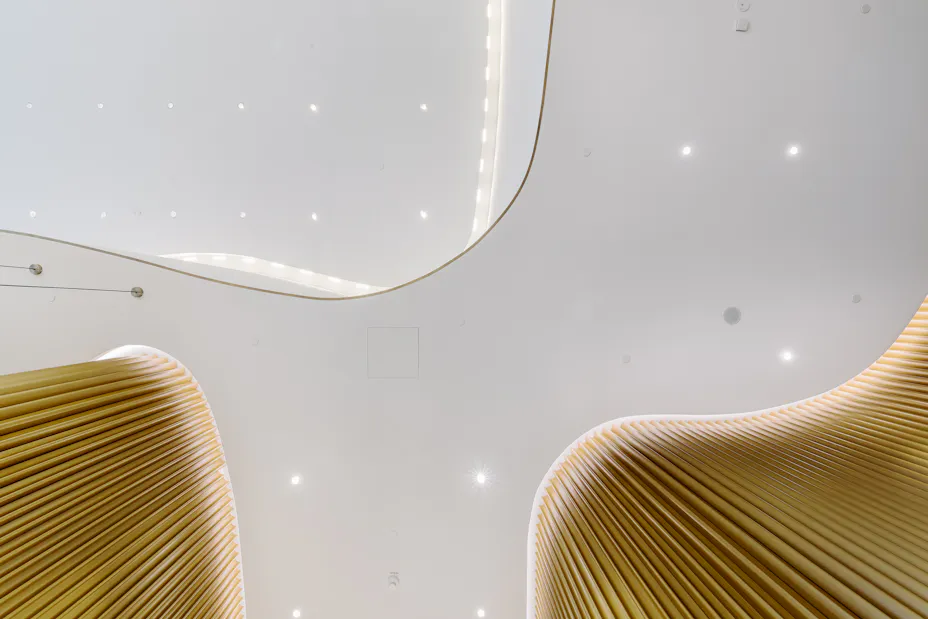

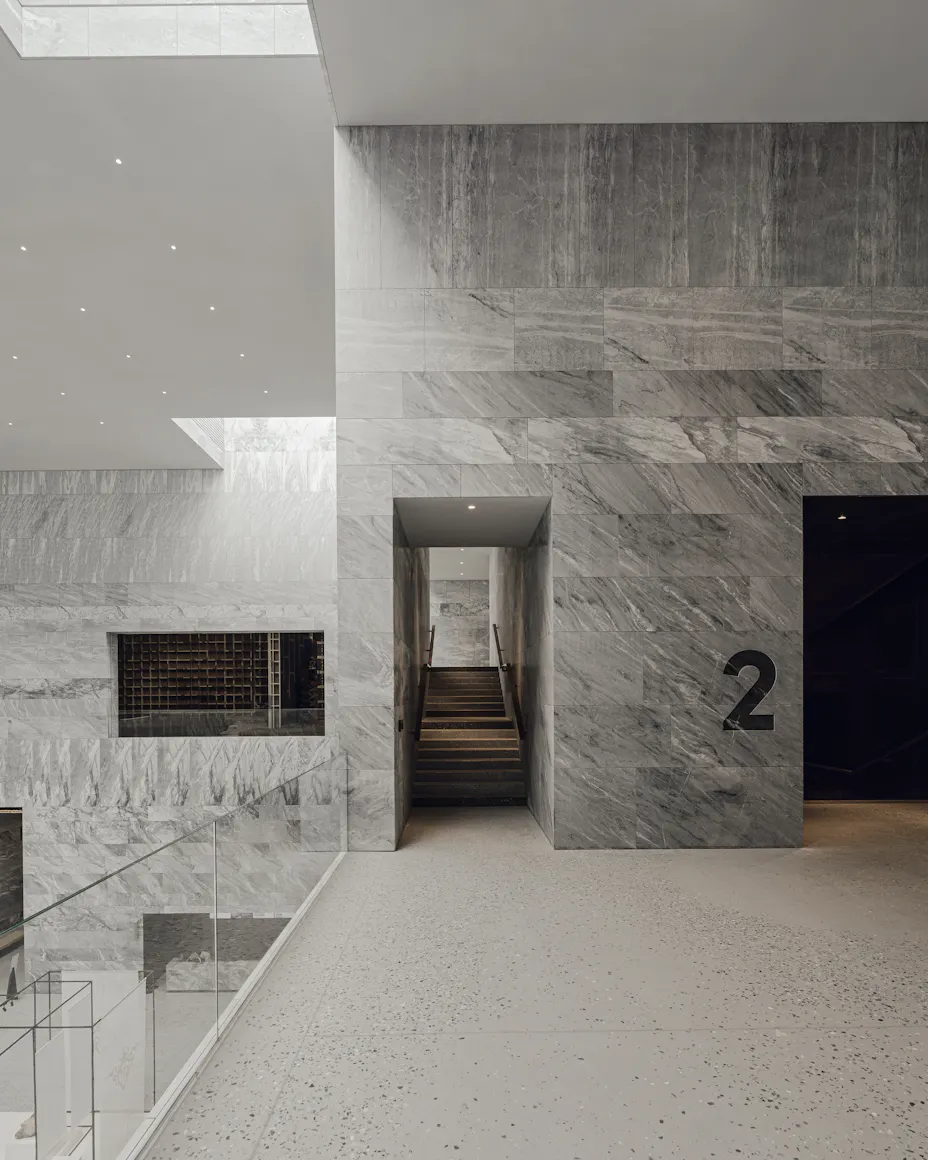

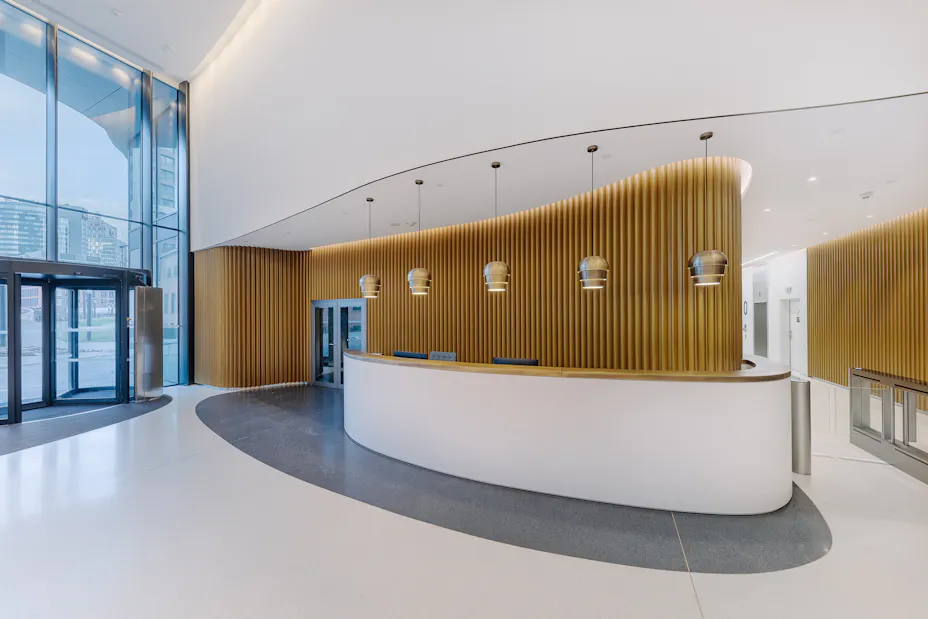

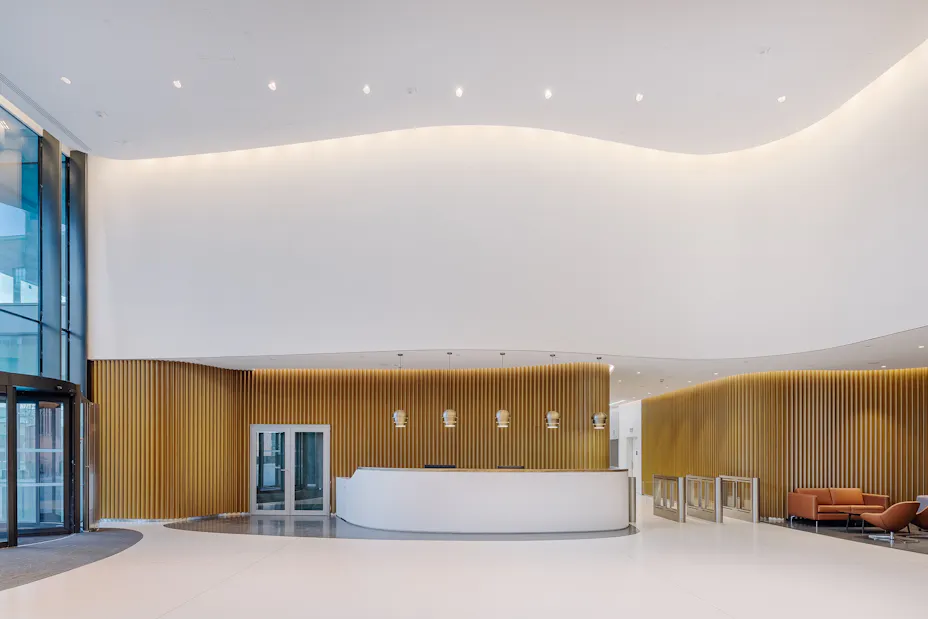

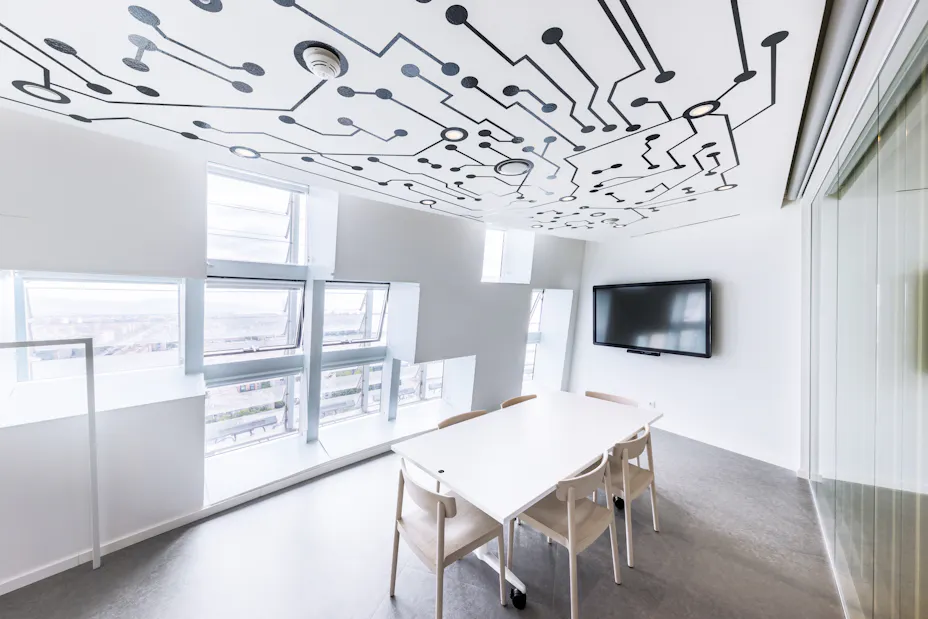

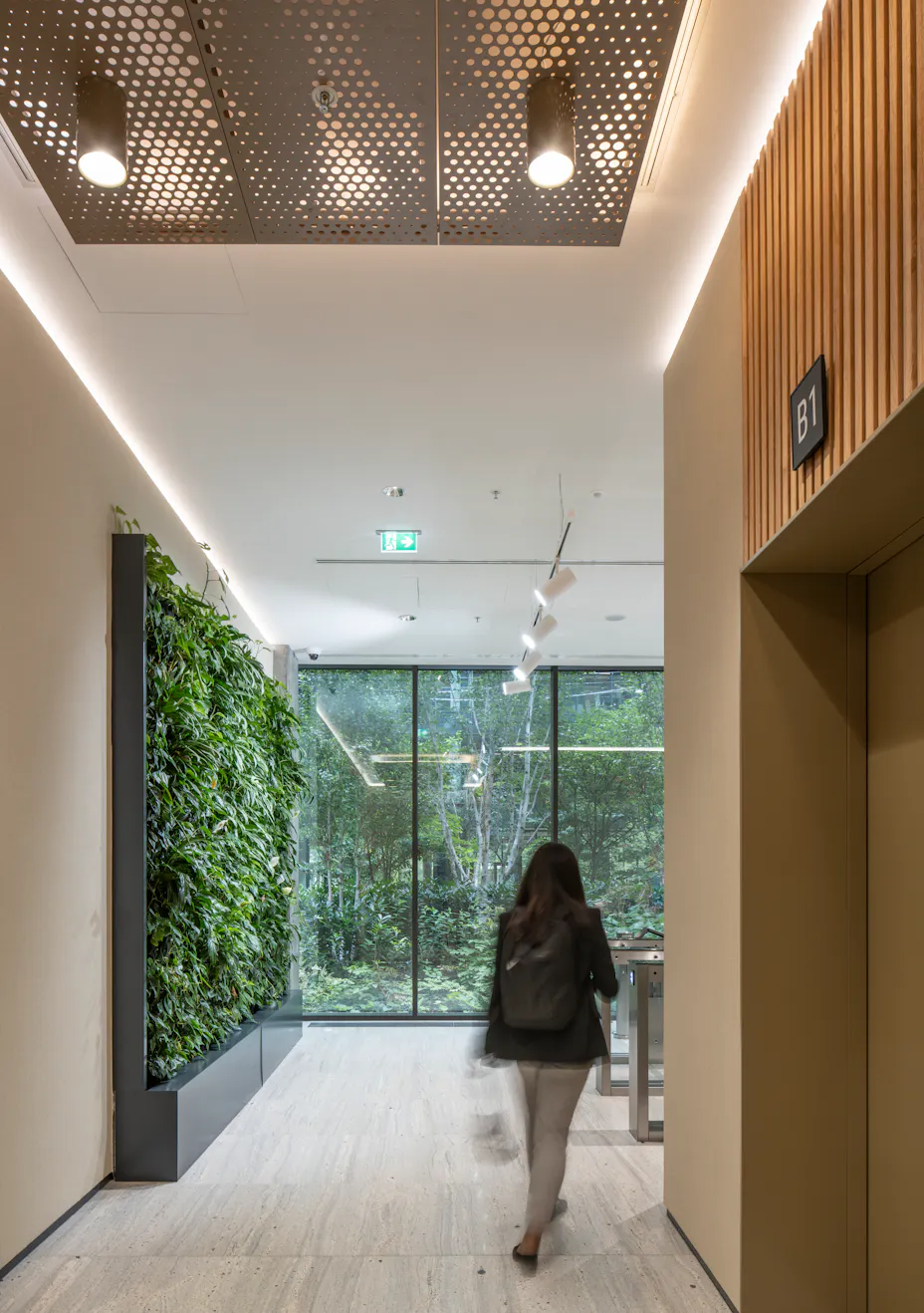

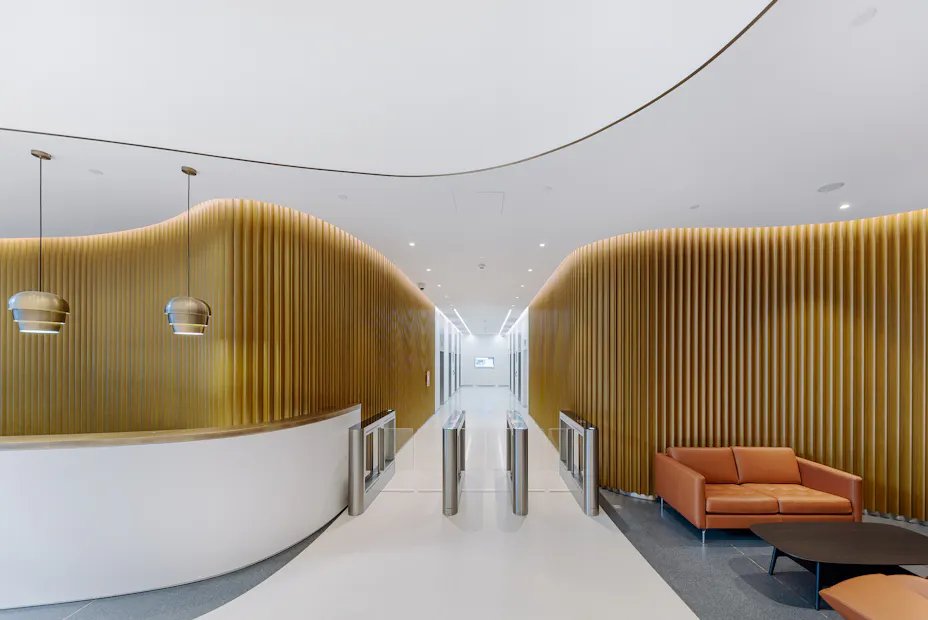

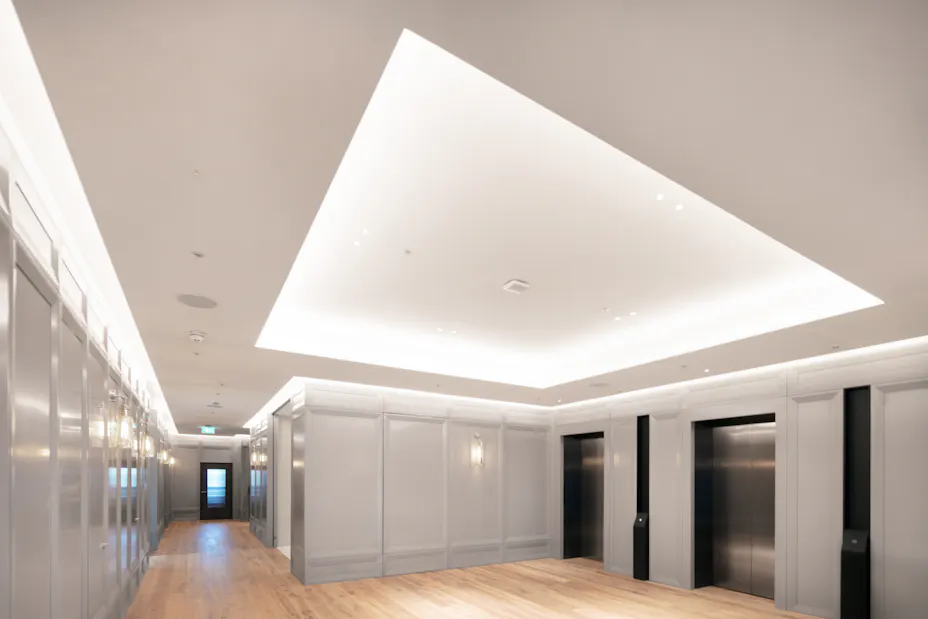

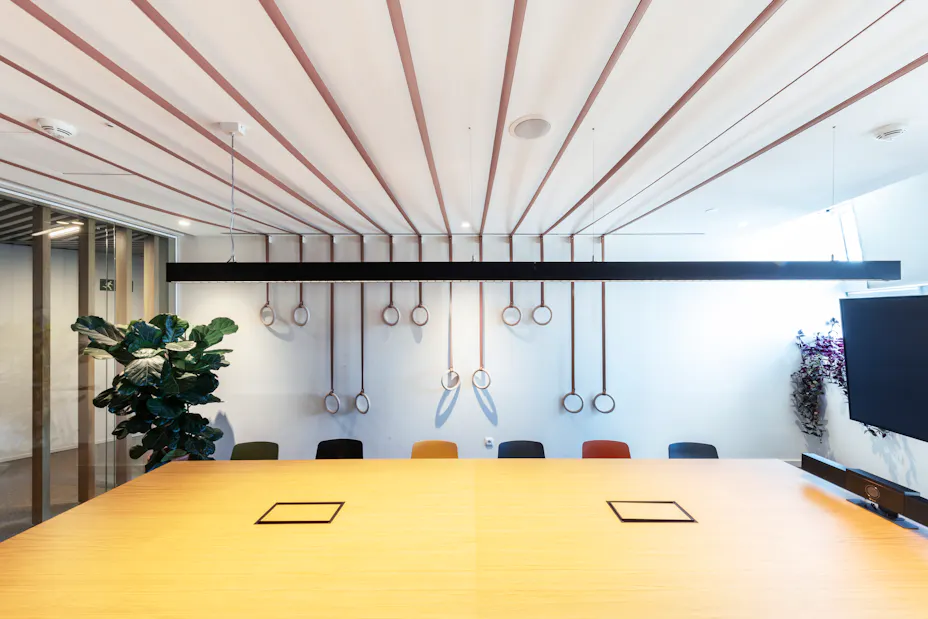

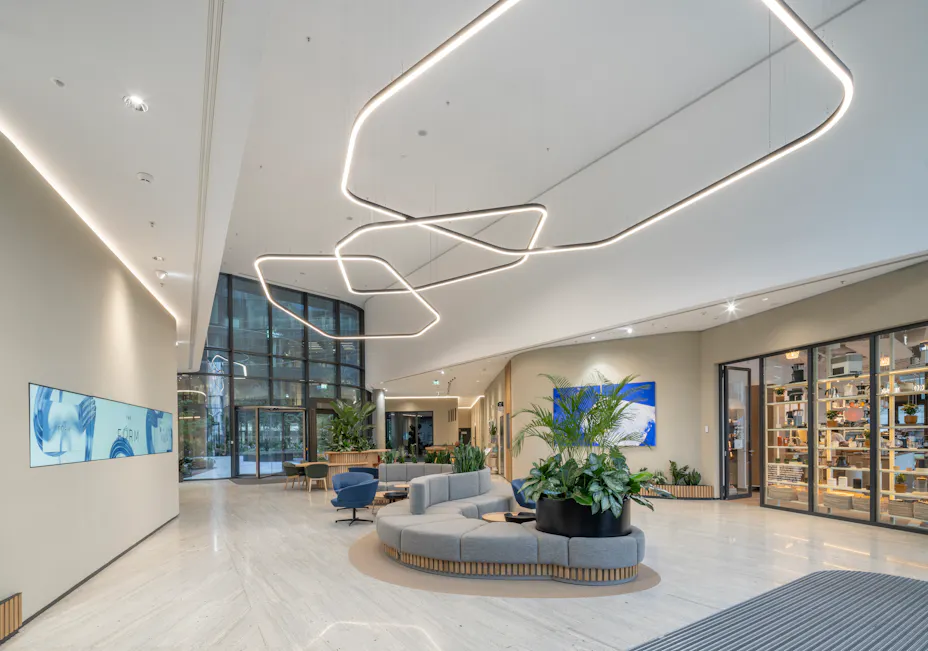

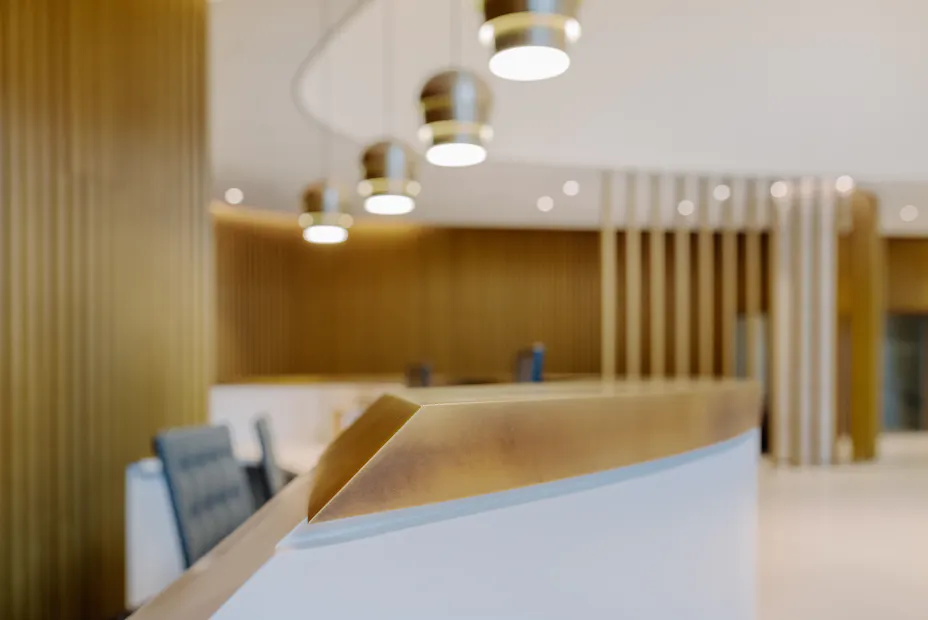

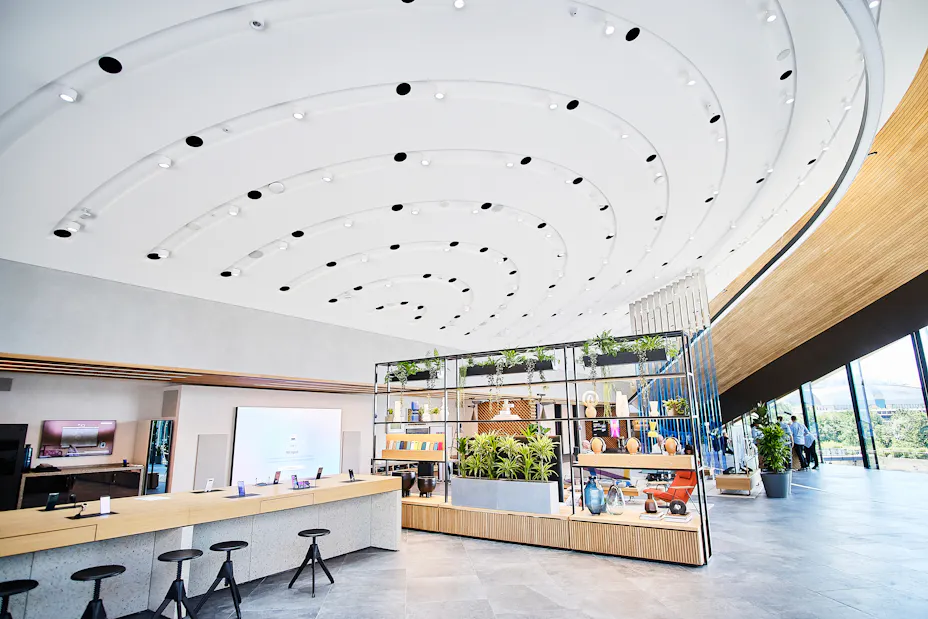

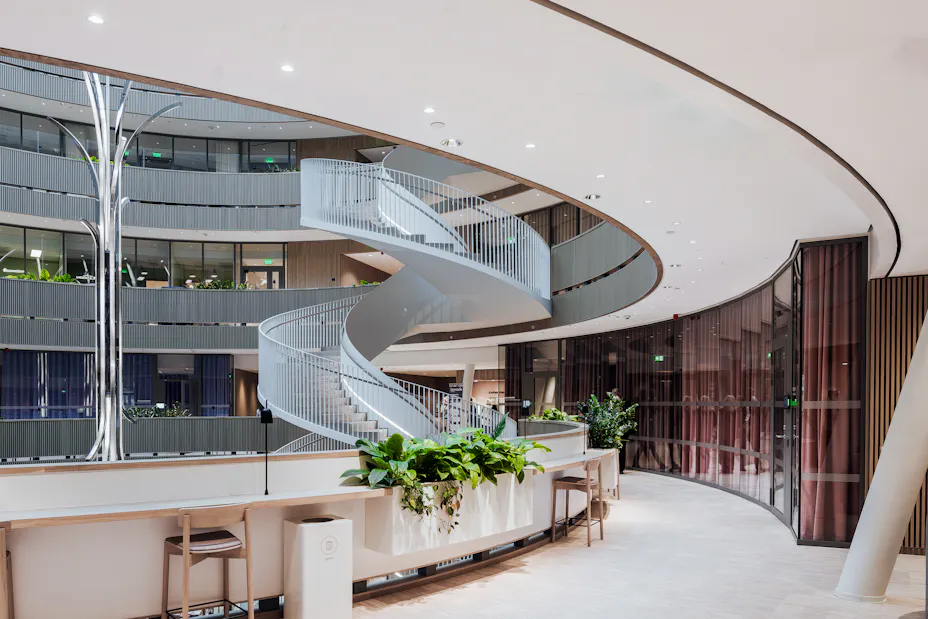

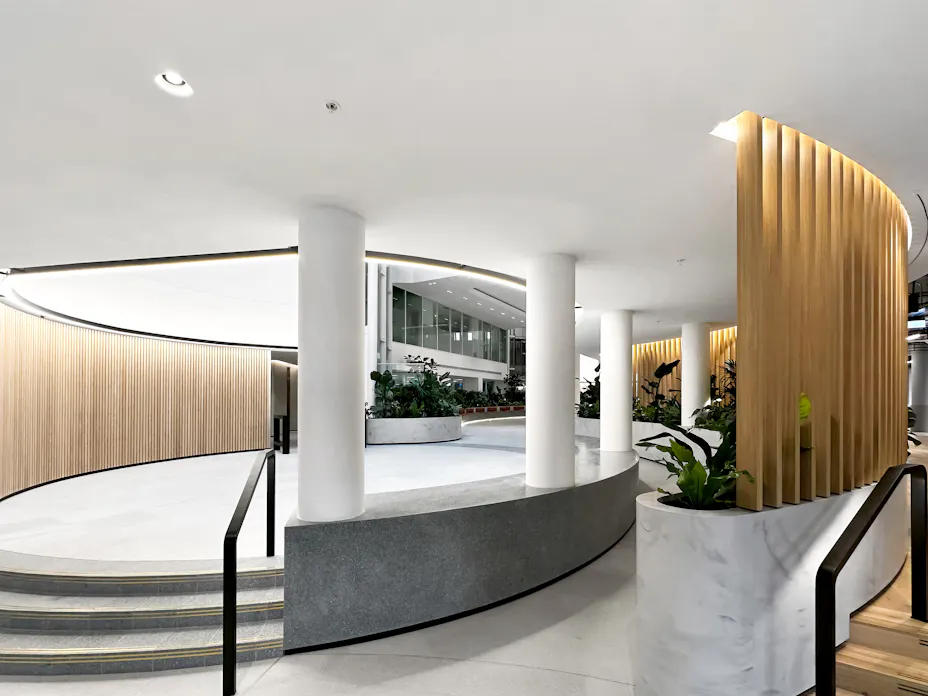

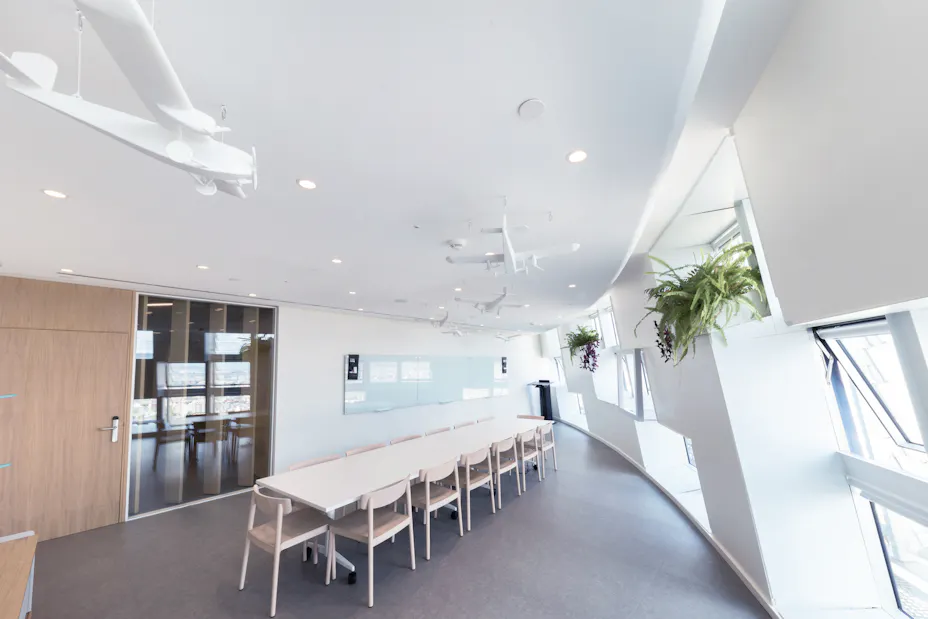

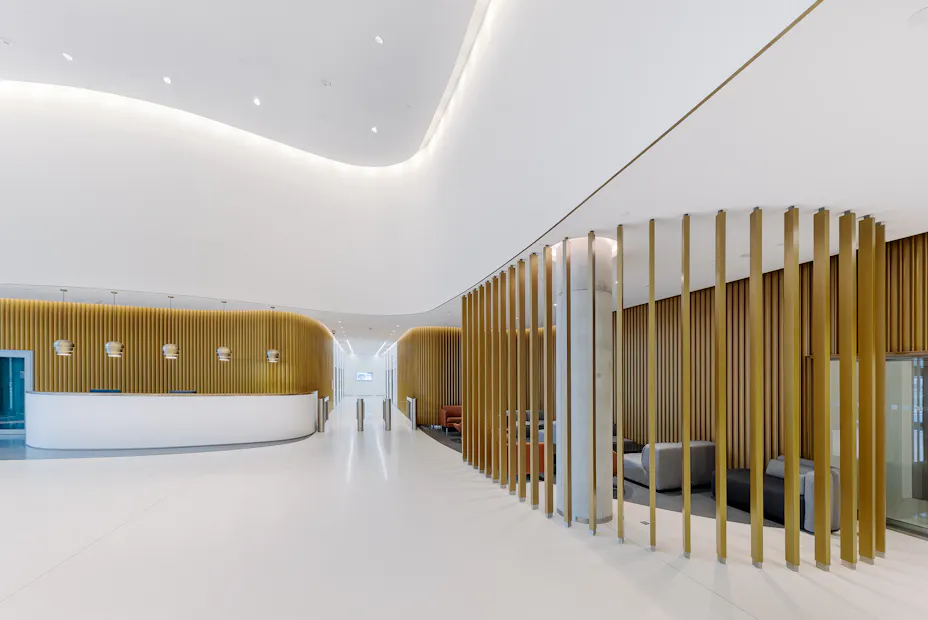

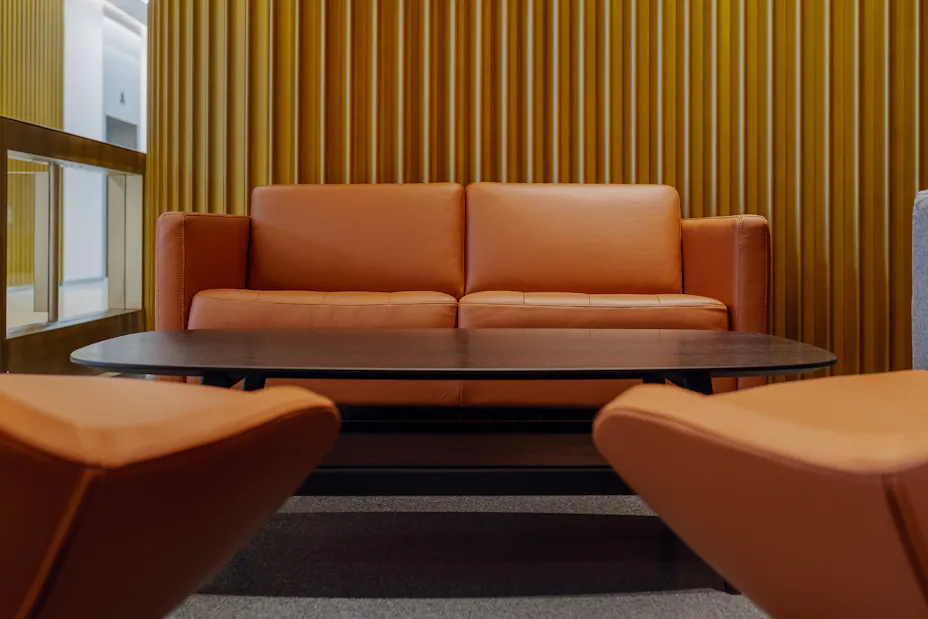

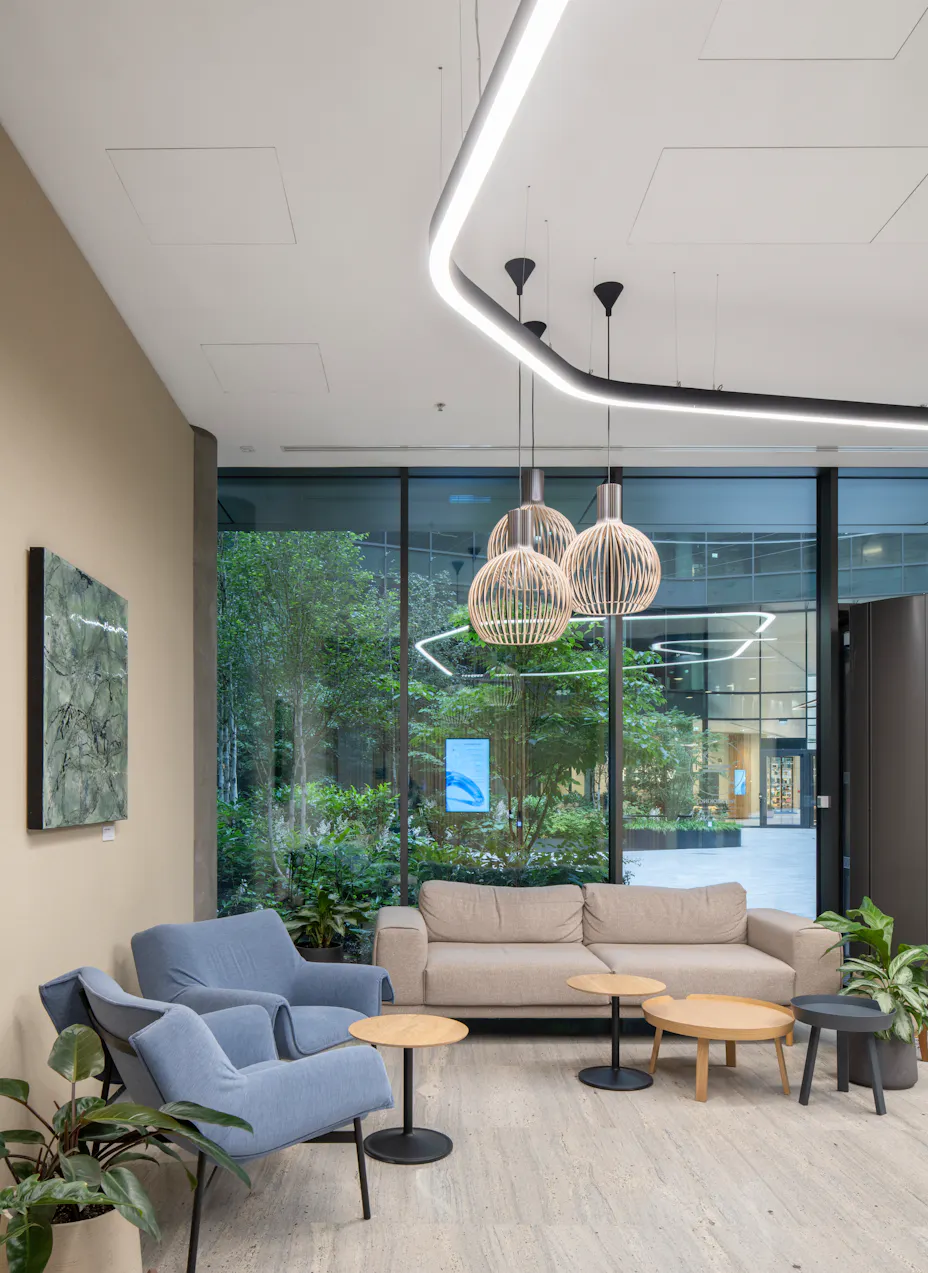

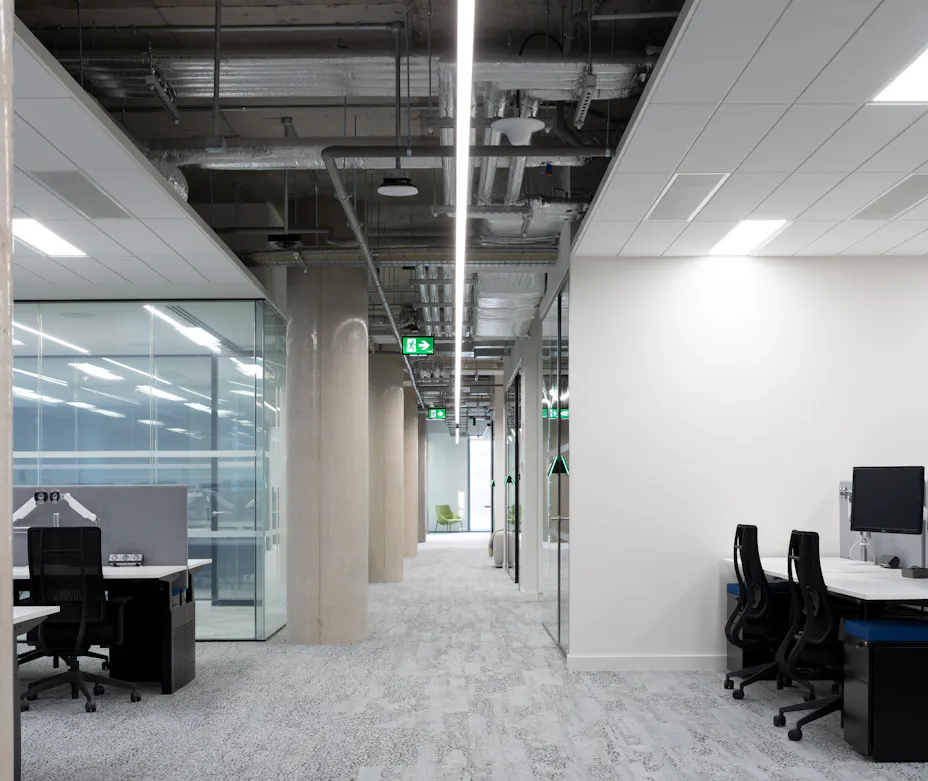

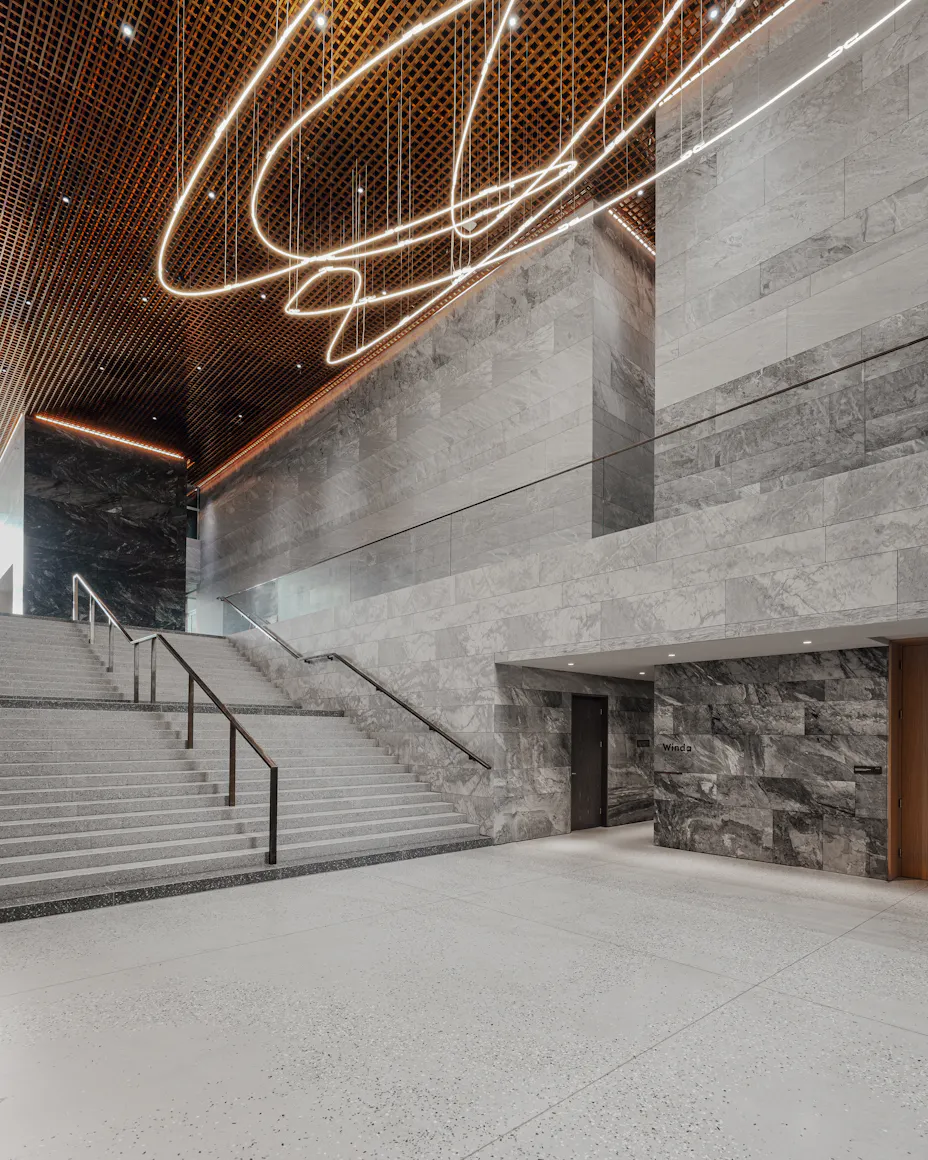

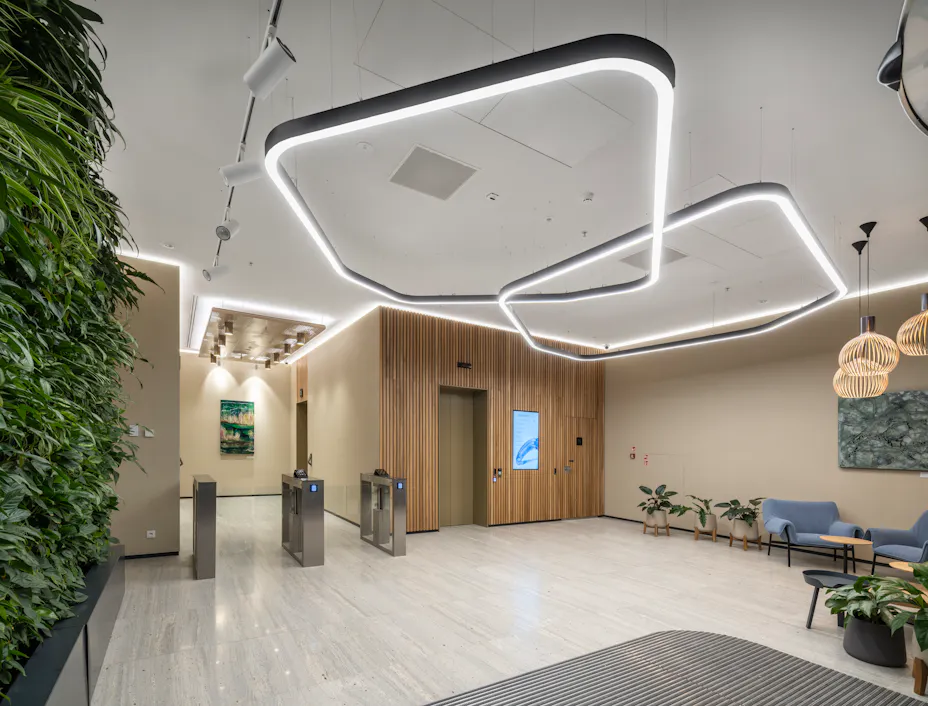

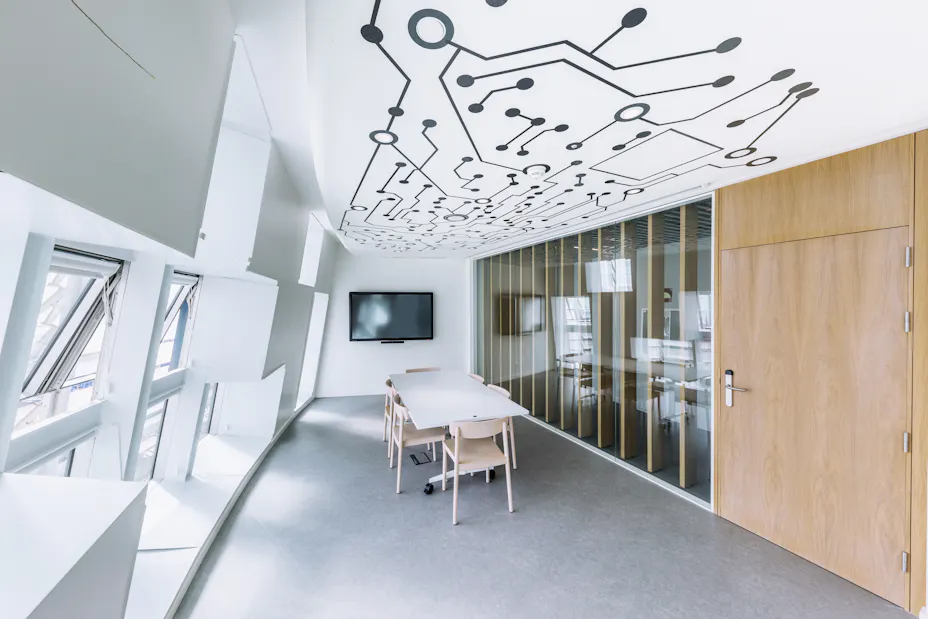

Case studies featuring Rockfon® Mono Acoustic

1/117
Back

Sound Absorption

Practical Sound Absorption Coefficient (αp)
Edge Thickness Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz Class αw NRC
TE Elegant Render 40mm 200mm 0.45 0.65 0.85 0.90 1.00 1.00 A 0.90 0.80

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve

Product Specifications

Reaction To Fire Reaction To Fire A2-s1,d0, B-s1,d0 (Colour)
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 87% light reflection (White) >99% light diffusion (White) Colour-dependent (Colour)
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Visual Appearance Visual Appearance L value: 94.5 (White)
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
TE Elegant Render 1800 x 1200 40 6.00 0

Sound Absorption

αw 0.90
NRC 0.80
Class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 8.64 m2

For this product, module size = exact dimension. Panel weight is stated exclusive of filler and render.
Do not install Rockfon Mono Acoustic where a pressure difference can be created between the front and backside of a Rockfon Mono Acoustic ceiling.
Rockfon Mono Acoustic Direct and Rockfon Mono Acoustic Flecto can only be installed directly onto an airtight surface.

Back

Sound Absorption

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 8.64 m2
