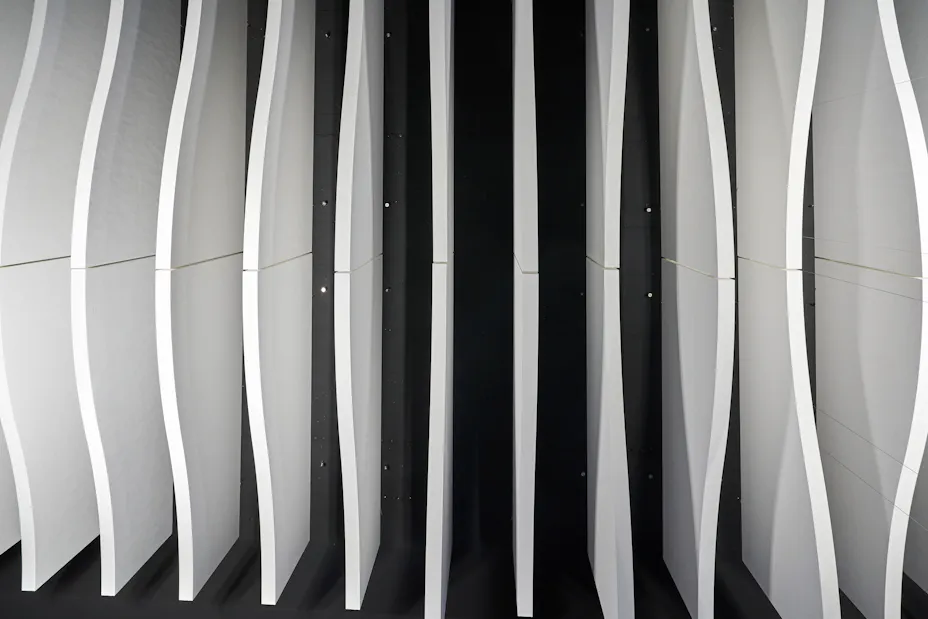

Rockfon® Contour

Aesthetically superior, frameless acoustic baffles
Download Datasheet
Download Datasheet
Back
Very quick and easy to install

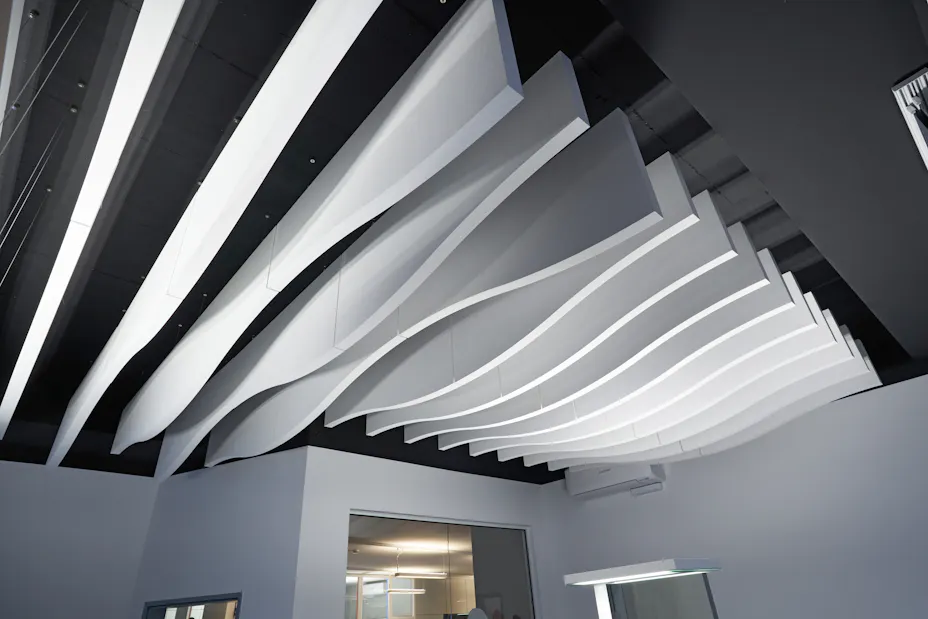

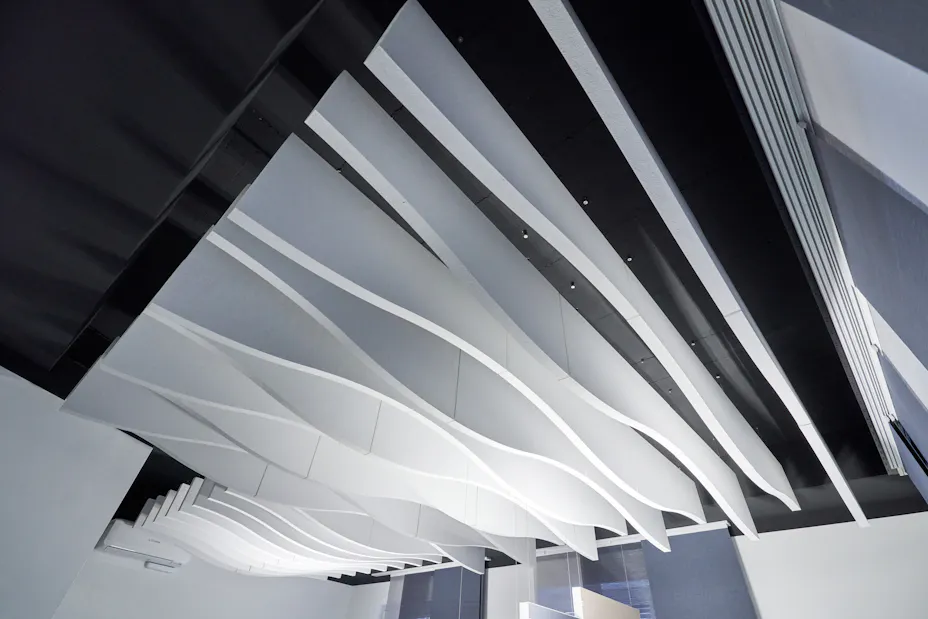

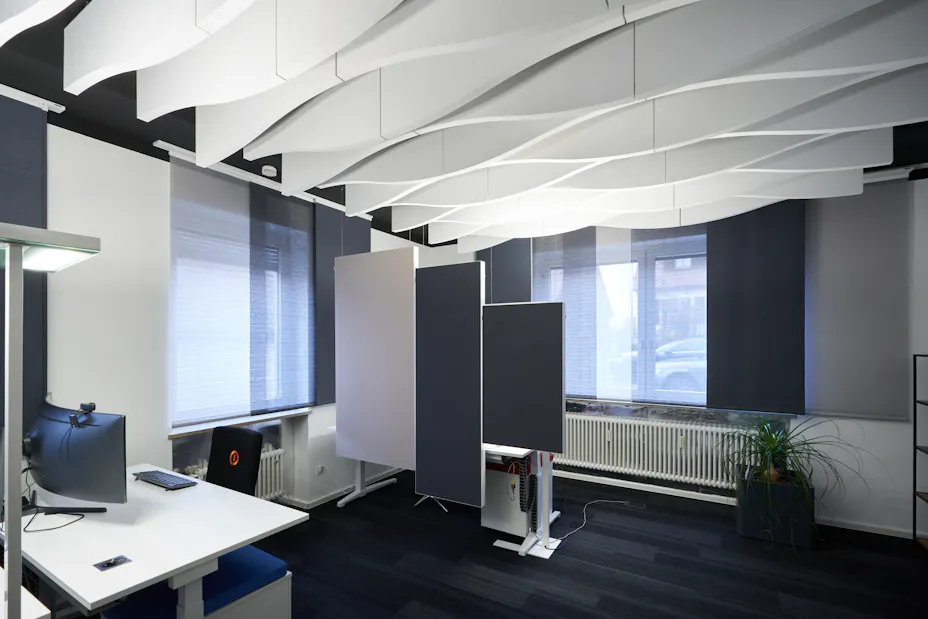

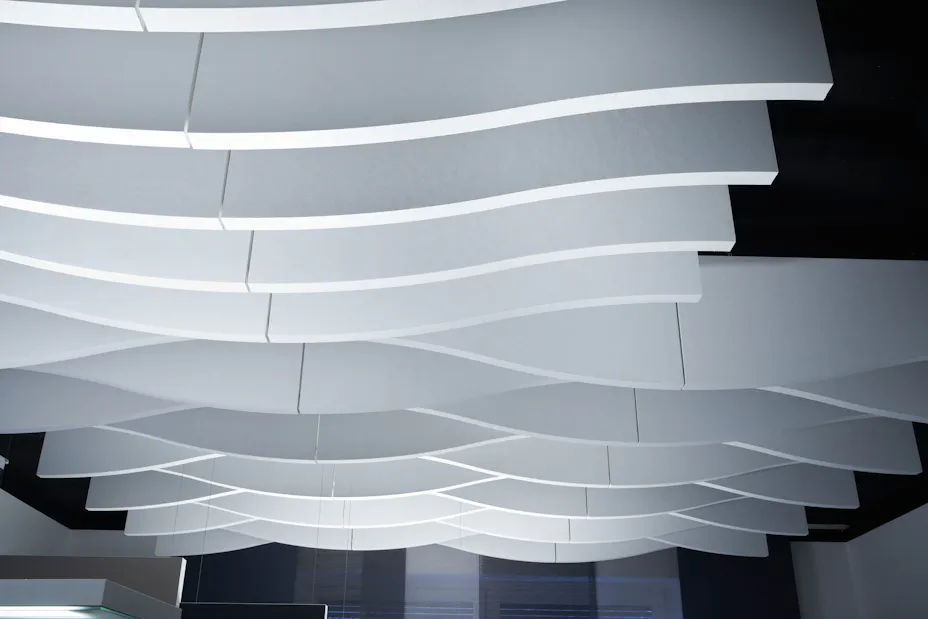

Create strong statement ceiling design using wave shapes in playful and mood creating patterns
Ideally suited for enhancing acoustics in thermal mass areas or where frequent and unhindered access to services is required
Use alone or in combination with an existing acoustic ceiling to enhance the sound absorption
Stone wool baffle
Surface: smooth, matt white fleece
Edge: matt white structured paint

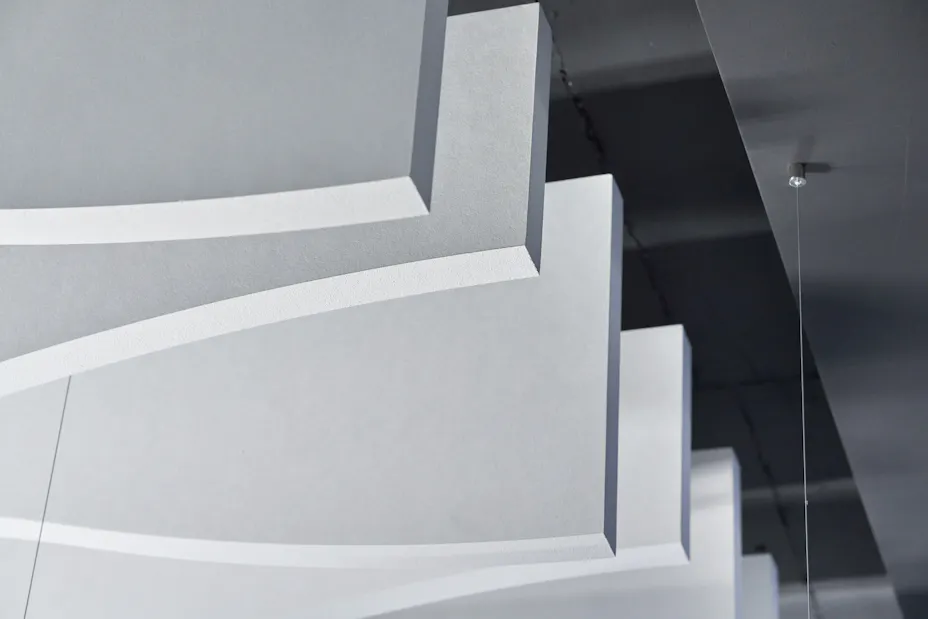

4 rectangular shapes and 3 modular wave shapes
Suspension points integrated in the baffle

Color

White

ColorWhite
Color GroupWhites
NCSNCS S 0500-N
Light reflection79

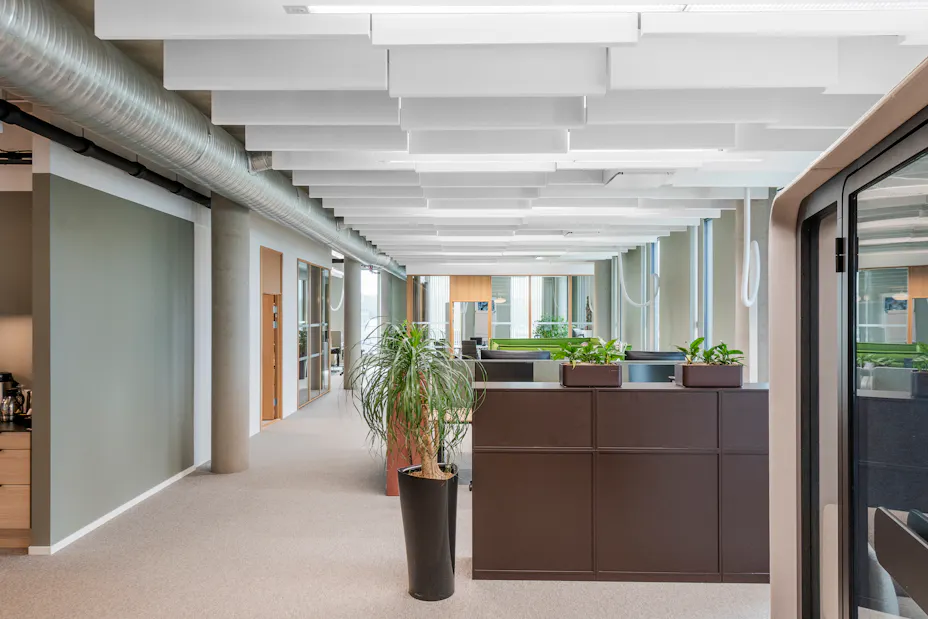

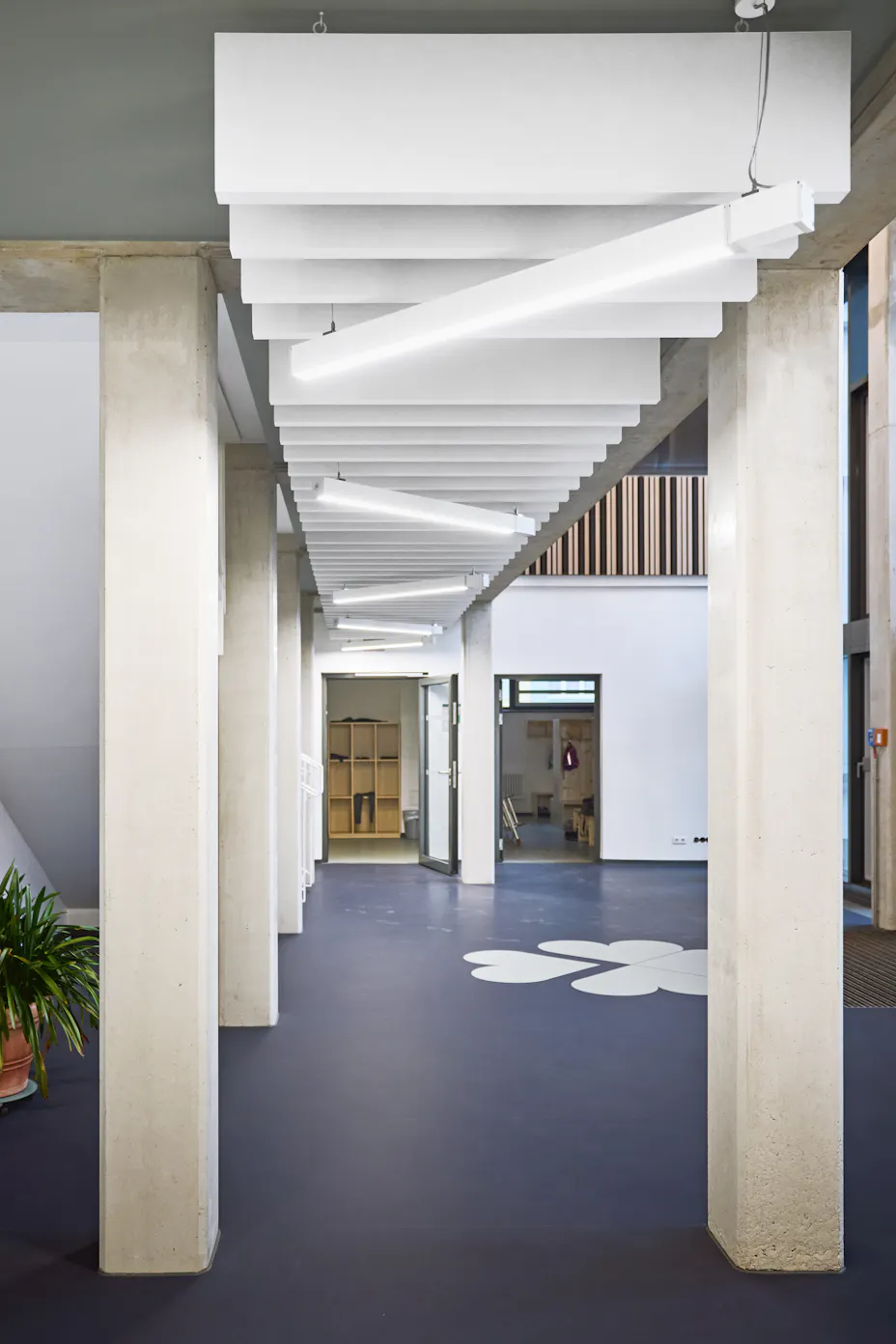

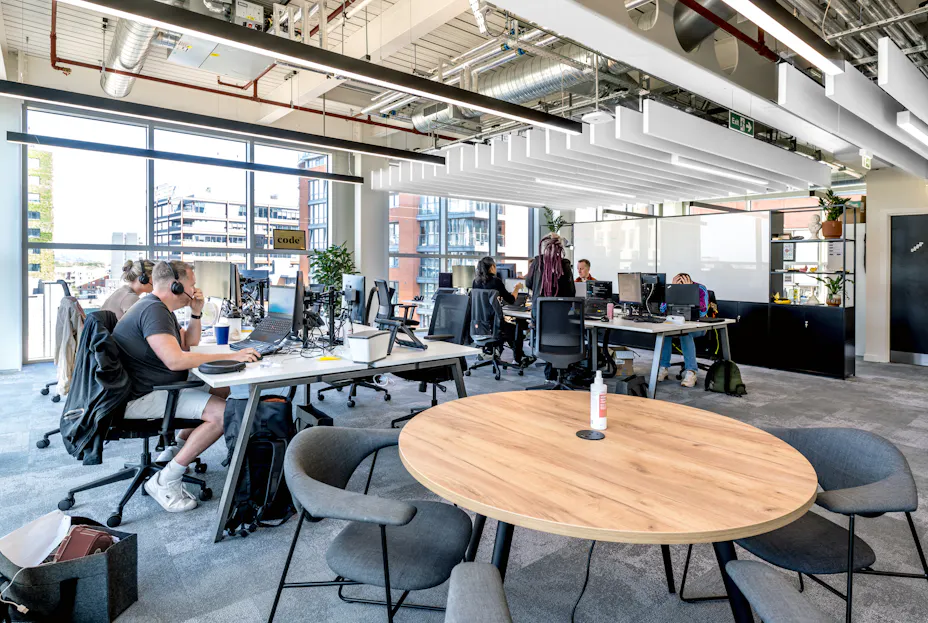

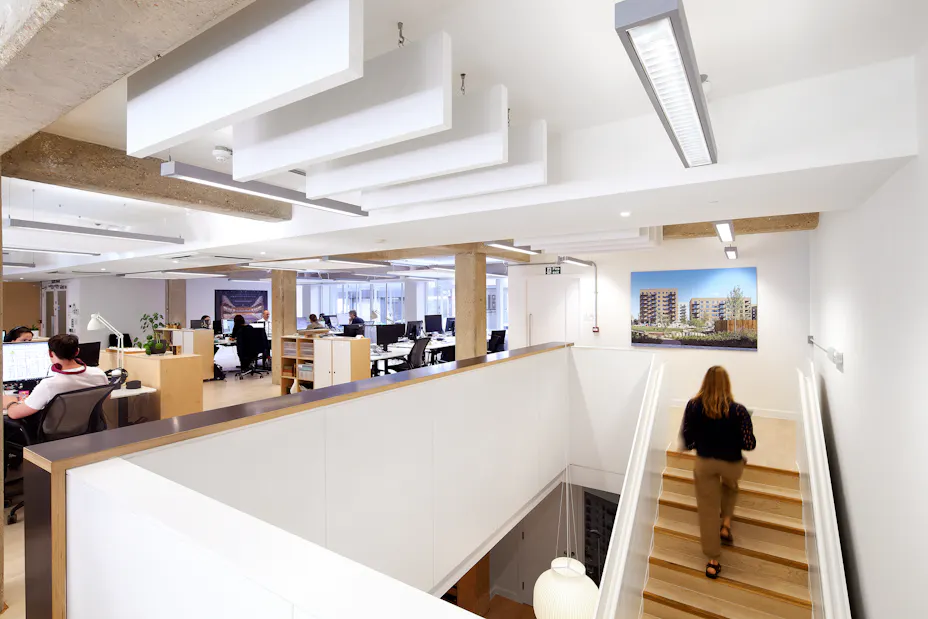

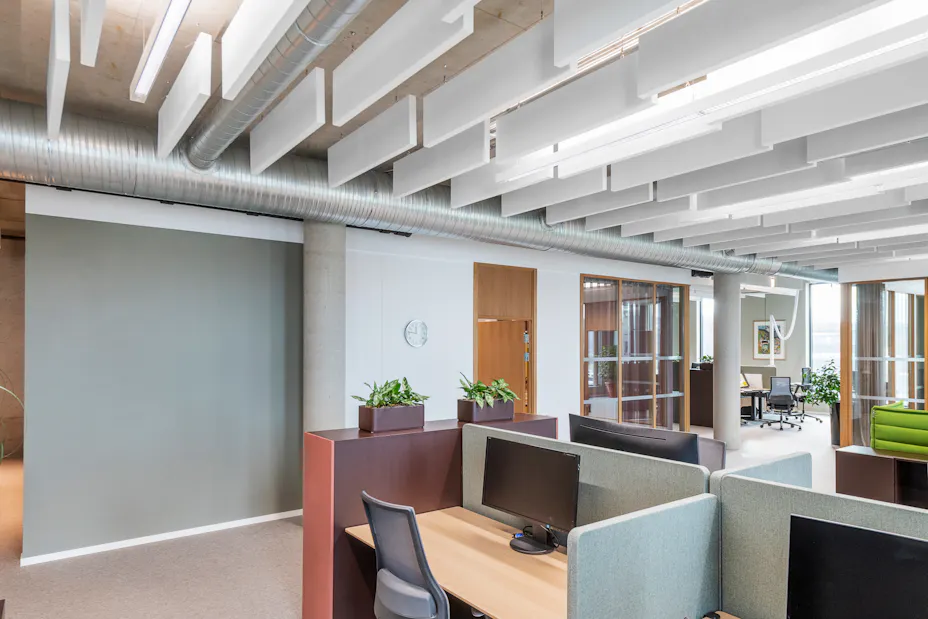

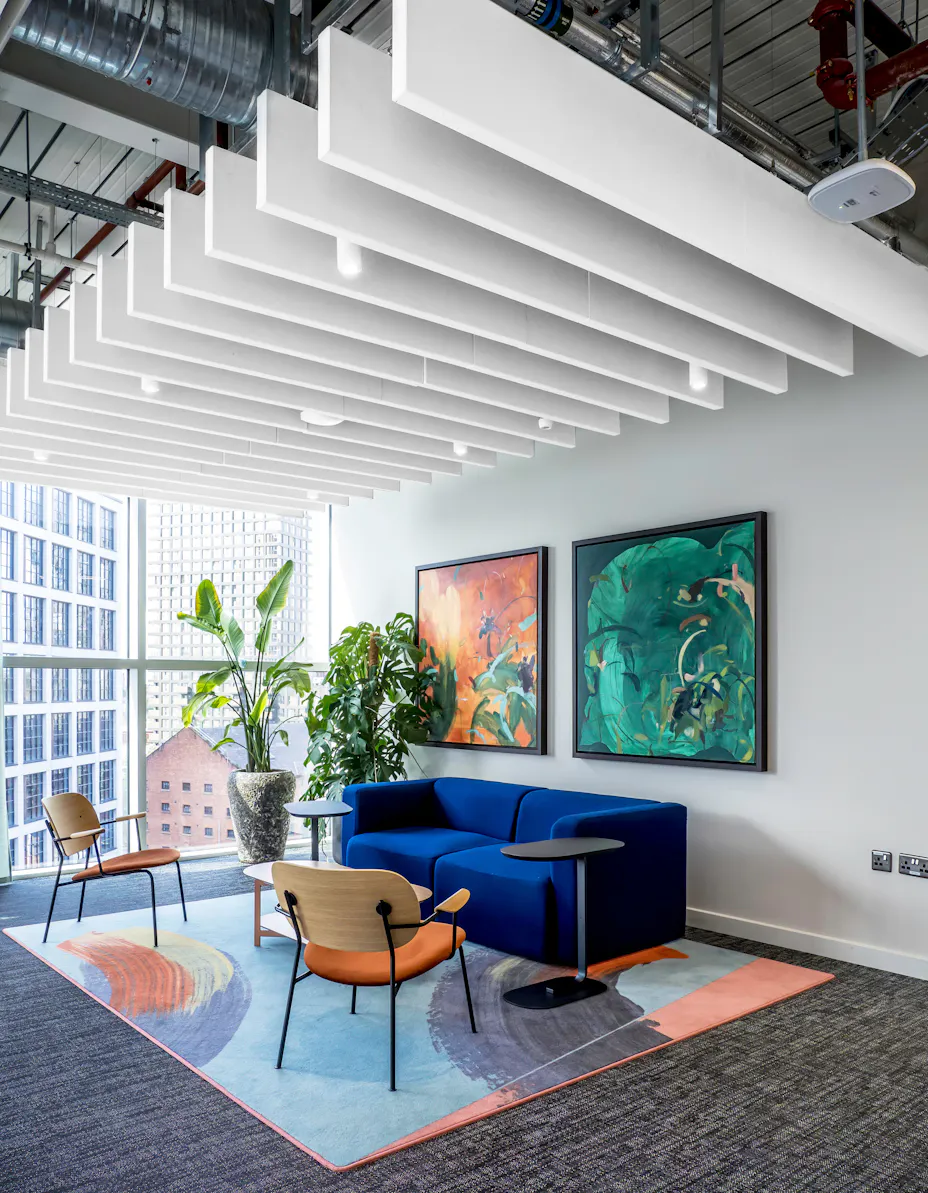

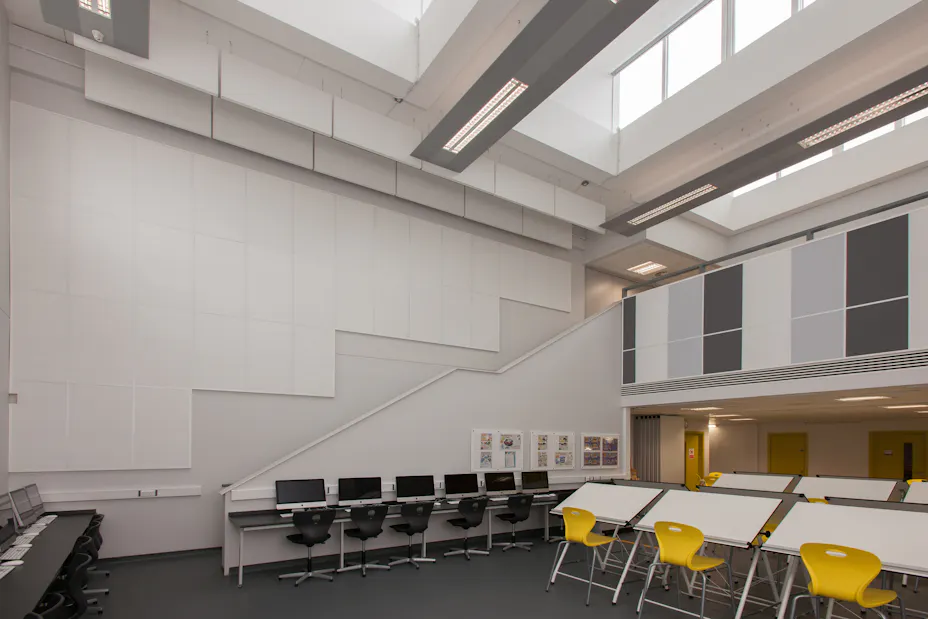

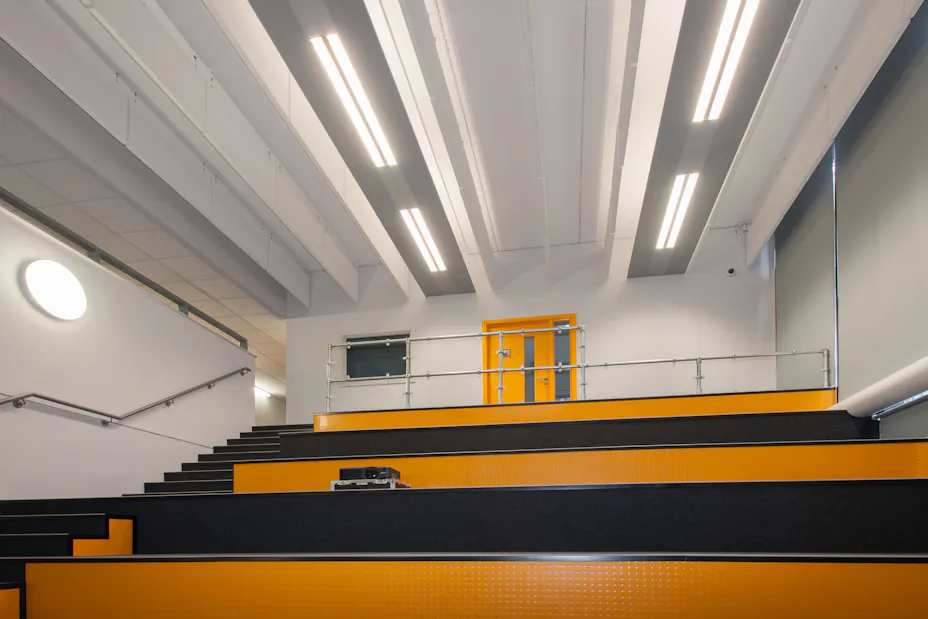

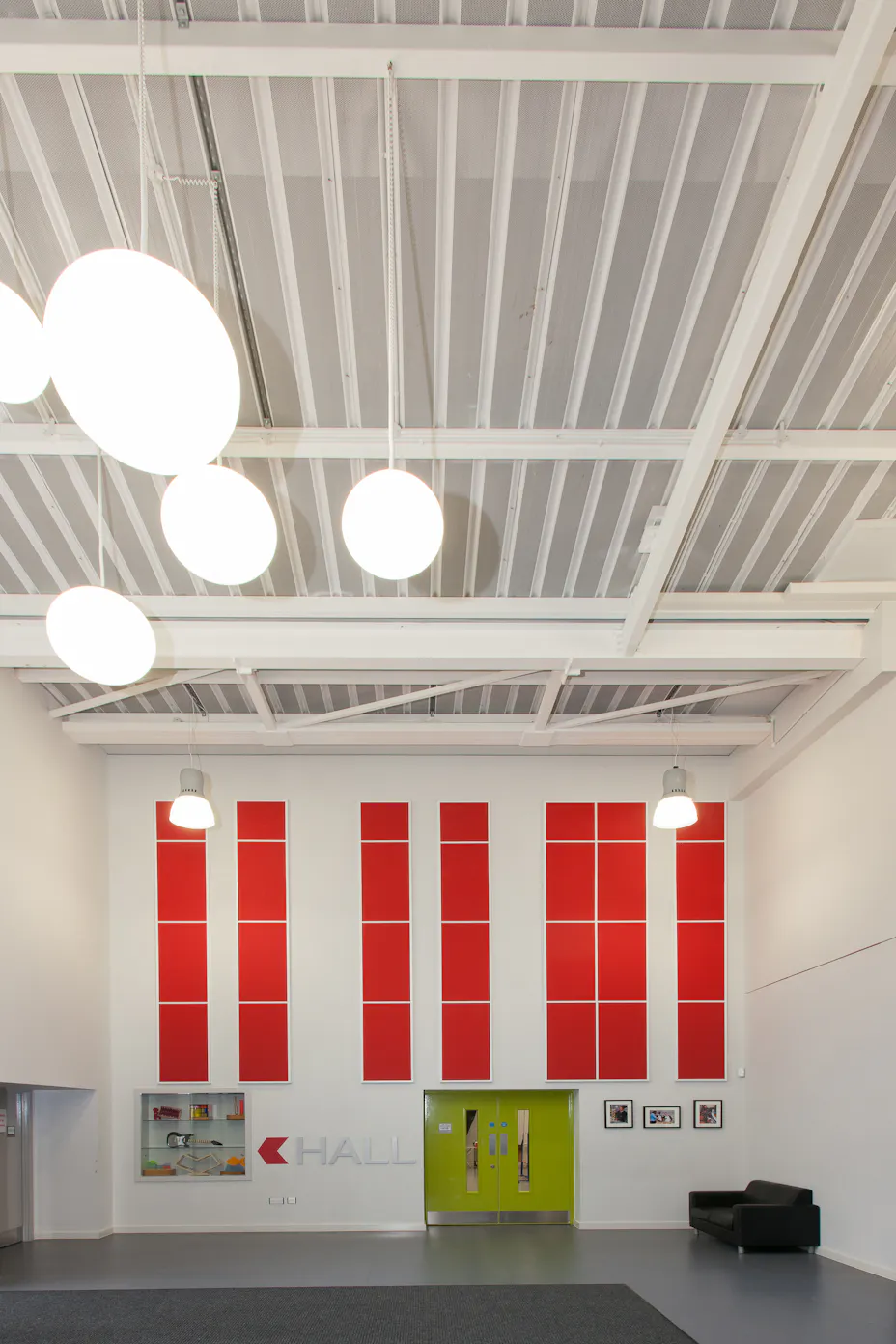

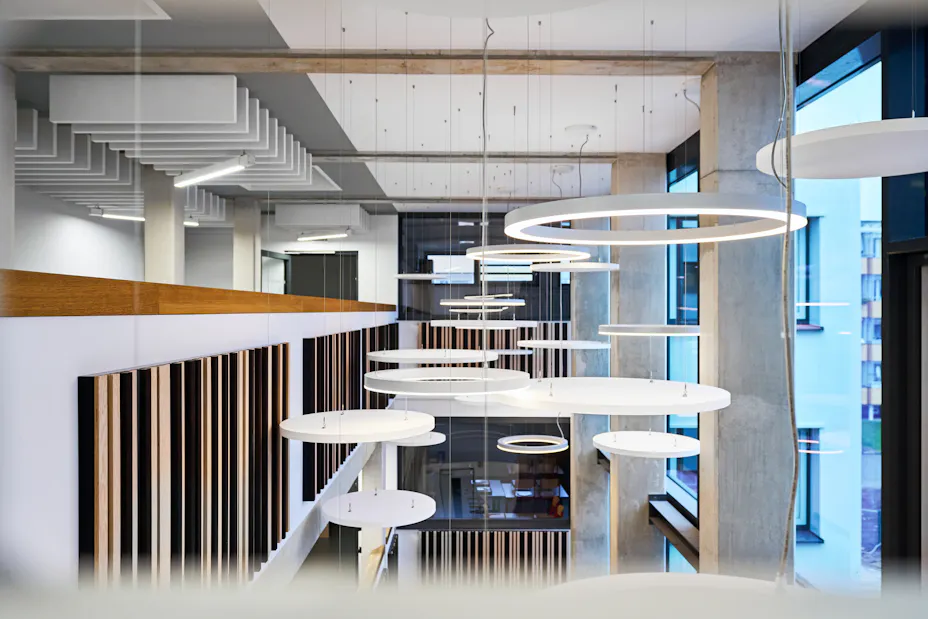

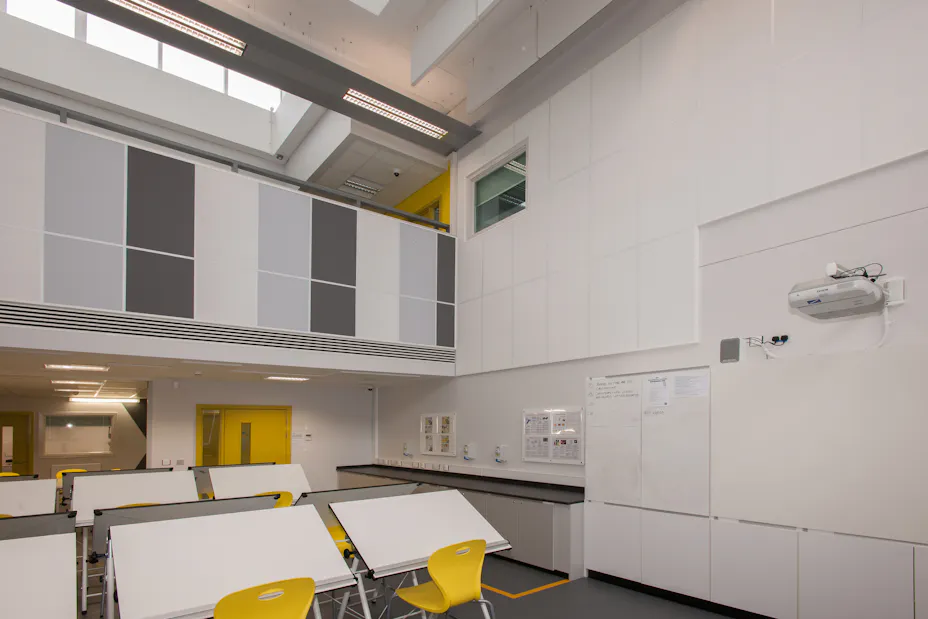

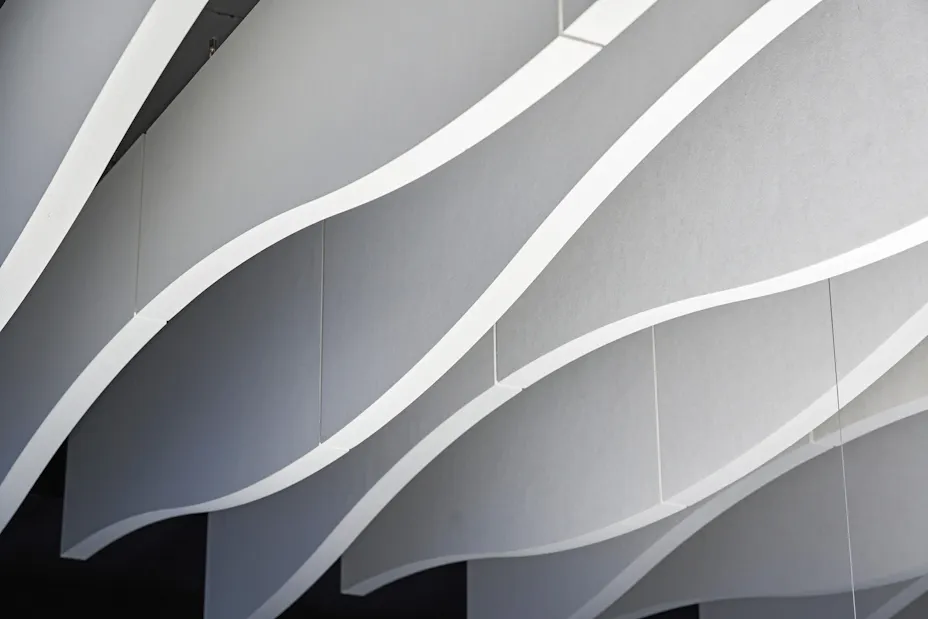

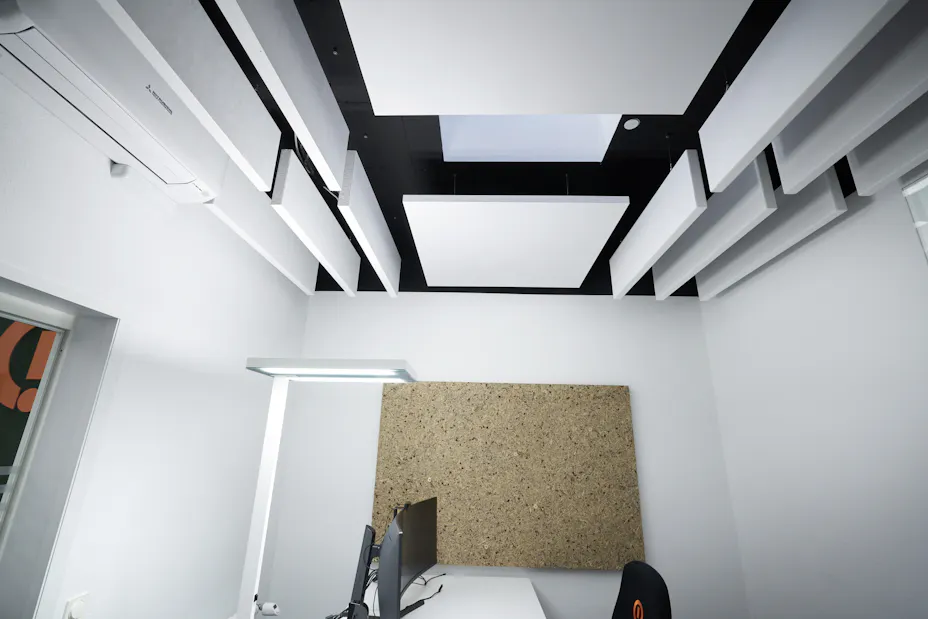

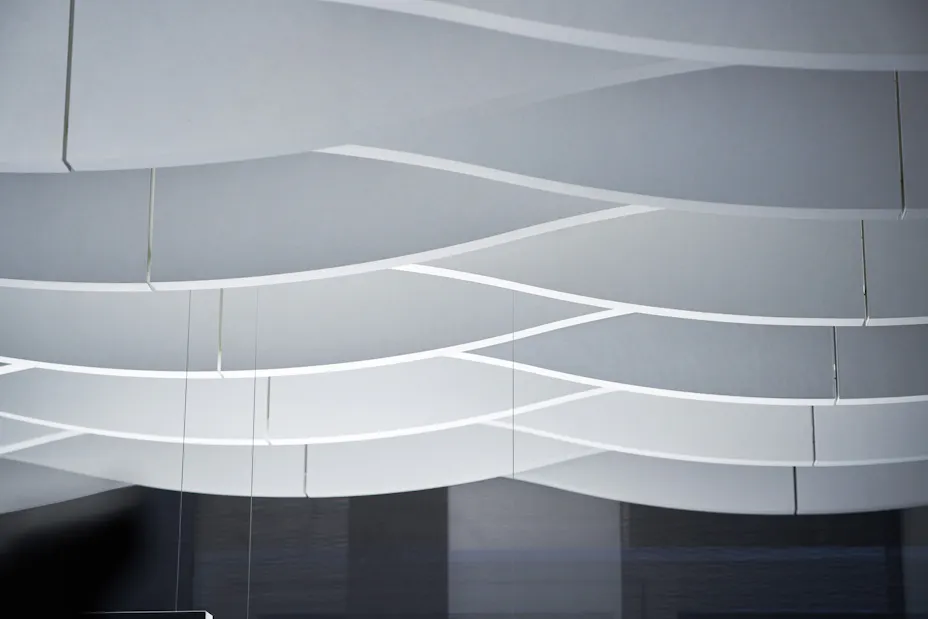

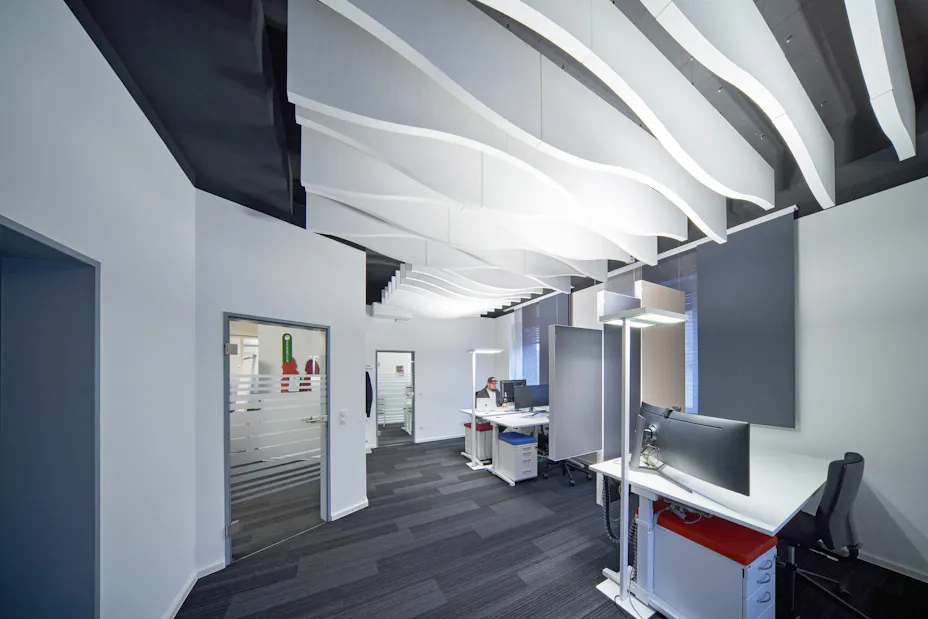

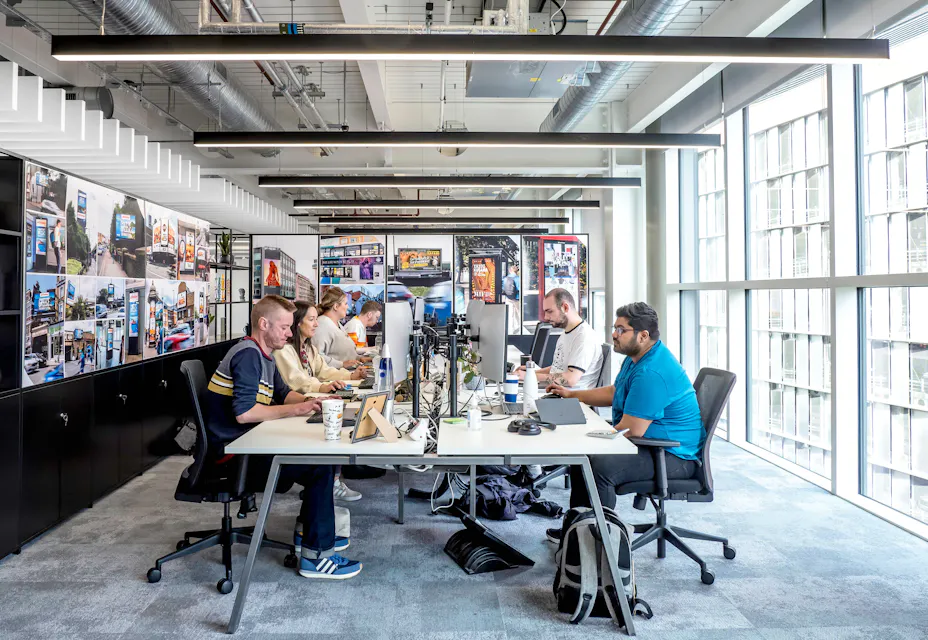

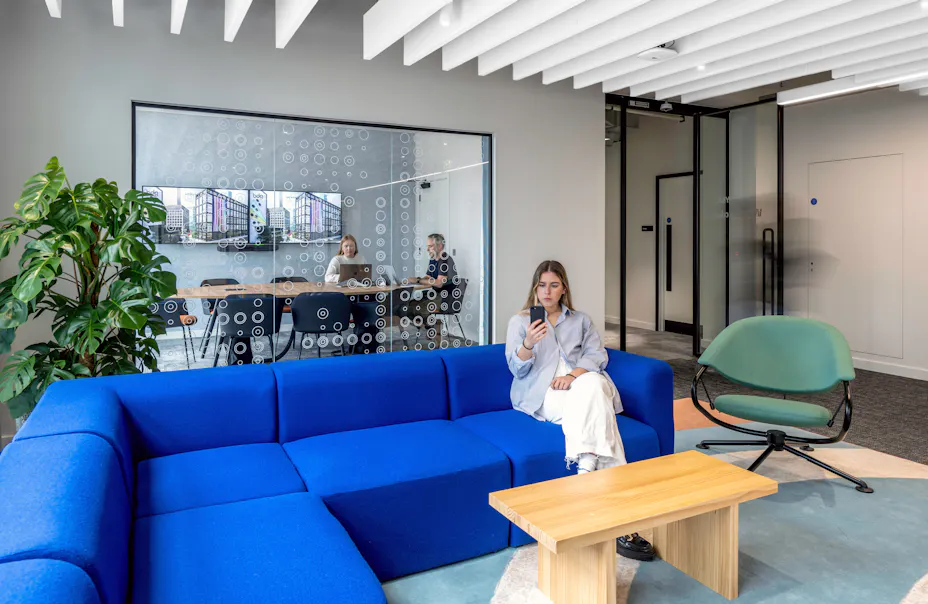

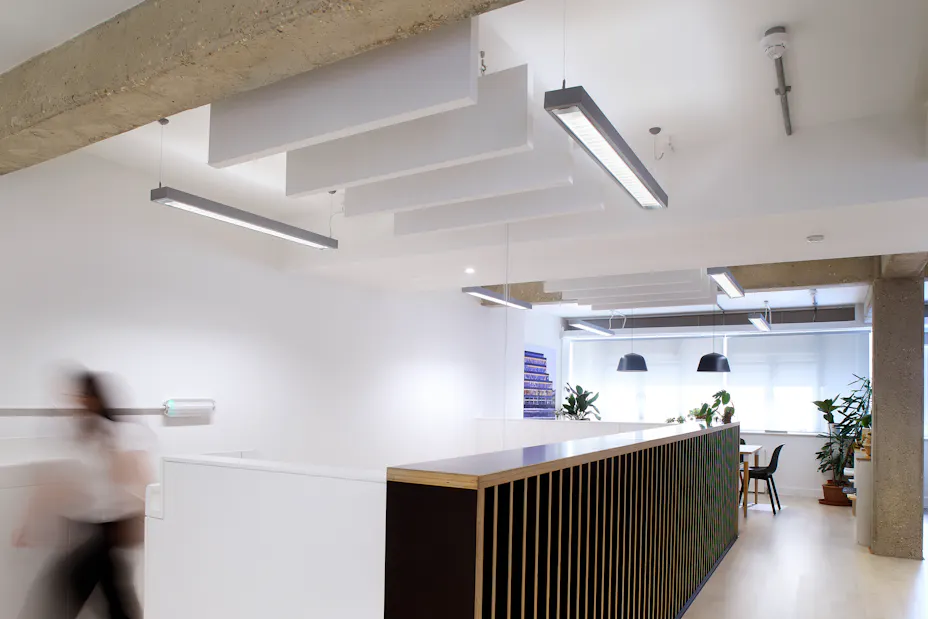

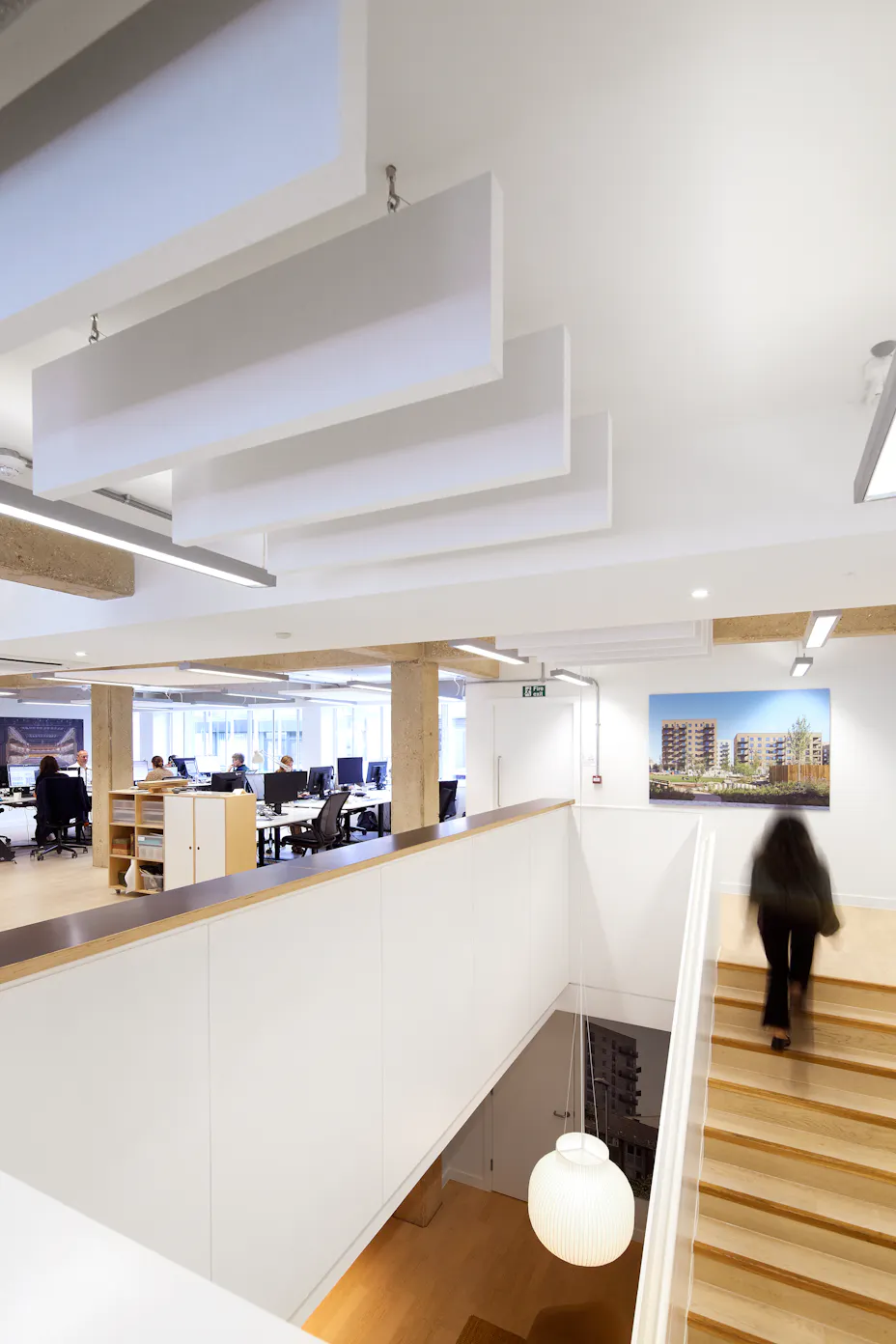

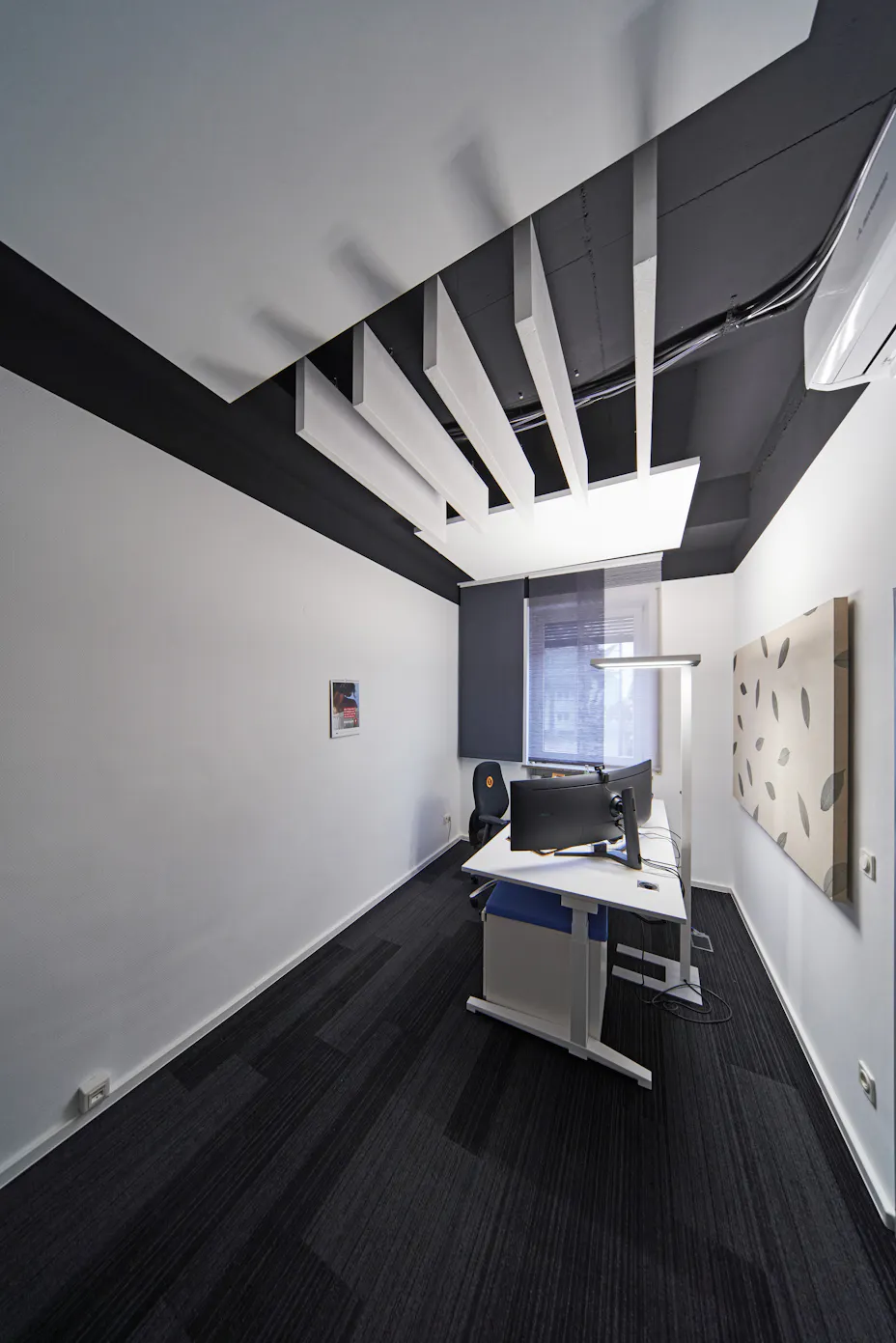

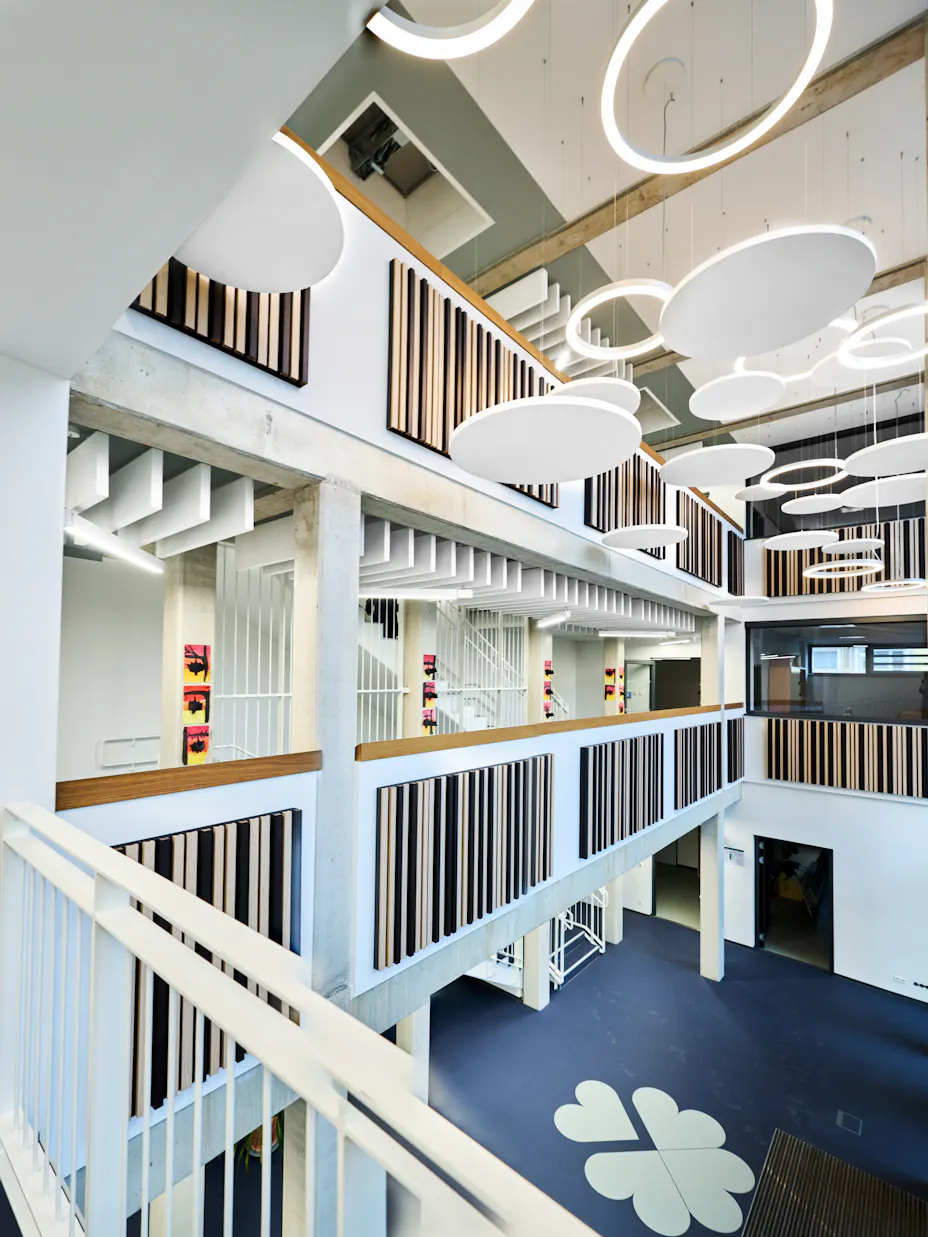

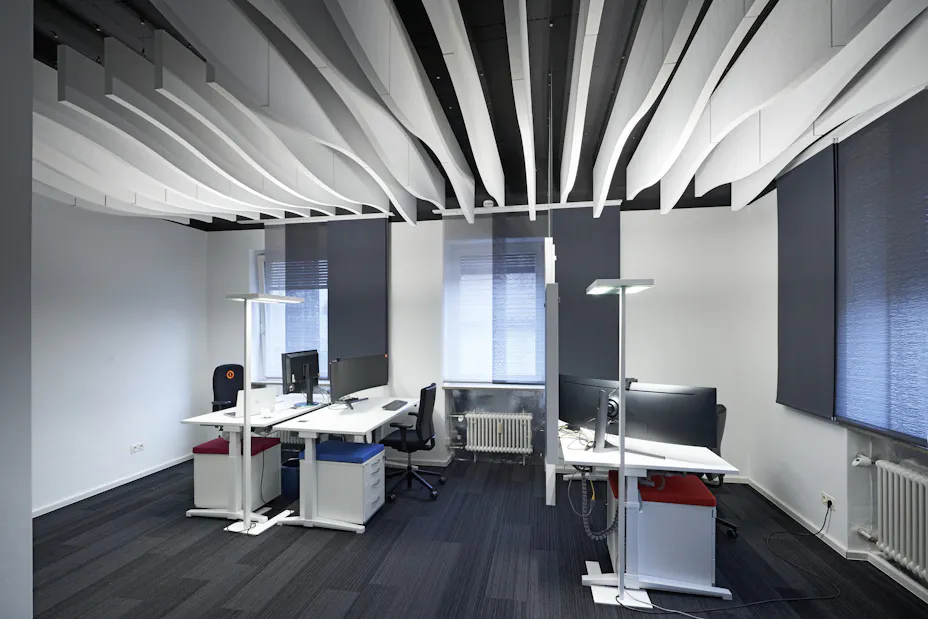

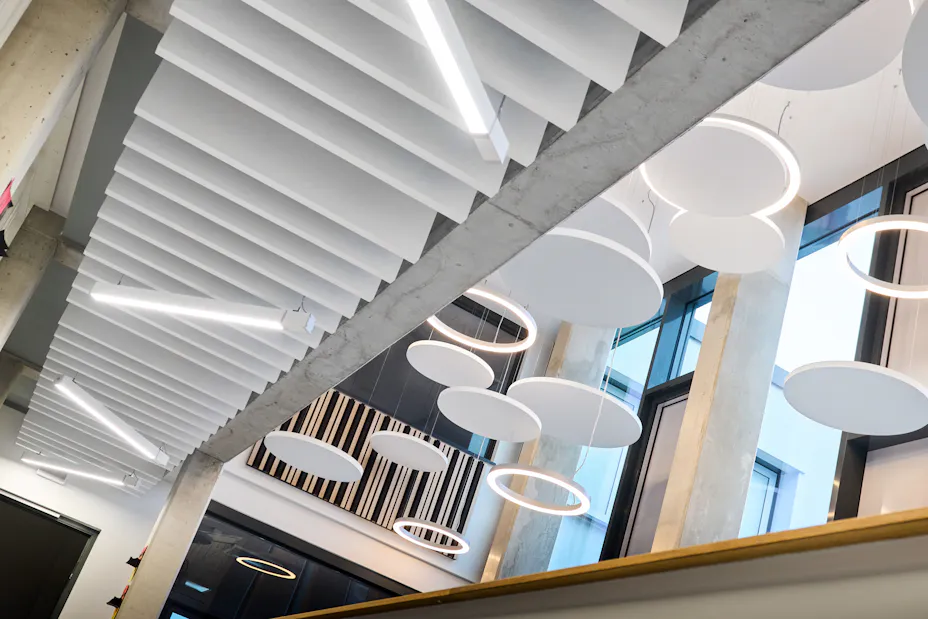

Case studies featuring Rockfon® Contour

1/21

Where to use

Office

Open Plan Office
Reception
Canteen

Education

Auditorium
Library

Retail

Boutiques
Convention Centre
Department Store
Shopping Centre
Showroom
Supermarket

Leisure

Auditorium / Concert Hall
Museum
Restaurant / Pub / Nightclub
Stadium

Healthcare

Canteen
Reception

Industry

Telecommunications

Back

Sound Absorption

Equivalent absorption area Aeq (m2/item)
Edge Dimensions Distance Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz
A 1200x150-300x50mm 830mm - 0.12 0.29 0.42 0.50 0.49 0.46
A 1200x300x50mm 830mm - 0.18 0.34 0.44 0.57 0.56 0.51
A 1200x300-450x50mm 830mm - 0.24 0.32 0.52 0.66 0.62 0.63
A 1200x450-600x50mm 830mm - 0.25 0.34 0.63 0.76 0.72 0.71
A 1200x600x50mm 830mm - 0.26 0.36 0.71 0.80 0.76 0.73
A 1800x300x50mm 830mm - 0.27 0.51 0.66 0.86 0.84 0.77
A 1800x600x50mm 830mm - 0.39 0.54 1.07 1.20 1.14 1.09

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve

Product Specifications

Reaction To Fire Reaction To Fire A1 (EN 13501-1)
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 79%
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Shape Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A Wave 1200 x 150-300 50 0.00 0 Rockfon® System Contour Baffle

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle Vertical free hanging acoustic baffle

Sound Absorption

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1200 x 300 50 0.00 0 Rockfon® System Contour Baffle

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle Vertical free hanging acoustic baffle

Sound Absorption

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Wave 1200 x 300-450 50 0.00 0 Rockfon® System Contour Baffle

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle Vertical free hanging acoustic baffle

Sound Absorption

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Wave 1200 x 450-600 50 0.00 0 Rockfon® System Contour Baffle

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle Vertical free hanging acoustic baffle

Sound Absorption

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1200 x 600 50 0.00 0 Rockfon® System Contour Baffle

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle Vertical free hanging acoustic baffle

Sound Absorption

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1800 x 300 50 0.00 0 Rockfon® System Contour Baffle

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle Vertical free hanging acoustic baffle

Sound Absorption

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1800 x 600 50 0.00 0 Rockfon® System Contour Baffle

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle Vertical free hanging acoustic baffle

Sound Absorption

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2

Contact us for special sizes, lead times and minimum quantities.
**Rockfon Contour should not be installed in areas subjected to direct wind load e.g. from fans or constant drafts.
